点击放大查看

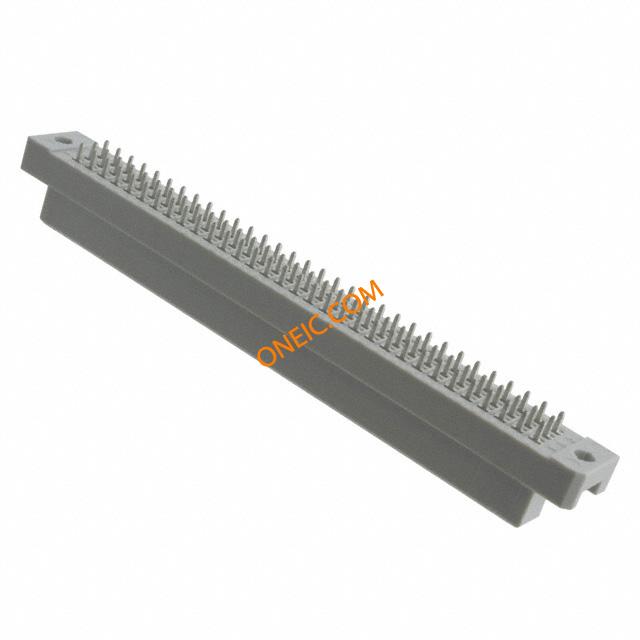

DIN-096CSC-S3L-HM
| 制造商 | 3M Company |
| 描述 | Conn DIN 41612 SKT 96 POS 2.54mm Solder ST Thru-Hole CONN DIN SOCKET 96POS VERT GOLD DIN 41612 Connectors 96P VERTICAL SOCKET DIN 41612 |
| 分类 |
商业参数
| 零件号别名 | 05111994298 80001223066 | 产品类别 | DIN 41612 Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 最大额定电流 | 3A | ||
机械参数
| 间距 | 2.54 mm | 包装方式 | Bulk |
| 端接方式 | Solder | 安装类型 | Through Hole |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold Over Palladium Nickel Over Nickel |
| 排数 | 3 | 触头材料 | Copper Alloy |
| 壳体材料 | Polyester | 端接样式 | Solder |
| 触点数 | 96 | 位数 | 96 |
| 绝缘材料 - 材质 | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | 接触镀层厚度 | 3µin (0.08µm) |
产品信息
| 类型 | DIN 41612 | 样式 | C |
| 系列 | DIN | 加载位置数 | All |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
