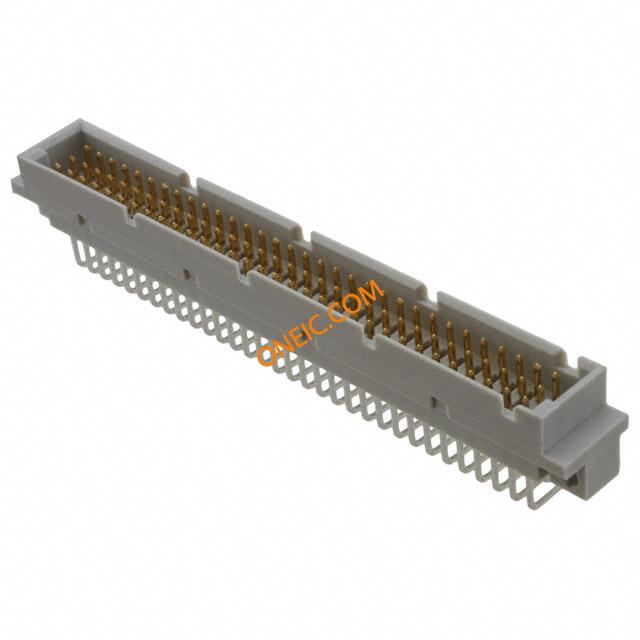

DIN-096CPC-SR1-HM
| 制造商 | 3M Company |
| 描述 | Conn DIN 41612 HDR 96 POS 2.54mm Solder RA Thru-Hole CONN DIN PLUG 96POS R/A GOLD DIN 41612, PLUG, 96POS BackPlaneConnector;96;3.0A@30degC;SolderTail;3.7in.;ULRecognized |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 最大额定电流 | 3A | ||
机械参数
| 间距 | 2.54 mm | 重量 | 0 |
| 包装方式 | Bulk | 端接方式 | Solder |
| 安装类型 | Through Hole | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold Over Nickel | 排数 | 3 |
| 触头材料 | :Copper Alloy | 触点数 | 96 |
| 位数 | 96 | 绝缘材料 - 材质 | Polybutylene Terephthalate (PBT), Glass Filled |
| 接触镀层厚度 | 3µin (0.08µm) | ||
产品信息
| 类型 | DIN 41612 | 样式 | C |
| 连接器性别 | :Plug | 系列 | :DIN 41612 |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
