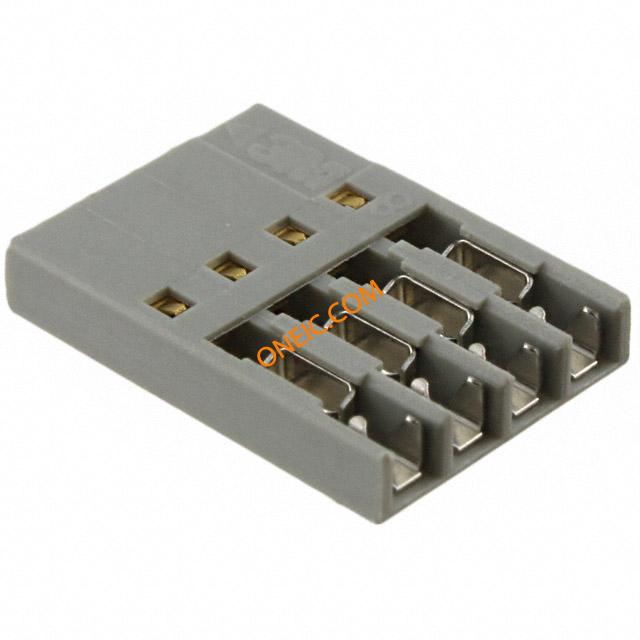

CHG-1004-001010-KCP

点击放大查看

CHG-1004-001010-KCP

制造商
3M Company
描述Conn IDC Connector SKT 4 POS 2.54mm Crimp ST Cable Mount .100" for .100" Pak 100 Wiremount, Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 4POS 28-26 AWG socket,wiremount,.1"pitch,GoldWipearea,26AND28AWG,4CONTACT
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

标准包装数量Bulk

合规参数

RoHSLead free / RoHS Compliant标准MIL-G-45204,QQ-N-290
认证机构cUL,ULRoHS合规（认证）Yes
材料阻燃等级UL94V-0

电气参数

最大额定电流1.5A

机械参数

颜色Gray间距2.54 mm
包装方式Bulk导线类型Discrete or Ribbon Cable
导线线规26-28 AWG端接方式Crimp
触头类型Female Socket安装类型Free Hanging (In-Line)
行程角度Straight连接器类型Receptacle
接触镀层Gold Over Nickel排数1
触头材料CopperAlloy总长度0.425"
主要材料Wiremount电缆端接方式IDC
插针孔直径0.1"触点数4
介电材料PBT绝缘直径0.054"
位数4接触镀层厚度30µin (0.76µm)

产品信息

类型IDC Connector连接器性别SKT
产品特性Closed End制造商全称CHGSeries

环境参数

工作温度-55to+105°C

相关型号

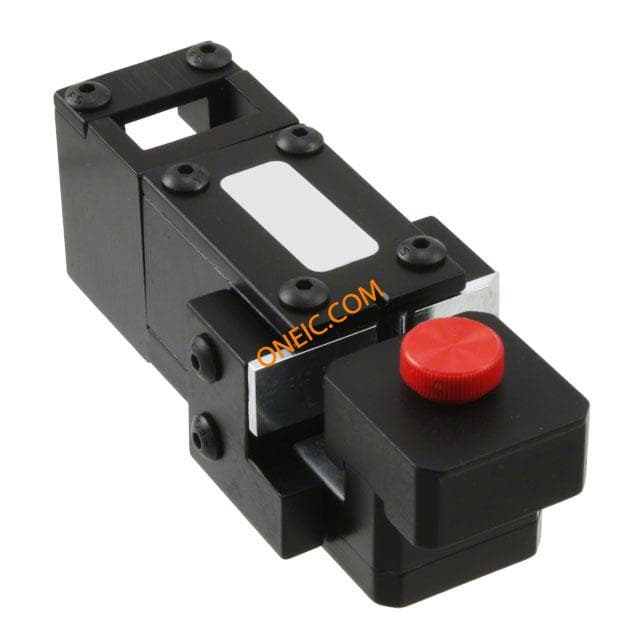

3624-41

3624-41

3M Electronic Solutions Division

Bench Top Tools CHG ASSEMBLY HEAD Assembly Heads, Applicators and Termination devices TOOL HEAD ASSY 28-22AWG 1&2ROW AssemblyHead

¥5370.0280
详情

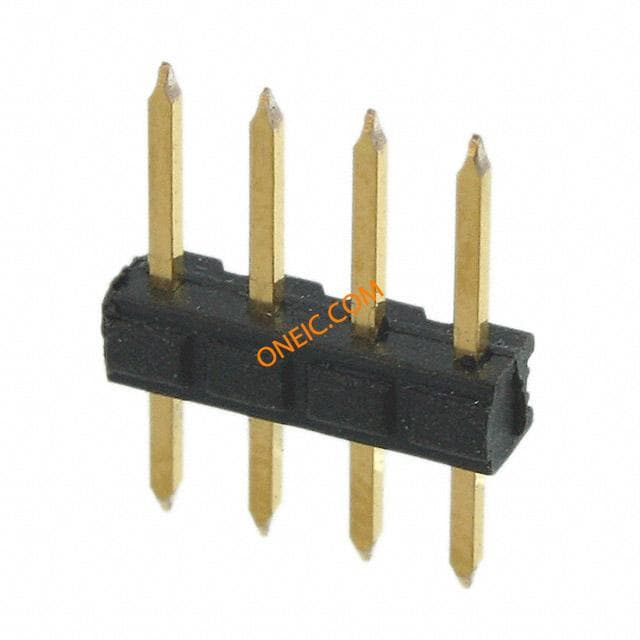

929647-09-04-EU

929647-09-04-EU

3m interconnect solutions

Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER 4POS STR .100" GOLD

¥1.0880
详情

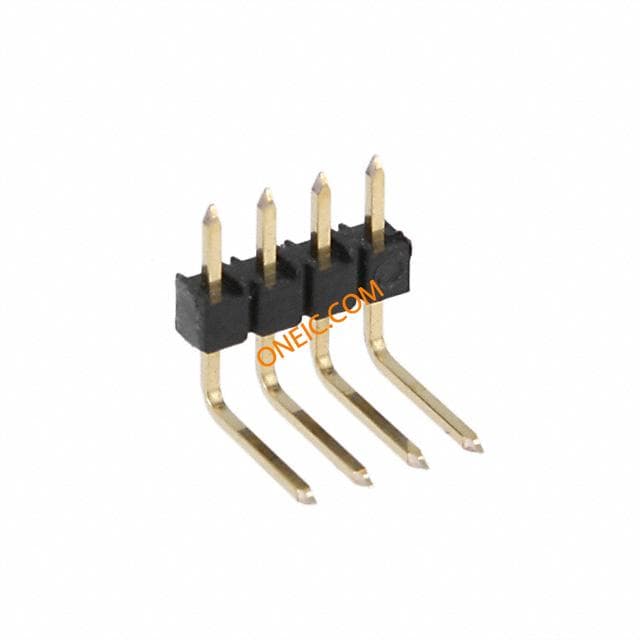

929550-01-04-I

929550-01-04-I

3m interconnect solutions

Conn Wire to Board HDR 4 POS 2.54mm Solder RA Thru-Hole .100", .295" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER .100 SNGL R/A 4POS

¥5.3115
详情
929500-01-04-RK

929500-01-04-RK

3m interconnect solutions

Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole .100", .295" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER .100 SNGL R/A 4POS Headers & Wire Housings .100/.295 4 PIN HDR RT ANG

¥1.7401
详情

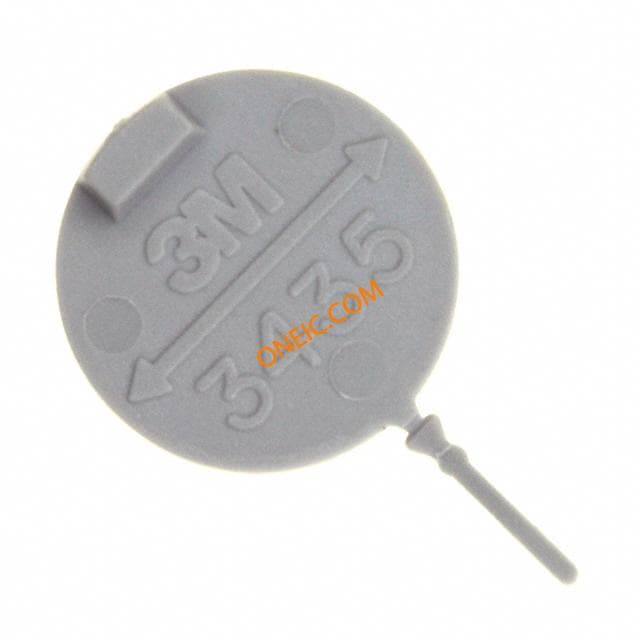

3435-0
