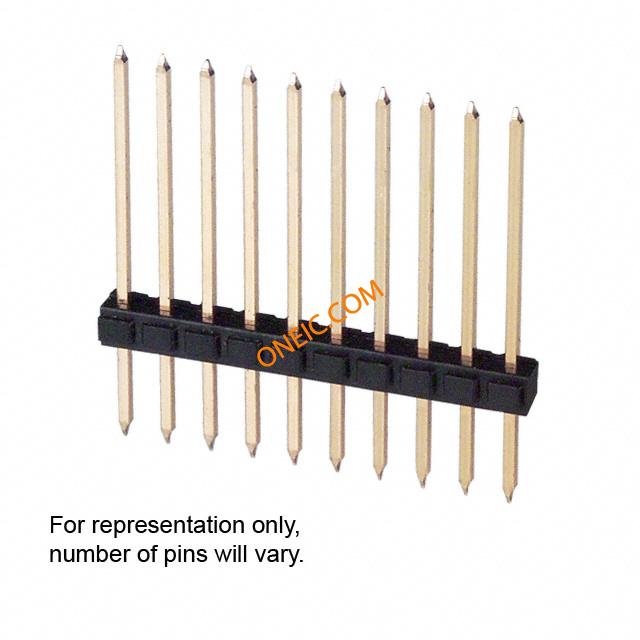

929647-05-04-I
| 制造商 | 3M Company |
| 描述 | 04 PS/1R/SRT/.235 .610/ALL 10AVE .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER .100 SNGL STR 4POS |
| 分类 |
商业参数
| 其他名称 | 929647-05-04 | 标准包装数量 | 1 |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded, Breakaway | 接触镀层 | Gold |
| 排数 | 1 | 位数 | 4 |
| 接触长度 - 配合 | 0.235" (5.97mm) | 接触镀层厚度 | 10µin (0.25µm) |
产品信息
| 加载位置数 | All | ||
文档与媒体
相关型号

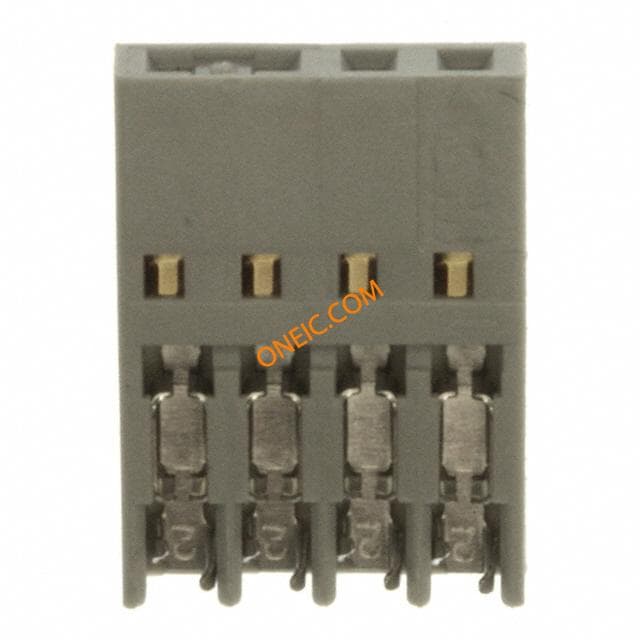

CHG-1004-001010-KEP
3m interconnect solutions
Conn IDC Connector SKT 4 POS 2.54mm Crimp ST Cable Mount .100" for .100" Pak 100 Wiremount, Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 4POS 24-22 AWG socket; wiremount; .1" pitch; Gold Wipe area; 22 AND 24 AWG; 4 CONTACT Headers & Wire Housings 4P 1 ROW IDC SOCKET 22 AND 24 AWG socket,wiremount,.1"pitch,GoldWipearea,22AND24AWG,4CONTACT

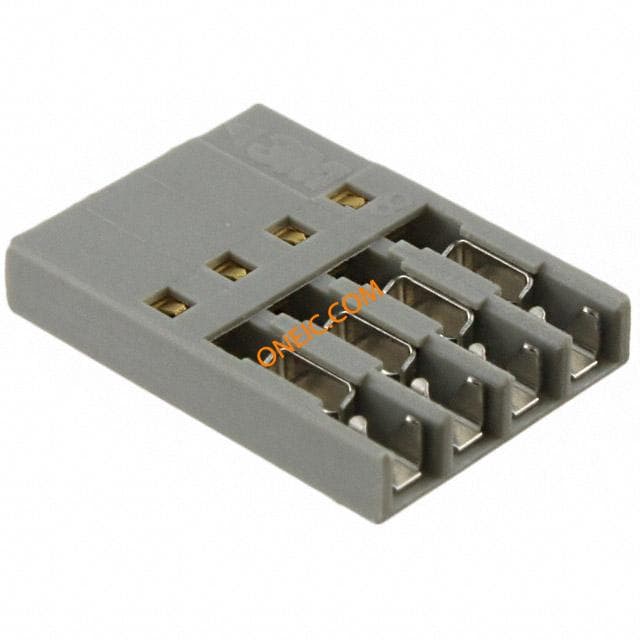

CHG-1004-001010-KCP
