点击放大查看

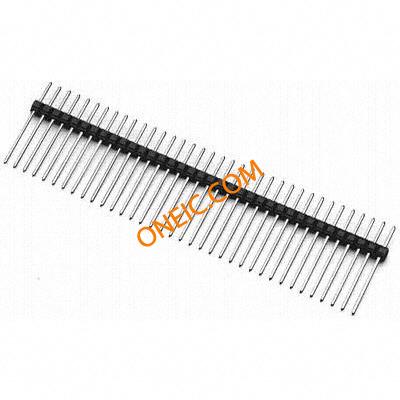

929647-09-36-EU
| 制造商 | 3M Company |
| 描述 | Conn Unshrouded Header HDR 36 POS 2.54mm Solder ST Thru-Hole .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER 36POS STR .100" GOLD Headers & Wire Housings FULL STICK HDR/36POS |
| 分类 |
商业参数
| 零件号别名 | 05111166385 80000907719 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 300 |
合规参数
| RoHS | Lead free / RoHS Compliant | RoHS合规（认证） | Yes |
电气参数
| 额定电压 | 1.5 kV | 最大额定电流 | 2.5 A |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded, Breakaway | 接触镀层 | Gold Over Nickel |
| 排数 | 1 | 触头材料 | Copper Alloy |
| 壳体材料 | Polycyclohexylenedimethylene Terephthalate (PCT) | 第一触头极性 | Pin (Male) |
| 触点数 | 36 | 位数 | 36 |
| 接触长度 - 配合 | 0.235" (5.97mm) | 接触镀层厚度 | 10µin (0.25µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | 929 | 产品子类型 | Headers |
| 加载位置数 | All | ||
