N3432-6002RB

点击放大查看

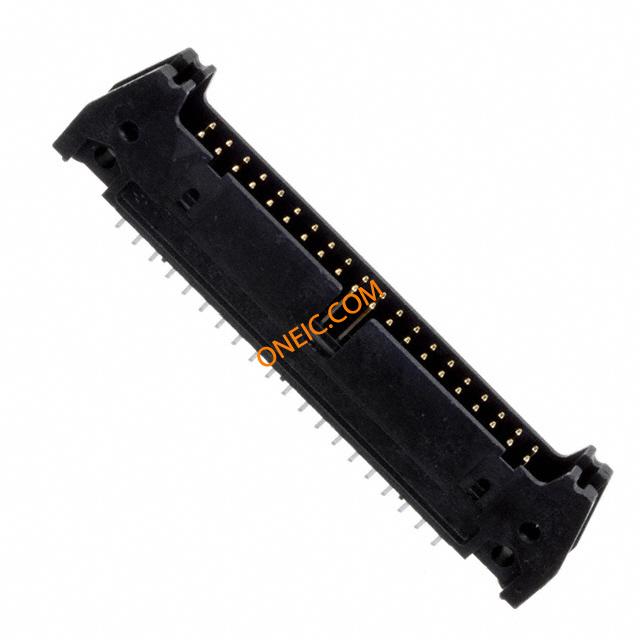

N3432-6002RB

制造商
3M Company
描述Headers & Wire Housings BOARDMT HDR 40P NO LATCH/EJECTOR .100" × .100" Latch/Ejector, Straight and Right Angle PROTECT HEADER STRGT 40 CONTACT 3M 3000 Series 2.54mm Pitch 40 Way 2 Row Straight PCB Header, Solder Termination, 2A Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Header,4-Wall;CopperAlloy;200uin.60/40Tin/Lead;1;Black;0.68in.;40 Pin header DIN 41651 40P, N3432-6002RB, 3M 3M 3000 系列 2.54mm节距 40路 (2排) 直 PCB 针座, 焊接端接, 2A , 通孔
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名05111165077 80400027886产品类别Headers & Wire Housings
标准包装数量200工厂包装数量100

合规参数

RoHSRoHS CompliantRoHS合规（认证）Yes
材料阻燃等级UL 94 V-0

电气参数

电容48.26测试电压0.5
极数40最大额定电流1 A

机械参数

颜色Black深度8.6 mm
间距2.54 mm高度17.3 mm
包装方式Tray壳体颜色66.2
方向直排间距0.100" (2.54mm)
端接方式Solder触点形式Male Pin
触头类型Male Pin引脚间距0.100" (2.54mm)
外壳颜色Black安装类型Straight
连接器类型Header, Shrouded接触镀层Gold
安装样式Through Hole排数2
触头材料Copper Alloy壳体材料Polyester
总长度70.23 mm端接排数焊接
端接样式Solder板面高度0.240" (6.10mm)
触点数40位数40
第一连接器极性Male接触长度 - 配合0.240" (6.10mm)
接触镀层厚度30µin (0.76µm)每排/每行位置数All

产品信息

类型Ejector Socket连接器性别HDR
系列3000覆盖范围覆盖
CAD图纸3D CAD Model产品子类型Headers - Latch / Eject
放大器类型70.1输出配置Through Hole
加载位置数All

环境参数

工作温度-55C to 105C

文档与媒体

在线文档
mediawebserver.dyn?6666660Zjcf6lVs6EVs666UDLCOrrrrQ-
