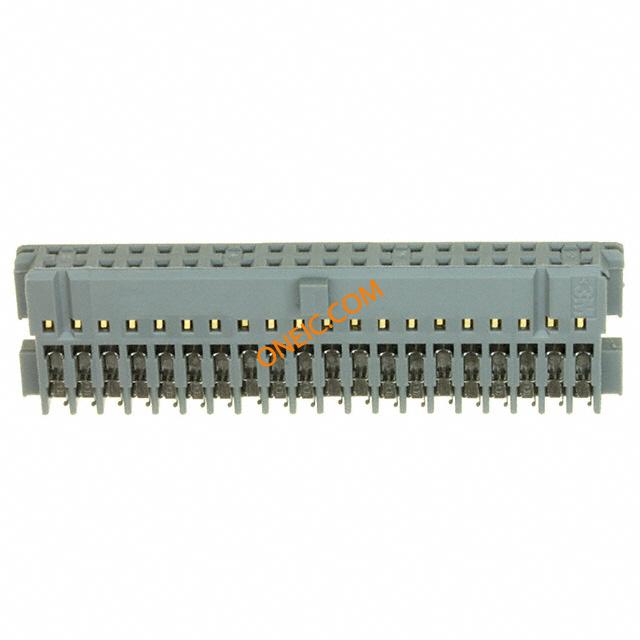

CHG-2040-J01010-KCP

制造商	3M Company
描述	Headers & Wire Housings 40P PLRZD IDC SOCKET 26 AND 28 AWG .100" Ã .100" Polarized Wiremount, 2 row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 40POS 28-26 AWG Conn;Rect;Socket;Wiremnt;0.1inPitch;40Pos;2Row;28-26AWG;IDC;CHGSer;Polar
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

100

合规参数

RoHS	Lead free / RoHS Compliant	标准	DIN41612
认证机构	cUL,UL	RoHS合规（认证）	Yes
材料阻燃等级	UL94V-0

电气参数

最大额定电流

1.5A

机械参数

颜色	Gray	间距	0.100" (2.54mm)
包装方式	Bulk	导线类型	Discrete or Ribbon Cable
导线线规	26-28 AWG	排间距	0.100" (2.54mm)
端接方式	IDC	触头类型	Female Socket
安装类型	Free Hanging (In-Line)	行程角度	Straight
连接器类型	Receptacle	接触镀层	Gold
排数	2	触头材料	CopperAlloy
总长度	2.18"	主要材料	Rectangular
电缆端接方式	IDC	插针孔直径	0.1"
触点数	40	介电材料	PBT
绝缘直径	0.054"	位数	40
接触镀层厚度	30µin (0.76µm)

产品信息

类型	Socket,Wiremount	产品特性	Closed End, Polarizing Key
制造商全称	CHGSeries

环境参数

工作温度

-55to+105°C
