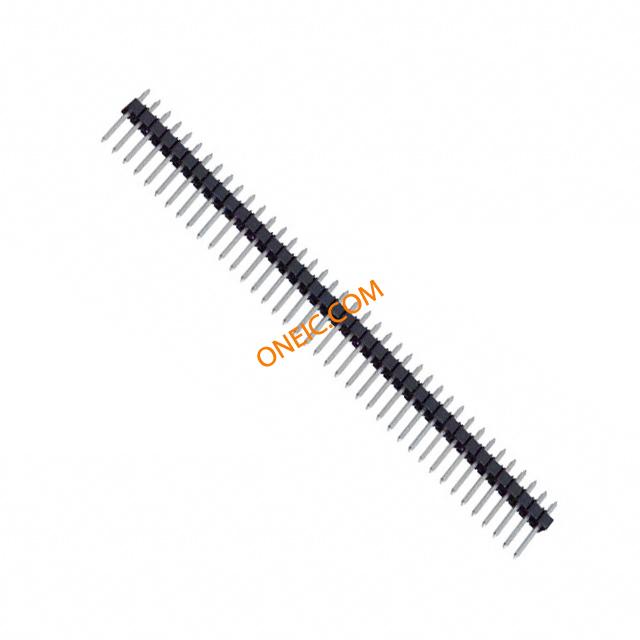

929400-01-36

点击放大查看

929400-01-36

制造商
3M Company
描述Headers & Wire Housings 36P STRT 1 ROW TIN .100", .295" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER .100 SNGL STR 36POS Header; Pin Strip; 36; Flange; 4-40; Copper Alloy; 2.5 A; Black Insulation Header;PinStrip;36;Flange;4-40;CopperAlloy;2.5A;BlackInsulation 3M 929 系列 2.54mm节距 36路 (1排) 直 引脚管座, 焊接端接, 2.5A , 通孔
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名05400780333 80620006447产品类别Headers & Wire Housings
标准包装数量100工厂包装数量100

合规参数

RoHSContains lead / RoHS non-compliant认证机构cUL,UL
RoHS合规（认证）No材料阻燃等级UL94V-0

电气参数

最大额定电流2.5A绝缘电阻>5x109Ohms@500VDC

机械参数

颜色Black间距0.100" (2.54mm)
包装方式Bulk方向直
端接方式Solder螺纹尺寸4-40
触头类型Male Pin引脚长度（针脚）0.295"
尾部长度0.135in.安装类型Through Hole
行程角度Straight连接器类型Header, Unshrouded, Breakable
接触镀层Tin-Lead安装样式Flange
排数1端子样式PrintedCircuitBoard
触头材料CopperAlloy壳体材料GlassFilledPolyester
总长度3.6"主要材料PinStrip
端接排数焊接插针孔直径0.1"
端接样式Through Hole触点数36
绝缘直径1500V(RMS)位数36
绝缘材料 - 材质GlassFilledPolyester接触长度 - 配合0.295" (7.49mm)
接触镀层厚度100µin (2.54µm)

产品信息

类型Pin Strip系列929
覆盖范围无覆盖产品特性Stackable
制造商全称929Series产品子类型Headers
加载位置数All

环境参数

工作温度-40to+105°C

相关型号

CHG-1036-001010-KCP

CHG-1036-001010-KCP

3m interconnect solutions

Conn IDC Connector SKT 36 POS 2.54mm Crimp ST Cable Mount .100" for .100" Pak 100 Wiremount, Pitch Notched Flat Cable or Discrete Wire CONN RCPT IDC 36POS 26-28AWG Headers & Wire Housings 36/1R/WM SKT/.100/ STR/28G/30 G

¥29.9200
详情
929974-01-36

929974-01-36

3m interconnect solutions

Conn Socket Strip SKT 36 POS 2.54mm Solder ST Thru-Hole CONN RECEPT .100 SNGL STR 36POS Socket; Boardmount; 36; Copper Alloy; 100 uin. 90/10 Tin/Lead; 100 uin. Nickel BOARD-BOARD CONN, SOCKET, 36WAY, 1ROW Socket;Boardmount;36;.100",Straight,SolderTail,tin-leadplating 3M 929 系列 36路 直 2.54mm节距 通孔 印刷电路板插座, 板安装

¥9.0600
详情
929974-01-36-RK

929974-01-36-RK

3m interconnect solutions

Conn Socket Strip SKT 36 POS 2.54mm Solder ST Thru-Hole .100" and .100" × .100" Straight, Solder Tails, 1 row (1-40 contacts) or 2 row (2-80 contacts) CONN RECEPT .100 SNGL STR 36POS Headers & Wire Housings BOARDMOUNT SOCKET SOCKET, THT, PCB, 36WAY 3M(TM)BOARDMOUNTSOCKET,929SERIES,929974-01-36-RK 3M 929 系列 36路 直 2.54mm节距 通孔 印刷电路板插座, 板安装

¥9.0600
详情
100810

100810

3m interconnect solutions

100810SCC1000SERIES8X10STATICSHIELDINGBAG100EACH Anti-Static Control Products 8X10 pkg./100 Anti-Static Control Products 8X10" pkg./100 BAG STATIC METL-IN 8X10" 1=1 BAG SCC 1000 Static Shield Bag/Metal-IN (Size 8 x 10) ANTI-STATIC STORAGE BAGS SCC1000StaticShieldBag/Metal-IN(Size8x10) Protection bag; ESD version; metallised, open; W:203mm; L:254mm

¥83.0280
详情
暂无图片

929870-01-36-RA

3M Electronic Solutions Division

Headers & Wire Housings 36P BRD MNT SKT GOLD 1 ROW 10MICRO AU .100" Low Profile, Straight, Solder Tails CONN RCPT 36POS STR .100" GOL

¥23.1880
详情
929850-01-36-RA

929850-01-36-RA

3M Electronic Solutions Division

Headers & Wire Housings FULL STICK HDR/36POS .100" and .100" × .100" Straight, Solder Tails, 1 row (1-40 contacts) or 2 row (2-80 contacts) CONN RECEPT .100 SNGL STR 36POS Series:929 Socket;Boardmount;36;.100",Straight,SolderTail,goldplating

¥9.0600
详情
929850-01-36-10

929850-01-36-10

3M Electronic Solutions Division

Headers & Wire Housings 36P 1ROW STRT SOCKET CONN RECEPT .100 SNGL STR 36POS Socket; Boardmount; 36; Copper Alloy; 100 uin. 90/10 Tin/Lead; 100 uin. Nickel BOARD-BOARD CONN, SOCKET, 36WAY, 1ROW Socket;Boardmount;36;.100",Straight,SolderTail,goldplating 3M 929 系列 36路 直 2.54mm节距 通孔 印刷电路板插座, 板安装

¥9.0600
详情
暂无图片

929984-01-36-RK

3M Electronic Solutions Division

Headers & Wire Housings 36 CON LOW PROFILE .100" Low Profile, Straight, Solder Tails CONN RCPT 36POS STR .100" TIN

¥12.7840
详情
929984-01-36

929984-01-36

3m interconnect solutions

Conn Socket Strip SKT 36 POS 2.54mm Solder ST Thru-Hole .100" Low Profile, Straight, Solder Tails CONN RCPT 36POS STR .100" TIN Headers & Wire Housings 36P STRT LOPRO SKT

¥15.6774
详情
929870-01-36-10

929870-01-36-10

3m interconnect solutions

Conn Socket Strip SKT 36 POS 2.54mm Solder ST Thru-Hole .100" Low Profile, Straight, Solder Tails CONN RCPT 36POS STR .100" GOL Headers & Wire Housings 36 POS 2.54MM SOLDER ST THRU-HOLE,SOCKET

¥24.6840
详情
929870-01-36-30

929870-01-36-30

3m interconnect solutions

Conn Socket Strip SKT 36 POS 2.54mm Solder ST Thru-Hole .100" Low Profile, Straight, Solder Tails CONN RCPT 36POS STR .100" GOL Headers & Wire Housings 36 CON LOW PROFILE STR BRDMNT SKT

¥28.8990
详情
929850-01-36-30

929850-01-36-30

3m interconnect solutions

Conn Socket Strip SKT 36 POS 2.54mm Solder ST Thru-Hole CONN RCPT 36POS STR .100" GOL Headers & Wire Housings 36POS STR .100 GOLD RECEPTACLE

¥16.1160
详情
CHG-1036-001010-KEP

CHG-1036-001010-KEP

3m interconnect solutions

Conn IDC Connector SKT 36 POS 2.54mm Crimp ST Cable Mount .100" for .100" Pak 100 Wiremount, Pitch Notched Flat Cable or Discrete Wire CONN RCPT IDC 36POS 24-22AWG Headers & Wire Housings 36 POS 2.54MM CRIMP ST CABLE MOUNT

¥31.2800
详情

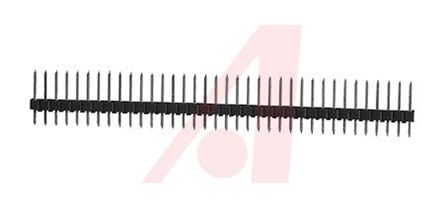

929400-01-36-RK
