DF2319 microcontroller 系列
Renesas Electronics Corporation16位H8S微控制器，带有512KB闪存，多种封装形式
瑞萨电子公司的DF2319微控制器系列是基于H8S架构的16位处理器，适用于需要性能与成本平衡的应用。这些控制器拥有512KB的闪存，提供了足够的存储空间以满足中等规模应用的需求，同时避免了使用更大、更昂贵部件带来的额外开销。它们提供多种封装选项，因此适用于不同的板级布局和引脚数要求。
如果您正在开发需要实时处理能力的嵌入式系统，这些微控制器是一个很好的选择。它们常用于汽车系统、工业控制和消费电子设备等领域，其中可靠运行和高效的电源管理至关重要。值得一提的是，它们具有强大的中断处理能力，特别适合那些对外部事件及时响应至关重要的环境。
当工程师们需要高性能且成本效益高的解决方案时，往往会选用这一系列微控制器。H8S架构提供了指令集复杂性和执行速度的良好平衡，非常适合电机控制、传感器处理和通信协议等任务。512KB的闪存也为代码空间提供了不错的容量，使开发者能够实现复杂的算法和固件更新。总体而言，DF2319系列为各种应用提供了一个可靠且高效的平台。

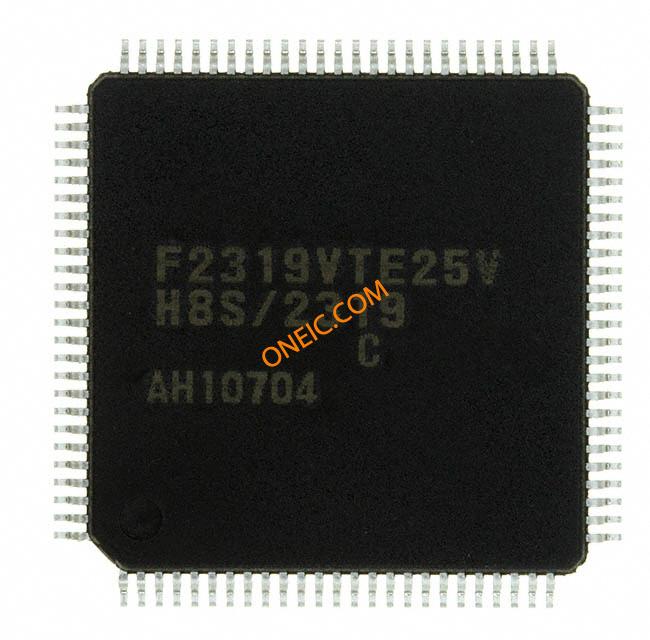

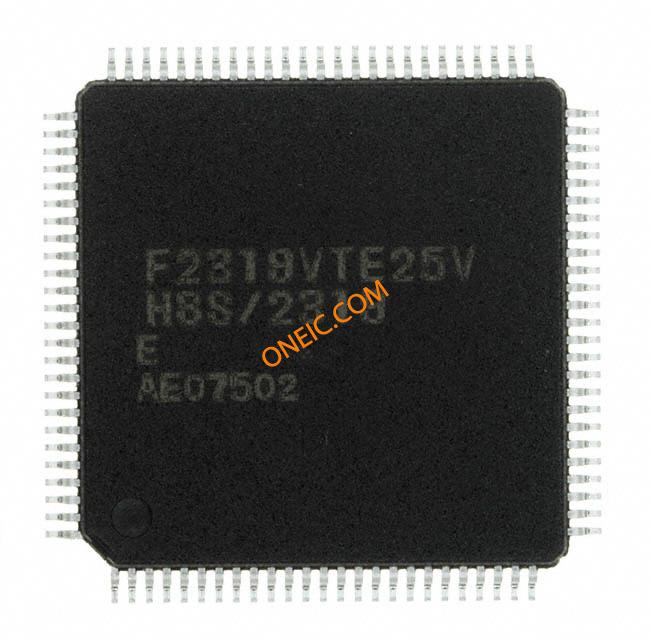

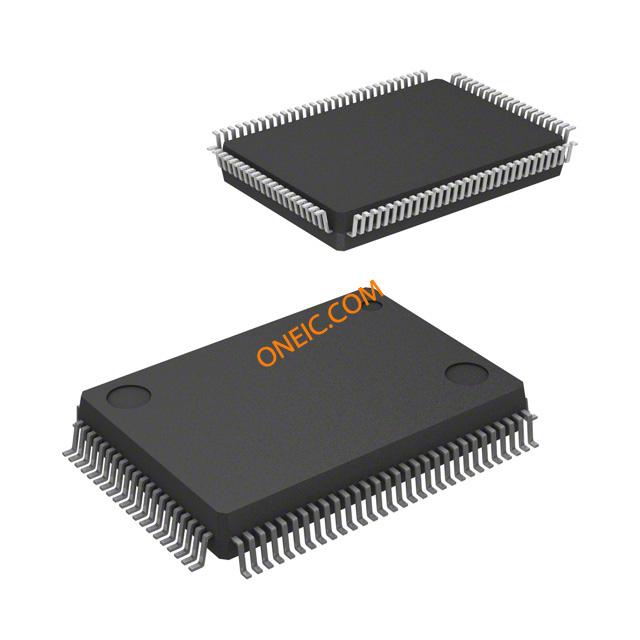

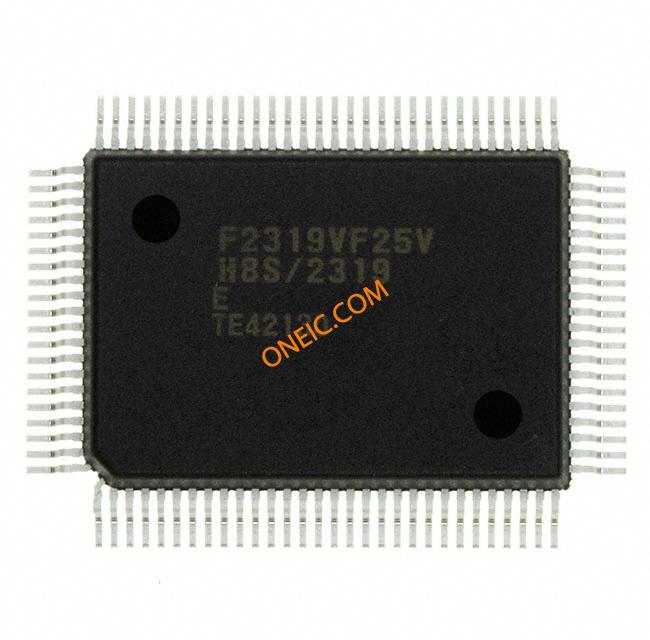

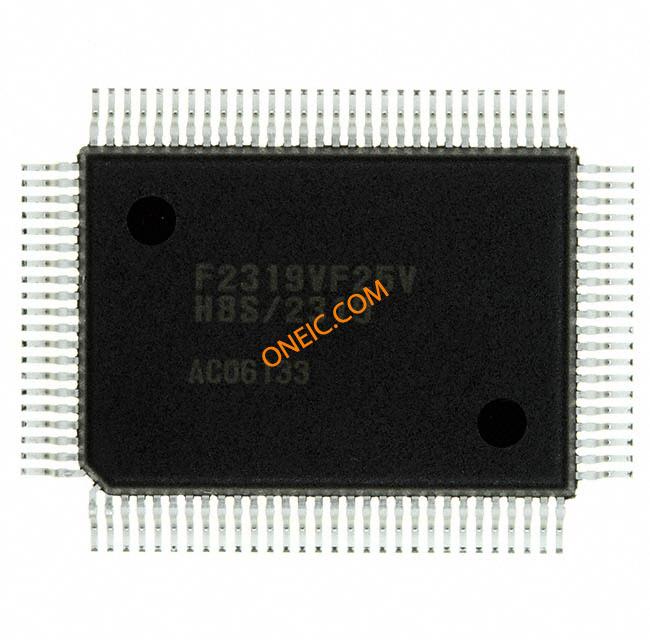

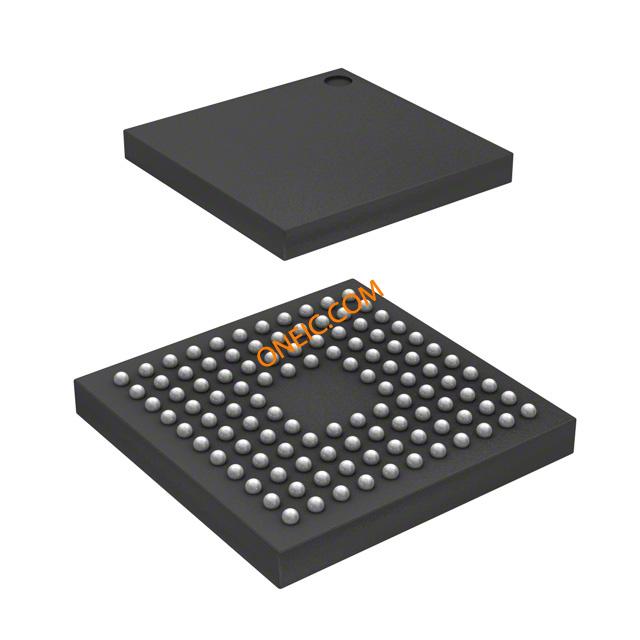

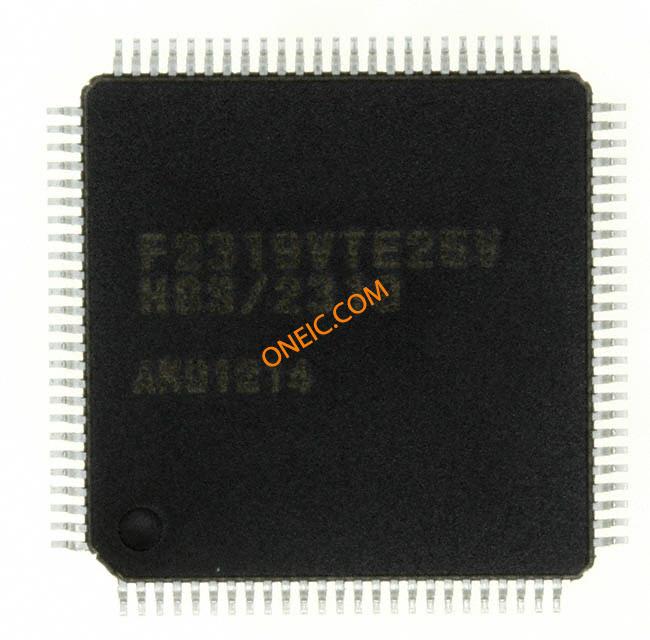

系列图片（10 张）
文档与媒体
常见问答
DF2319 microcontroller - 型号列表
共 13 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | 转速 | RAM 大小 | 内核大小 | I/O 数量 | 数据转换器 | 振荡器类型 | 程序存储器大小 | 程序存储器类型 | 供电电压 (Vcc/Vdd) | 包装方式 | 封装形式 | 外设 | 连接性 | 核心处理器 | 工作温度 | RoHS | 欧盟RoHS | 认证机构 | 时钟速率 | 位数 | 额定电压 | DAC数量 | ADC/DAC 数量 | 最小供电电压 | 每元件位数 | 宽度 | 安装类型 | 总长度 | 包装数量 | 外壳尺寸-插件 | 核心数/总线宽度 | 架构 | 定时器数量 | 射频系列/标准 | DigiKey可编程 | 印刷电路板数量 | 标准封装名称 | 引脚样式 | 接口 | 供电电压 | 片内RAM（通道数×位宽） | 其他名称 | 抗辐射加固 | 核心类型 | 频率 | 冷却的封装 | 可编程性 | 结工作温度 | 通道数 | 存储器类型 | 数字供电电压 | 芯径 | 系列 | 附件类型 | 看门狗定时器 | 最大频率 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MCU 16-bit H8S CISC 512KB Flash 3.3V 100-Pin PQFP IC MCU 16BIT 512KB FLASH 100QFP renesas electronics | 12 | 1: ¥188.224 | - | Trays | 25 MHz | 8 KB | 16-Bit | 70 | A/D 8x10b; D/A 2x8b | Internal | 512 KB | Flash | 2.7 V ~ 3.6 V | Tray | 100PQFP | POR, PWM, WDT | SCI, SmartCard | H8S/2000 | -20 to 75 °C | Lead free / RoHS Compliant | Compliant | No | 25 | 100 | 2.7 | 2 | 8 | 3.6 | 8 | 14 | Surface Mount | 20 | PQFP | 2.7 | 16 Bit | CISC | 8 | H8S | Yes | 100 | QFP | Gull-wing | SCI | 3.3 V | 8-chx10-bit | HD64F2319VF25V | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 MCU 16-bit H8S CISC 512KB Flash 3.3V 100-Pin PQFP IC MCU 16BIT 512KB FLASH 100QFP renesas electronics | 60 | 1: ¥217.60 | - | Trays | 25 MHz | 8 KB | 16-Bit | 70 | A/D 8x10b; D/A 2x8b | Internal | 512 KB | Flash | 2.7 V ~ 3.6 V | Tray | 100PQFP | POR, PWM, WDT | SCI, SmartCard | H8S/2000 | -20 to 75 °C | Lead free / RoHS Compliant | Compliant | No | 25 | 100 | 2.7 | 2 | 8 | 3.6 | 8 | 14 | Surface Mount | 20 | PQFP | 2.7 | 16 Bit | CISC | 8 | H8S | Yes | 100 | QFP | Gull-wing | SCI | 3.3 V | 8-chx10-bit | HD64F2319EVF25V | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 MCU 16-bit H8S CISC 512KB Flash 3.3V 100-Pin TQFP IC MCU 16BIT 512KB FLASH 100TQFP renesas electronics | 33 | 1: ¥167.552 | - | Trays | 25 MHz | 16 KB | 16-Bit | 70 | A/D 8x10b; D/A 2x8b | Internal | 512 KB | Flash | 2.7 V ~ 3.6 V | Tray | 100TQFP | POR, PWM, WDT | SCI, SmartCard | H8S/2000 | -20 to 75 °C | Lead free / RoHS Compliant | Compliant | No | 25 | 100 | 2.7 | 2 | 8 | 3.6 | 8 | 14 | Surface Mount | 14 | TQFP | 1 | 16 Bit | CISC | 8 | H8S | Yes | 100 | QFP | Gull-wing | SCI | 3.3 V | 8-chx10-bit | HD64F2319CVTE25V | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
MCU 16-bit H8S CISC 512KB Flash 3.3V 100-Pin PQFP IC MCU 16BIT 512KB FLASH 100QFP renesas electronics | 10 | 1: ¥116.28 | - | Trays | 25 MHz | 16 KB | 16-Bit | 70 | A/D 8x10b; D/A 2x8b | Internal | 512 KB | Flash | 2.7 V ~ 3.6 V | Tray | 100PQFP | POR, PWM, WDT | SCI, SmartCard | H8S/2000 | -20 to 75 °C | Lead free / RoHS Compliant | Compliant | No | 25 | 100 | 2.7 | 2 | 8 | 3.6 | 8 | 14 | Surface Mount | 20 | PQFP | 2.7 | 16 Bit | CISC | 8 | H8S | Yes | 100 | QFP | Gull-wing | SCI | 3.3 V | 8-chx10-bit | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 MCU 16-bit H8S CISC 512KB Flash 3.3V 100-Pin TQFP IC MCU 16BIT 512KB FLASH 100TQFP renesas electronics | 980 | 490: ¥382.1899 | - | Trays | 25 MHz | 8 KB | 16-Bit | 70 | A/D 8x10b; D/A 2x8b | Internal | 512 KB | Flash | 2.7 V ~ 3.6 V | Tray | 100TQFP | POR, PWM, WDT | SCI, SmartCard | H8S/2000 | -20 to 75 °C | Lead free / RoHS Compliant | Compliant | No | 25 | 100 | 2.7 | 2 | 8 | 2.7 V | 8 | 14 | Surface Mount | 14 | TQFP | 1 | 16 Bit | CISC | 8 | H8S | Yes | 100 | QFP | Gull-wing | SCI | 3.3 V | 8-chx10-bit | HD64F2319EVTE25V | No | H8S | 25 MHz | TQFP | Yes | 75C | 70 | Flash | 2.7 V ~ 3.6 V | 16-Bit | H8® H8S/2300 | POR, PWM, WDT | - | - |
 MCU 16-bit H8S CISC 512KB Flash 3.3V 113-Pin TFLGA IC MCU 16BIT 512KB FLASH 113LGA renesas electronics | 10 | 1: ¥152.388 | - | Trays | 25 MHz | 16 KB | 16-Bit | 70 | A/D 8x10b; D/A 2x8b | Internal | 512 KB | Flash | 2.7 V ~ 3.6 V | Tray | 113TFLGA | POR, PWM, WDT | SCI, SmartCard | H8S/2000 | -20 to 75 °C | Lead free / RoHS Compliant | Compliant | No | 25 | 113 | 2.7 | 2 | 8 | 3.6 | 8 | 8 | Surface Mount | 8 | TFLGA | 1.2(Max) | 16 Bit | CISC | 8 | H8S | Yes | 113 | - | - | SCI | 3.3 V | 8-chx10-bit | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
MCU 16-bit H8S CISC 512KB Flash 3.3V 100-Pin TQFP IC MCU 16BIT 512KB FLASH 100TQFP Renesas Electronics | 0 | - | 1 | 25MHz | 8KB | 16-Bit | 70 | A/D 8x10b; D/A 2x8b | Internal | 512KB | Flash | 2.7 V ~ 3.6 V | Tray | 100-TQFP | POR, PWM, WDT | SCI, SmartCard | H8S/2000 | -20°C ~ 75°C | Contains lead / RoHS non-compliant | Not Compliant | No | 25 | 100 | 2.7 | 2 | 8 | 3.6 | 8 | 14 | Surface Mount | 14 | TQFP | 1 | 16 | CISC | 8 | H8S | Yes | 100 | QFP | Gull-wing | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
MCU 16-bit H8S CISC 512KB Flash 3.3V 100-Pin TQFP IC MCU 16BIT 512KB FLASH 100TQFP renesas electronics | 10 | 1: ¥167.62 | - | Trays | 25 MHz | 16 KB | 16-Bit | 70 | A/D 8x10b; D/A 2x8b | Internal | 512 KB | Flash | 2.7 V ~ 3.6 V | Tray | 100TQFP | POR, PWM, WDT | SCI, SmartCard | H8S/2000 | -40 to 85 °C | Lead free / RoHS Compliant | Compliant | No | 25 | 100 | 3 | 2 | 8 | 3.6 | 8 | 14 | Surface Mount | 14 | TQFP | 1 | 16 Bit | CISC | 8 | H8S | Yes | 100 | QFP | Gull-wing | SCI | 3.3 V | 8-chx10-bit | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 | - |
MCU 16-bit H8S CISC 512KB Flash 3.3V 100-Pin TQFP MCU 16-bit H8S H8S CISC 512KB Flash 3.3V 100-Pin TQFP IC MCU 16BIT 512KB FLASH 100TQFP renesas electronics | 455 | 1: ¥142.936 | - | Trays | 25 MHz | 8 KB | 16-Bit | 70 | A/D 8x10b; D/A 2x8b | Internal | 512 KB | Flash | 2.7 V ~ 3.6 V | Tray | 100TQFP | POR, PWM, WDT | SCI, SmartCard | H8S/2000 | -20 to 75 °C | Lead free / RoHS Compliant | Compliant | No | 25 | 100 | 2.7 | 2 | 8 | 2.7 V | 8 | 14 | Surface Mount | 14 | TQFP | 1 | 16 Bit | CISC | 8 | H8S | Yes | 100 | QFP | Gull-wing | SCI | 3.3 V | 8-chx10-bit | HD64F2319VTE25V | No | H8S | 25 MHz | TQFP | Yes | 75C | - | - | - | - | - | - | - | 25 MHz |
 MCU 16-bit H8S CISC 512KB Flash 3.3V 100-Pin PQFP IC MCU 16BIT 512KB FLASH 100QFP Renesas Electronics | 0 | - | 1 | 25MHz | 8KB | 16-Bit | 70 | A/D 8x10b; D/A 2x8b | Internal | 512KB | Flash | 2.7 V ~ 3.6 V | Tray | 100-BQFP | POR, PWM, WDT | SCI, SmartCard | H8S/2000 | -20°C ~ 75°C | Contains lead / RoHS non-compliant | Not Compliant | No | 25 | 100 | 2.7 | 2 | 8 | 3.6 | 8 | 14 | Surface Mount | 20 | PQFP | 2.7 | 16 | CISC | 8 | H8S | Yes | 100 | QFP | Gull-wing | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
IC H8S MCU FLASH 3V 512K 100TQFP IC MCU 16BIT 512KB FLASH 100TQFP Renesas Electronics America | 0 | - | 1 | 25MHz | 8K x 8 | 16-Bit | 70 | A/D 8x10b; D/A 2x8b | Internal | 512KB (512K x 8) | FLASH | 2.7 V ~ 3.6 V | Tray | 100-TQFP | POR, PWM, WDT | SCI, SmartCard | H8S/2000 | -20°C ~ 75°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
