570-002 power connector 系列
EDAC Inc.EDAC 570系列防水连接器
EDAC 570-002电源连接器系列专为恶劣环境中的可靠电气连接设计，特别适用于涉及水的应用。这些连接器在浸水状态下仍能保持其功能，使其非常适合海洋应用、水下设备以及任何在潮湿环境中运行的系统。
如果您正在处理与水基机械或需要部分或完全浸入水中才能正常工作的设备相关的项目，这些连接器是理想的选择。值得注意的是，它们具有坚固的密封机制，通常包括O型圈和专门的防水垫圈。这确保了水分不会渗透到连接中，从而保护电气组件和整个系统的完整性。
当工程师需要在水下环境中安全可靠地传输电力时，往往会选用这种连接器。例如，在海上石油钻井平台、水下机器人或休闲船只中，这些连接器在确保电气系统即使在不利环境条件下也能保持运行方面发挥着关键作用。此外，它们也适用于灌溉系统或靠近水域的照明系统等工业应用。
系列图片（17 张）
文档与媒体
常见问答
570-002 power connector - 型号列表
共 9 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | RoHS | 连接器类型 | 标准包装数量 | 接触镀层 | 排数 | 位数 | 产品特性 | 产品子类型 | 海关税号 | 额定电压 | 重量 | 安装类型 | 锁定特性 | 连接器性别 | 系列 | 工作温度 | SVHC | 适用产品/相关产品 | 工厂包装数量 | 颜色 | 材料阻燃等级 | 间距 | 包装方式 | 触头类型 | 柱间距 | 基体材料 | 连接器 - 电缆 | 接触件端接 | 绝缘材料 - 材质 | 适配器系列 | 单元数量 | 防护等级 | 最大额定电流 | 端接方式 | 触头材料 | 壳体材料 | 其他名称 | 长度 | 屏蔽 | 电缆端接方式 | 紧固类型 | 安装样式 | 本体材料 | 包装数量 | SPG | 备注 | 连接器类型 - 电压输入 | 电缆长度 | 线缆护套颜色 | 触点材料 - 柱 | 极数格式 | 量程（°/s） | 触点数 | 加载位置数 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 10 | 100: ¥28.22 | - | RoHS Compliant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | 25: ¥35.02 | - | RoHS Compliant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 ASSEMBLY PLUG 2POS WATERPROOF Jones Plugs & Sockets CABLE ASSY PLUG 10A WATERPROOF EDAC Inc | 10 | 100: ¥44.064 | - | RoHS Compliant | Plug to Cable | 100 | Tin | 1 | 2 | Waterproof | Plug Connectors | - | - | - | - | - | - | - | - | - | - | 100 | Multiple, Individual | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 151-1018 | 0.328' (100.00mm, 3.94") | Unshielded | Crimp | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 ASSEMBLY RECEPT 2 POS WATERPROOF Jones Plugs & Sockets CABLE ASSY RECEP 10A WATERPROOF EDAC Inc | 10 | 25: ¥53.72 | - | RoHS Compliant | Socket to Individual Wire Leads | 25 | Tin | 1 | 2 | Waterproof | Plug Connectors | - | - | - | - | - | - | - | - | - | - | 100 | Multiple, Individual | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 151-1020 | 0.656' (200.00mm, 7.87") | Unshielded | Crimp | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 CONN RCPT 2POS WATERPROOF 10AMP Jones Plugs & Sockets WATERPROOF INSULATRS CONNECTOR, HOUSING, RECEPTACLE, 2POS, 5.8MM CONNECTOR, RECPT, WIRE MOUNT, IP67, 2WAY Connector: wire-wire; 570; plug; female; PIN:2; IP67; Locking: lock EDAC Inc | 490 | 1: ¥22.10 | Jones Plugs & Sockets | RoHS Compliant | Receptacle | 250 | - | 1 | 2 | Waterproof | Plug Connectors | 85369010 | 300V | 0 | Free Hanging (In-Line) | :Latch | :Receptacle | :570 Waterproof | -40...105°C | :No SVHC (20-Jun-2013) | :570 Series Crimp Contacts | - | - | UL94V-0 | 0.228" (5.80mm) | Bulk | Female Socket | 5.8mm | PBT | plug | Crimp | silicone rubber | 570 | 1 | IP67 | - | - | - | - | - | - | - | - | Latch Lock | for cable | :PBT (Polybutylene Terephthalate) | 20 | 20 | Contacts Not Provided | - | - | - | - | - | - | - | - |
 CONN PLUG 2POS WATERPROOF 10AMP Jones Plugs & Sockets 2P Plug Waterproof CONNECTOR, HOUSING, PLUG, 2POS, 5.8MM CONNECTOR, PLUG, WIRE MOUNT, IP67, 2WAY Connector: wire-wire; 570; plug; male; PIN:2; IP67; Locking: lock EDAC Inc | 3739 | 1: ¥11.968 | - | RoHS Compliant | Plug | 250 | - | 1 | 2 | Waterproof | Plug Connectors | 85369010 | 300V | 0 | Free Hanging (In-Line) | :Latch | :Plug | :570 Waterproof | -40...105°C | :No SVHC (20-Jun-2013) | :570 Series Crimp Contacts | - | - | UL94V-0 | 0.228" (5.80mm) | Bulk | Male Pin | 5.8mm | PBT | plug | Crimp | silicone rubber | 570 | 1 | IP67 | - | - | - | - | - | - | - | - | Latch Holder | for cable | :PBT (Polybutylene Terephthalate) | 50 | 50 | Contacts Not Provided | - | - | - | - | - | - | - | - |
 CONN PLUG 2POS WATERPROOF PCB Jones Plugs & Sockets PLUG PCB ASSY 10AMP WATERPROOF CONNECTOR, HEADER, 2POS, 1ROW Connector: wire-board; 570; socket; male; PIN:2; IP67; Locking: lock EDAC Inc | 175 | 1: ¥15.912 | - | RoHS Compliant | Plug | 250 | Tin | 1 | 2 | Waterproof | Plug Connectors | 85366930 | 300 V | 0 | Through Hole | lock | :Header | 570 | -40...105°C | - | - | 50 | White | UL94V-0 | :5.8mm | Bulk | Male Pin | 5.8mm | PBT | socket | :Through Hole Vertical | silicone rubber | 570 | 1 | IP67 | 10 A | Solder | Brass | Polybutylene Terephthalate (PBT) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | :EDAC - 570 Series | 2 | All |

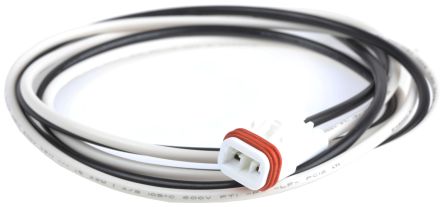

 570 Series Female Compact Power Connector Socket 2P Cable Mount,Crimp Termination,10A 300V ac CABLE ASSY, RCPT, WIRE FREE, 915MM, 2WAY 2WAYCABLESOCKET10A EDAC 570系列 线对线连接器 插座 母, 2P, 电缆安装安装, 压接端接, 10A 300 V 交流, -40 → +105 °C EDAC | 16 | 1: ¥50.82 | - | - | :Free Ends | - | Tin | - | - | - | - | 85369010 | 300 V ac | 0.001 | Cable Mount | :Latch | Female | 570 | +105°C | :No SVHC (20-Jun-2013) | :570 Series Crimp Contacts | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 10A | Crimp | Brass | PBT | - | - | - | - | - | - | - | - | - | - | Socket | :36" | :Black | :PBT (Polybutylene Terephtalate) | 2P | - | - | - |
 570 Series Male Compact Power Connector Plug 2P Cable Mount,Crimp Termination,10A 300V ac CABLE ASSY, PLUG, WIRE FREE, 915MM, 2WAY EDAC 570系列 线对线连接器 插头 公, 2P, 电缆安装安装, 压接端接, 10A 300 V 交流, -40 → +105 °C EDAC | 58 | 1: ¥51.59 | - | - | :Free Ends | - | Tin | - | - | - | - | 85369010 | 300 V ac | 0.001 | Cable Mount | :Latch | Male | 570 | +105°C | :No SVHC (20-Jun-2013) | :570 Series Crimp Contacts | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 10A | Crimp | Brass | PBT | - | - | - | - | - | - | - | - | - | - | Plug | :36" | :Black | :PBT (Polybutylene Terephtalate) | 2P | - | - | - |
