Honeywell International Inc.- 高G值加速度计
03
高G值加速度计 - 型号列表
共 1 个型号| 制造商零件编号 | 库存 | 价格 | 交货时间 | 子类别 | 标准包装数量 | RoHS | 输出类型 | 传感器类型 | 输出电流 | 供电电压 | 启动电压 | 加速度 | 静电放电屏蔽 | SATA | 系列 | 嵌入式 | 变体 | 化学成分 | 湿度范围 | 机械寿命 | 防护等级 | 热阻 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

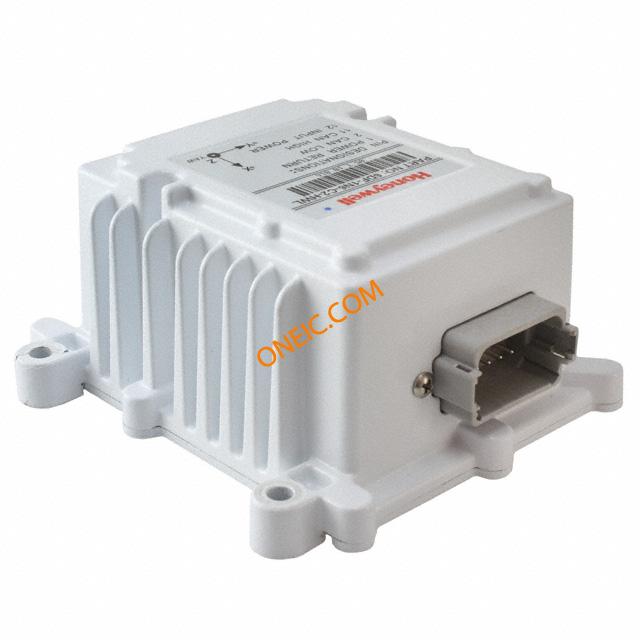

6D MOTION IMU 6G VARIANT Industrial Motion & Position Sensors Position Sensors Six Degree Of Freedom Inertial Measurement Unit, 6-D Motion Variant PositionSensors 6DF (Six Degrees of Freedom) Series Inertial Measurement Unit, 6-D Motion Variant, 6 g accelerometer Honeywell Sensing and Control | 10 | 1: ¥10,823.016 | 63 Days | Not Specified | 1 | Lead free / RoHS Compliant | Digital | Inertial Measurement Unit | 350 mA max. | 7 V to 36 V | 700 ms typ. | 6 g | SAE J1113.13 (Nov 2004), 8 kV direct/15 kV air discharge | 5% salt solution, 96 hr at 35 °C [95 °F] | 6DF | CISPR 25, ISO13766 ISO114252-2 (100 V/m at 200 MHz to 1 GHz, 50 V/m at 1 GHz to 2 GHz) ISO114252-5 (100 V/m at 10 kHz to 1 MHz) ISO114252-4 (100 mA at 1 MHz to 400 MHz) | 6 Degrees of Freedom, 6-D Motion | diesel fuel, hydraulic oil, ethylene glycol, motor oil, brake fluid, urea nitrogen, liquid lime, NPK fertilizer, ammonia hydroxide, alkaline degreaser | 95 %RH at 25 °C to 55 °C [77 °F to 131 °F] | 30 g | IP67, IP69k | -40 °C to 105 °C [-40 °F to 221 °F] soak time, 30 min; transfer time less than 10 s, 30 cycles | -40 ºC to 85 ºC [-40 ºF to 185 ºF] |
第 1 / 1 页
