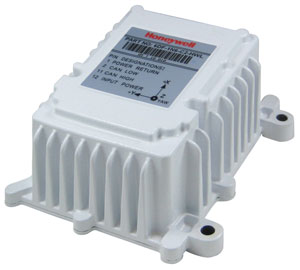

6DF-1N6-C2-HWL
| 制造商 | |
| 描述 | 6D MOTION IMU 6G VARIANT Industrial Motion & Position Sensors Position Sensors Six Degree Of Freedom Inertial Measurement Unit, 6-D Motion Variant PositionSensors 6DF (Six Degrees of Freedom) Series Inertial Measurement Unit, 6-D Motion Variant, 6 g accelerometer |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 63 Days | 子类别 | Not Specified |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 输出类型 | Digital | 传感器类型 | Inertial Measurement Unit |
| 输出电流 | 350 mA max. | 供电电压 | 7 V to 36 V |
| 启动电压 | 700 ms typ. | ||
机械参数
| 加速度 | 6 g | 静电放电屏蔽 | SAE J1113.13 (Nov 2004), 8 kV direct/15 kV air discharge |
产品信息
| SATA | 5% salt solution, 96 hr at 35 °C [95 °F] | 系列 | 6DF |
| 嵌入式 | CISPR 25, ISO13766 ISO114252-2 (100 V/m at 200 MHz to 1 GHz, 50 V/m at 1 GHz to 2 GHz) ISO114252-5 (100 V/m at 10 kHz to 1 MHz) ISO114252-4 (100 mA at 1 MHz to 400 MHz) | 变体 | 6 Degrees of Freedom, 6-D Motion |
| 化学成分 | diesel fuel, hydraulic oil, ethylene glycol, motor oil, brake fluid, urea nitrogen, liquid lime, NPK fertilizer, ammonia hydroxide, alkaline degreaser | ||
环境参数
| 湿度范围 | 95 %RH at 25 °C to 55 °C [77 °F to 131 °F] | 机械寿命 | 30 g |
| 防护等级 | IP67, IP69k | 热阻 | -40 °C to 105 °C [-40 °F to 221 °F] soak time, 30 min; transfer time less than 10 s, 30 cycles |
| 工作温度 | -40 ºC to 85 ºC [-40 ºF to 185 ºF] | ||
