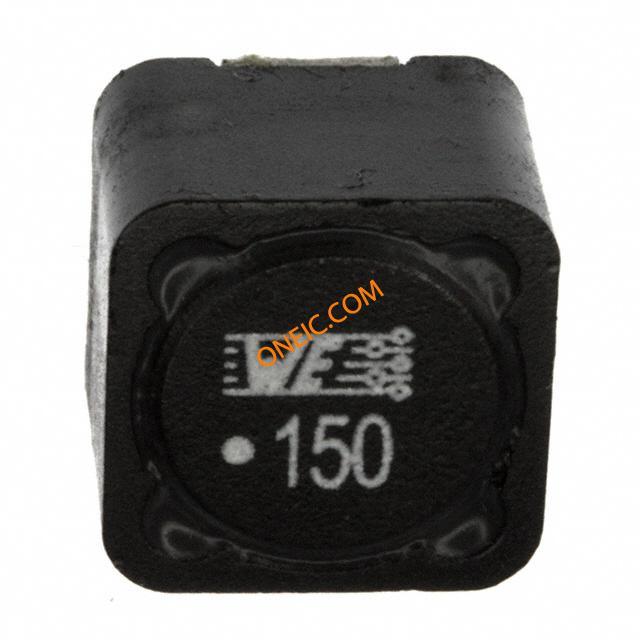

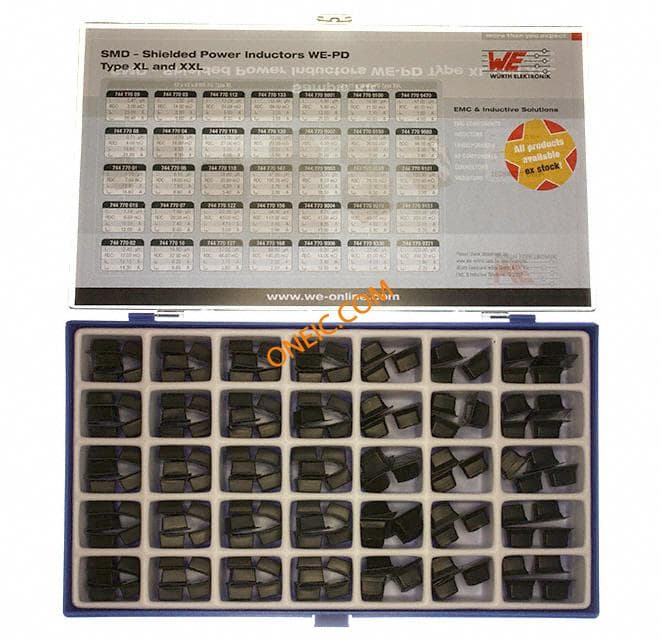

7447709150
| 制造商 | Würth Elektronik GmbH & Co. KG |
| 描述 | Fixed Inductors Shielded Pwr Inductr 6.5A 0.11Ohms 15uH INDUCTOR POWER 15UH 6.5A SMD SMD Inductor WE-PD XXL 15uH 8A Fixed Inductors WE-PD Inductor 15uH 1kHz 6.5A CHOKE, SMD, 15UH Wurth WE-PD 系列 屏蔽 铁氧体芯材 绕线贴片电感器, 15 μH ±20%, 8A Idc |
| 分类 |
商业参数
| 产品 | SMD Power Inductors | 其他名称 | 732-1242-2 |
| 标准包装数量 | 250 | 工厂包装数量 | 250 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85045095 | ||
电气参数
| 核心类型 | :Shielded | 阻抗 | :0.02075ohm |
| 容差 | 20 % | 电感量 | 15 uH |
| 量程（°/s） | :WURTH ELEKTRONIK - WE-PD Series | 测试频率 | 1 kHz |
| 电感量范围 | :± 20% | 直流电阻（DCR） | 26 mOhm Max |
| 最大额定电流 | 6.5 A | 直流电阻（DCR）（最大） | :0.026ohm |
| 自谐振频率 | 17 MHz | 饱和电流（Isat） | :8A |
| 串联饱和电流 | 8A | 初始电阻（最小） | 26 mOhms |
| 通态电流（It (RMS)）（最大） | :6.5A | ||
机械参数
| 深度 | 12mm | 宽度 | 12 mm |
| 高度 | 10mm | 长度 | 12mm |
| 重量 | 0.0048 | 包装方式 | Reel |
| 屏蔽 | Shielded | 屏蔽类型 | Yes |
| 引脚间距 | 7 mm | 磁芯材料 | Ferrite |
| 安装类型 | Surface Mount | 引脚数 | :2 |
| 封装形式 | 12 mm x 12 mm x 10 mm | 磁芯材质 | Ferrite |
| 主要材料 | :Metal | 尺寸/外形 | 12 mm W x 12 mm L x 10 mm H |
| 端接样式 | SMD/SMT | 总体尺寸 | :12mm x 12mm x 10mm |
| 安装高度（最大） | 0.394" (10.00mm) | ||
产品信息
| 类型 | SMD Shielded Power Inductor | 系列 | WE-PD |
环境参数
| 工作温度 | - 40 C to + 125 C | ||
