点击放大查看

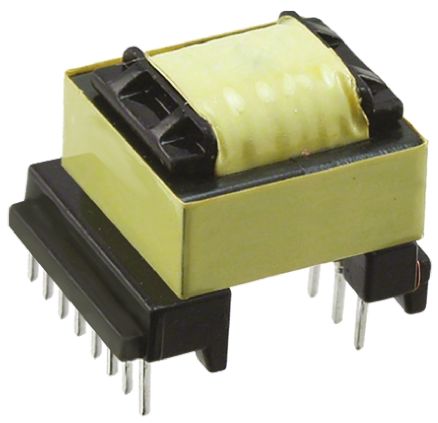

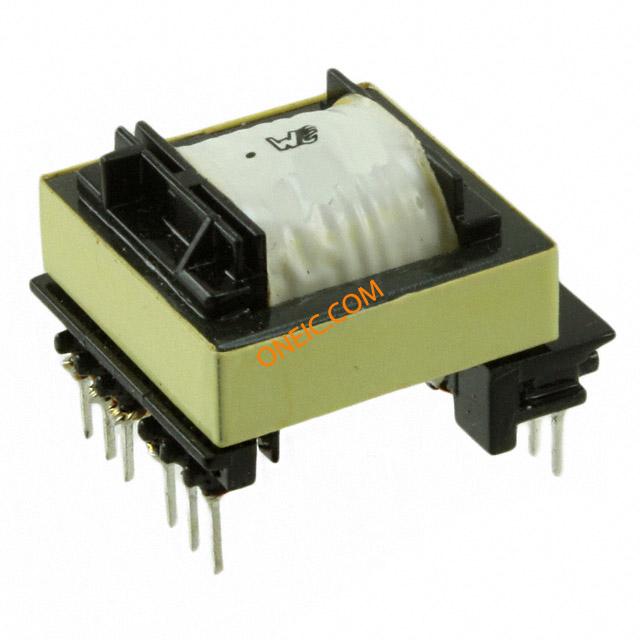

750311911
| 制造商 | |
| 描述 | TRANS FLYBACK LT3748 6.8UH RAD 1:3 Surface Mount, 6.78μH TRANS. FLYBACK LT3748 6.78MH 10% 1:3 表面贴装 回扫变压器, 6.78μH, 0.02Ω |
| 分类 |
商业参数
| 其他名称 | 732-2641-2 | 标准包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85043180 | ||
电气参数
| 电感量 | :6.78µH | 额定电压 | :15V |
| 初级电压 | 16 ~ 24V | 直流电阻（DCR） | :0.006ohm |
| 辅助电压 | 5V @ 300mA | 隔离电压 | 1500Vrms |
机械参数
| 重量 | 0.01 | 包装方式 | Tray |
| 安装类型 | Through Hole | 尺寸/外形 | 25.00mm L x 22.20mm W |
| 安装高度（最大） | 16.00mm | ||
产品信息
| 类型 | For DC/DC Converters | 应用 | Flyback Converters |
| 目标芯片组 | LT3573, LT3574, LT3575, LT3748 | 芯片组制造商 | Linear Technology |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
