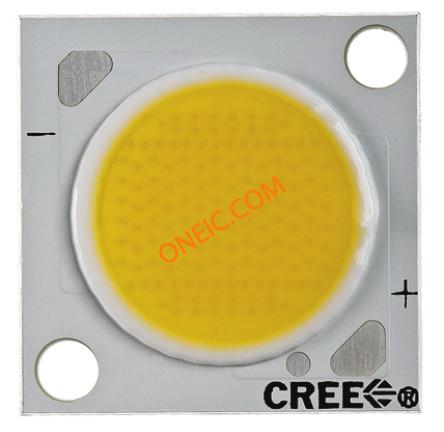

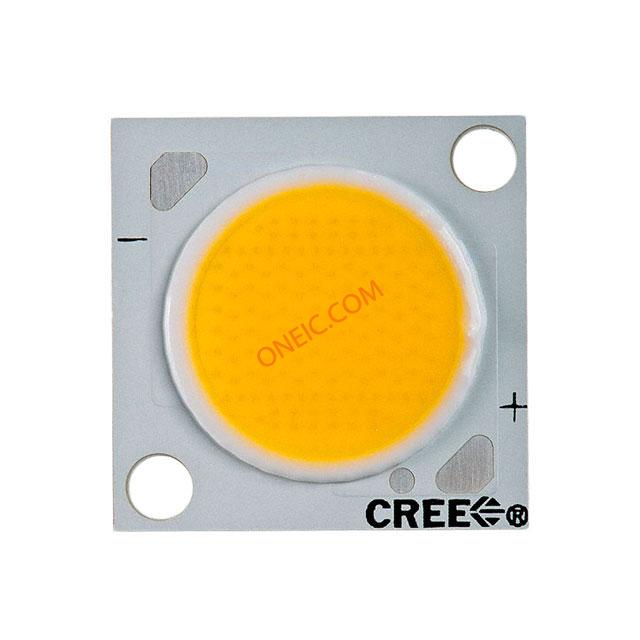

CXA2011-0000-000P00H030H

制造商	Wolfspeed, Inc.
描述	High Power LEDs - White Warm White, 3000K 1036lm, 270mA, 80CRI LED Uni-Color White 2-Pin Tube LED WARM WHITE 3000K SCREW MOUNT LED,High Power,Easy White 2 step,3000K LED ARRAY CXA2011 EZWHT 3000K LED,HighPower,EasyWhite2step,3000K Cree 白色 3000K COB LED , 48 V, 1000mA, 120 °视角板上芯片
分类	光电子学分立LED指示灯高亮LED

对参数有疑问？问 AI 助手

商业参数

其他名称

CXA20110000000P00H030H

标准包装数量

合规参数

RoHS	RoHS Compliant	欧盟RoHS	Compliant
海关税号	85414010	抗辐射加固	No

电气参数

电压	40V	波长	3000K
灯输出	Yes	光通量	1036 lm
视角	120 deg	输出电流	270mA
驱动电路	No	峰值波长	Not Required nm
元件数量	1	跳闸电流	270 mA
LED正向电流	270 mA	LED正向电压	40 V
最大额定电流	1A	主波长	Not Required nm
直流正向电流（If）（最大）	:1A	峰值脉冲电流（10/1000µs）	1000

机械参数

颜色	White	深度	22 mm
形状	Circular	宽度	22 mm
高度	2.275 mm	长度	22 mm
重量	0.0001	LED颜色	White
包装方式	Tube	灯颜色	3000 K
透镜样式	Circular	发光颜色	White
安装类型	Screw	安装样式	SMD/SMT
引脚数	2	连接器用途	No
总长度	22 mm	包装数量	22 x 22 x 2.275mm
背景色	3000K	照明颜色	Warm White
位数	2	外壳尺寸-插件	2.28
显色指数（CRI）	80

产品信息

类型	Uni-Color	系列	CXA2011
色温 (K)	:3000K	已删除	Compliant
主要用途	Chip LED	配置	Square
LED数量	1	印刷电路板数量	2

环境参数

工作温度

- 40 C

光通量 @ 电流/温度

970 lm

文档与媒体

PDF 文档

XLampCXA2011-276110.pdf
