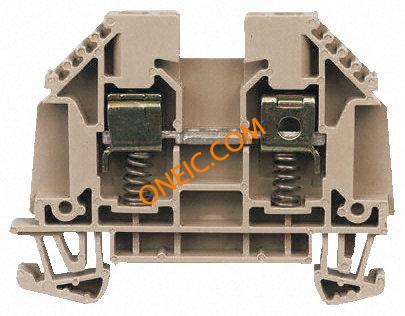

9537470000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | Conn Modular Terminal Blocks 2 POS Screw ST Cable Mount 45A TERMINAL WDU 6 SL COMBI WEMID Non-Fuse DIN Rail Terminal, 57A, 500V, Beige ,Screw Down Termination |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 电流 - UL | 50A | UL电压 | 300V |
| 电流 - IEC | 41A | IEC电压 | 500V |
| 额定电压 | 500 V | 最大额定电流 | 57A |
机械参数
| 颜色 | Beige | 导线线规 | 8-20 AWG |
| 端接方式 | Screw | 外壳颜色 | Dark Beige |
| 安装类型 | Cable Mount | 排数 | 2 |
| 剥线长度（范围） | 16mm | 端子宽度 | 7.9mm |
| 端接样式 | Screw, Spring Clamp | 连接器颜色 | Beige |
| 位数 | 2 | 绝缘材料 - 材质 | Thermoplastic, Wemid |
| 线规或范围 - AWG | 8-20 AWG | 线规或范围 - mm² | 0.5-10mm² |
产品信息
| 类型 | Modular Terminal Blocks | 系列 | WDU |
| 层数 | 1 | 电路数 | 1 |
