9037560000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | Connector Accessories Wire End Ferrule With Plastic Collars Yellow FERRULE H 6/29 ZH YELLOW Bootlace ferrule; insulated, double; copper; 6mm2; 18mm; tinned |
| 分类 |
商业参数
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Not applicable / Not applicable | IEC标准 | 27-40-02-01 |
| 标准编号 | 31-16-31-02 | ||
电气参数
| 频率 | 27-40-02-01 | 驱动类型 | bootlace ferrule |
| 位数 | 18mm | 导体绞线 | 6 mm² |
机械参数
| 尺寸 | Two x 10 AWG (6.00mm²) | 颜色 | Yellow |
| 宽度 | 6.2 mm | 高度 | 11.4 mm |
| 长度 | 29 mm | 重量 | 0.76 g |
| 绝缘类型 | Insulated | 导线线规 | AWG 10 |
| 引脚长度（针脚） | 18.00mm | 安装类型 | crimped |
| 安装样式 | for cable | 壁厚 | 0.2 mm |
| 长度（英寸） | 1.142 inch | 触头材料 | copper |
| 套圈材料 | insulated, double | 绝缘颜色 | DIN |
| 总长度 | 29.00mm | 包装数量 | 100 |
| 剥线长度（范围） | 24 mm | 连接器颜色 | yellow |
| 触头长度-柱 | 18 mm | 绝缘材料 - 材质 | polypropylene |
| 接触镀层厚度 | 4.5 mm | 中心距 | 29 mm |
| 线规或范围 - mm² | 6mm2 | 触点材料 - 镀层 | tinned |
产品信息
| SPG | 100 | 类型 | Wire End Ferrule |
| 样式 | DIN | ETIM 6*0 | EC000005 |
| GTIN（EAN） | 4008190493134 | 单元数量 | 1 |
| 固件版本 | Twin wire-end ferrule | 射频系列/标准 | 9037560000 |
环境参数
| ET（伏秒积） | EC000005 | 防护等级 | 27-40-02-01 |
| 工作温度 | 105°C | ||
相关型号
9017460000
weidmuller
PZ 16 CRIMP TOOL W/CERT OF CAL -EA PZ 16 CRIMP TOOL W/CERT OF CAL
9017900000
weidmuller
PZ 6/5 WITH CERTIFICATE -EA PZ 6/5 ZERT CRIMP TOOL

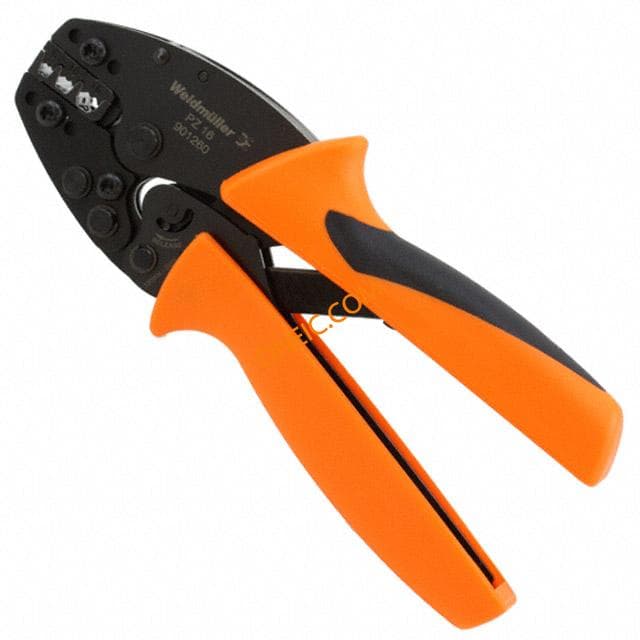

9012600000
