9019050000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | Connector Accessories Wire End Ferrule With Plastic Collars Gray FERRULE 0.75MM 16 GRY 1 = 500PCS Bootlace ferrule; insulated; copper; Insulation: polypropylene |
| 分类 |
商业参数
| 其他名称 | H 0.75/16D GRAY | 标准包装数量 | Bag |
合规参数
| RoHS | Lead free / RoHS Compliant | IEC标准 | 27-40-02-01 |
| 标准编号 | 31-16-31-02 | ||
电气参数
| 频率 | 27-40-02-01 | 驱动类型 | bootlace ferrule |
| 位数 | 10mm | 导体绞线 | 0.75 mm² |
机械参数
| 尺寸 | 18 AWG (0.75mm²) | 颜色 | Gray |
| 长度 | 16 mm | 重量 | 0.1 g |
| 绝缘类型 | Insulated | 导线线规 | AWG 18 |
| 引脚长度（针脚） | 10.00mm | 安装类型 | crimped |
| 安装样式 | for cable | 壁厚 | 0.15 mm |
| 长度（英寸） | 0.63 inch | 触头材料 | copper |
| 套圈材料 | insulated | 绝缘颜色 | DIN |
| 总长度 | 16.00mm | 包装数量 | 500 |
| 剥线长度（范围） | 12 mm | 连接器颜色 | grey |
| 外径 | 2.8 mm | 触头长度-柱 | 10 mm |
| 绝缘材料 - 材质 | polypropylene | 接触镀层厚度 | 1.2 mm |
| 中心距 | 16 mm | 线规或范围 - mm² | 0.75mm2 |
| 触点材料 - 镀层 | tinned | ||
产品信息
| SPG | 500 | 类型 | Wire End Ferrule |
| 样式 | DIN | 设计类型 | T 20A 006 A |
| ETIM 6*0 | EC000005 | GTIN（EAN） | 4008190033002 |
| 单元数量 | 1 | 固件版本 | insulated |
| 射频系列/标准 | 9019050000 | ||
环境参数
| ET（伏秒积） | EC000005 | 防护等级 | 27-40-02-01 |
| 工作温度 | 105°C | ||
文档与媒体
相关型号

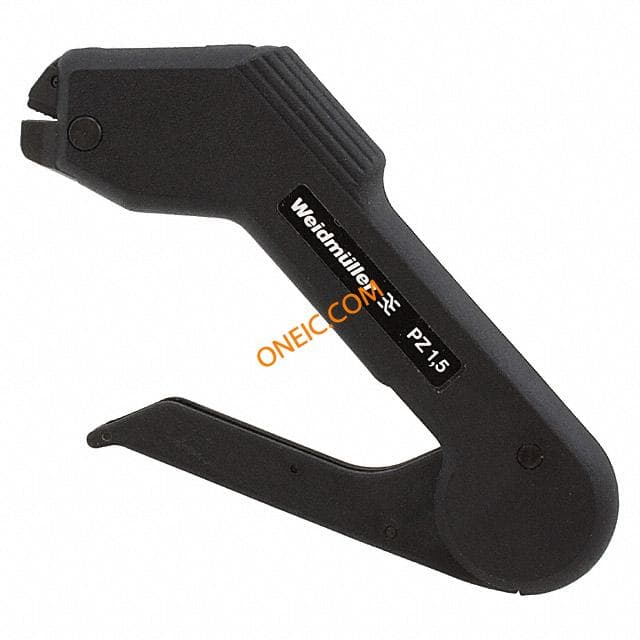

9005990000
weidmuller
Crimping Tool For Wire End Ferrules, Crimping Range 0.14 1.5mm Square , Trapeze Crimp TOOL CRIMPER PZ 1.5 Tool: for crimping; insulated solder sleeves; 0.14÷1.5mm2; 170mm

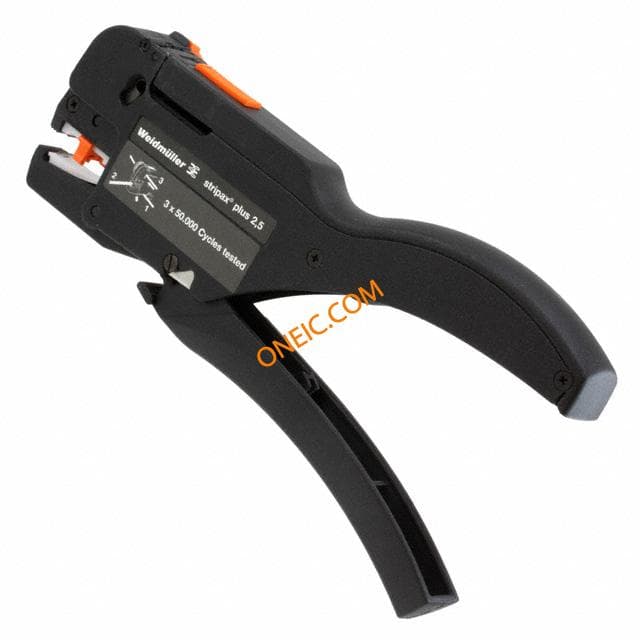

9020000000
