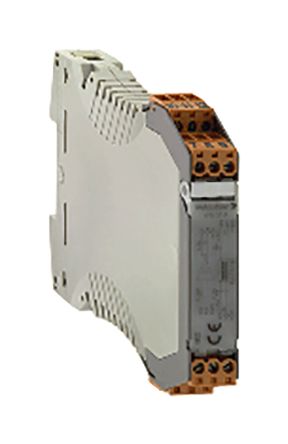

点击放大查看

8444950000

制造商	Weidmüller Holding AG & Co. KG
描述	Input Current Loop Feed 12-Pin CONDITIONER SIGNAL ANALOG 0-20MA DIN Rail 接口继电器模块, 0 → 20 mA, 4 → 20 mA
分类	集成电路接口IC传感器接口IC

对参数有疑问？问 AI 助手

商业参数

其他名称

WAS5 CCC LP I/I SC 1

标准包装数量

Bulk

电流	< 100 µA	精度	< 0.1 % of end value
频率	27-21-01-20	隔离	Passive isolator
量程（°/s）	0.5 mm²	负载电流	≤ 500 Ω
额定电压	300 V	输出电流	0...20 mA, 4...20 mA
输入数量	1	供电电压	via the input measuring circuit
输出数量	1	击穿电压	4 kVeff / 1 s
输入偏置电流	0(4)...20 mA current loop	最大额定电流	0 → 20 mA, 4 → 20 mA
输入输出比	0(4)...20 mA/0(4)...20 mA (1-channel)	最小输入电压	4 kVeff / 1 min.
输入偏置电流（最大）	0 → 20mA	冲击放电电流 (8/20µs)	6 kV

类型	WAS5 CCC LP 0-20/0-20mA	系列	*
ETIM 6*0	EC002653	GTIN（EAN）	4032248102099
描述	Markers – refer to Accessories.	配置	none
规格说明	Standard signal passive isolator, input-loop powered1channel passive isolator in 17.5 mm with, input-loop powered,for transmitting and isolating DC current signals 0/4...20 mAAdd-on housing for TS35 DIN rail installationDimensions: L/B/H 92.4/ 17.5/ 112.4 mmScrew connection/ Nominal cross-section 2.5 mm2Protection degree: IP 20 Input 0/4...20 mAOutput 0/4...20 mAVoltage drop approx. 3 V at RL 0 Ohm, 13 V at RL = 500 Ohm (20 mA)Load resistance < 500 OhmTransmission error < 0,1 % v. E.Auxiliary power 0/4...20 mA input current loopAmbient temperature range -25 °C...+70 °C Isolation EN 50178 , 2-way isolation up to 4 kV AC/DCTest voltage 6 kVRated voltage 300 V AC/DC at overvoltage category III and pollution degree 2Approvals cULus, cULusEX, CSA, GLType WAS5 CCC-LP 0-20/0-20mA	工程数据	EPLAN
固件版本	Passive isolator, Screw connection	其他规格	Approx. 3 V at RL = 0 Ω; approx. 13 V at RL = 500 Ω; (IIN =20 mA)
