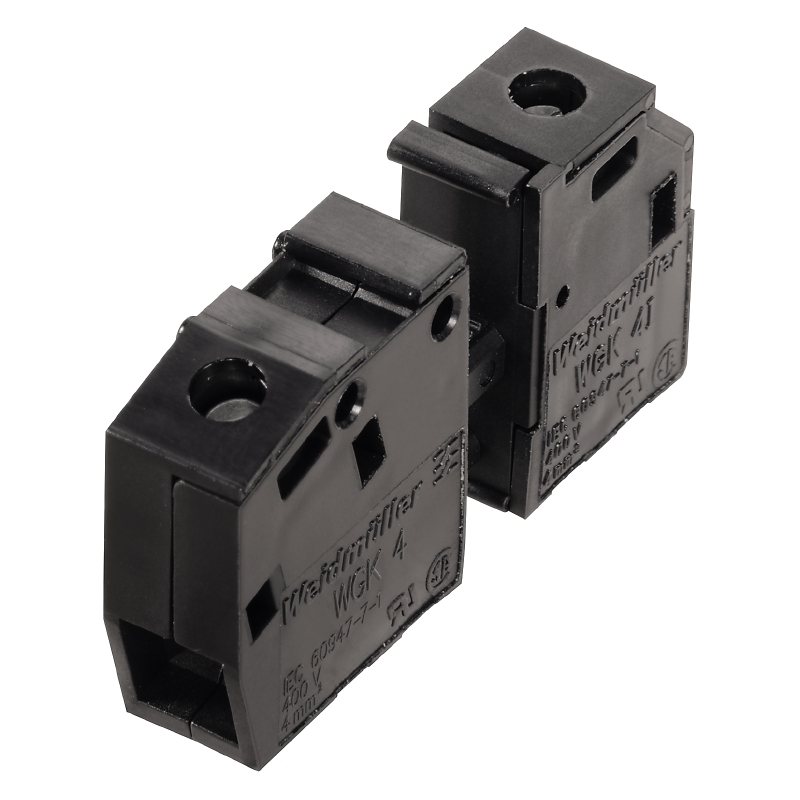

1936550000

制造商	Weidmüller Holding AG & Co. KG
描述	Conn Feed-Thru 2 POS Screw Panel Mount 30A YOKE CLAMP SCREW CONN GREY Non-Fused DIN Rail Terminal, 32A, 250V ,Screw Down Termination
分类	连接器解决方案接线端子螺丝接线端子

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Bulk

RoHS	Lead free / RoHS Compliant	合规性	IEC 60664-1, IEC 61984
认证	200039-1830694	认证机构	E60693
标准编号	30-21-18-11	认证机构标志	Specifications are maximum values, details - see approval certificate.
材料阻燃等级	V-0

颜色	Gray	宽度	0.319" (8.10mm)
高度	21.5 mm	长度	35.5 mm
重量	8.64 g	包装方式	Box
导线线规	10-30 AWG	端接方式	Screw
铆钉长度	M 3	最小扭矩	0.6 Nm
外壳颜色	Gray	安装类型	Panel Mount
接触镀层	tinned	排数	1
宽度（英寸）	0.319 inch	高度（英寸）	0.846 inch
长度（英寸）	1.398 inch	面板厚度	0.039 ~ 0.158" (1.0 ~ 4.0mm)
触头材料	E-Cu	总高度	21.5 mm
面板安装类型	2 Piece	剥线长度（范围）	8 mm
进/出口尺寸	180°	连接器颜色	Grey
触点数	2	绝缘材料 - 类型	Wemid (PA)
法兰上方插针尺寸	4 mm²	法兰下方引脚尺寸	0.5 mm²
大外径（直径）	6 mm²	小外径	0.5 mm²
线规或范围 - AWG	AWG 10	线规或范围 - mm²	AWG 30
后面板接线方式	Bolt/Screw Clamp - Wire Entry 90° to Panel	前面板接线方式	Bolt/Screw Clamp - Wire Entry 90° to Panel
最大瞬时扭矩（oz-in / mNm）	0.8 Nm

备注	Clearance and creepage distances to other components must be devised in accordance with the relevant application standard. This can be achieved in the device by full encapsulation or by the use of additional spacer plates. Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. Colours: BL = black; GN/YL = green yellow; none = grey Additional colours on request WGK: Rated voltage plastic walls: 1 - 4 mm = 500 V; metal walls: 1 - 2.5 mm = 400 V; metal walls: 2.5 - 4 mm = 250 V WGKV: Rated voltage plastic walls: 1 - 4 mm = 400 V; metal walls: 1 - 2.5 mm = 400 V; metal walls: 2.5 - 4 mm = 250 V VWGK: Rated voltage plastic walls: 1 - 4 mm = 500 V; metal walls: 1 - 4 mm = 500 V	类型	Feed-Thru
系列	WGK	ETIM 6*0	EC001283
产品特性	IEC: 500 V / 32 A / 0.5 - 6 mm²UL: 300 V / 30 A / AWG 30 - AWG 10	GTIN（EAN）	4032248664337
图例（文字）	RAL 7035	客户定制	No
工程数据	EPLAN	固件版本	OMNIMATE Power - series WGK, Feedthrough terminal, Rated cross-section: 4 mm², Screw connection, Wemid (PA), Grey, Direct mounting, Feed-through (bushing)
层数	1	工具类型/特性	0.6 x 3.5
每层位数	1
