点击放大查看

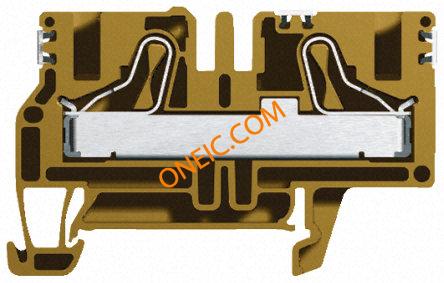

1896270000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | Conn Feed-Thru 2 POS ST 44A TERM BLOCK PDU 6/10 PUSH IN BLU Non-Fuse DIN Rail Terminal, 57A, 800V, Blue ,Push In Termination TERMINAL, PUSH-IN, PDU6/10, 2 WAY |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | 材料阻燃等级 | UL94 V-0 |
电气参数
| 电流 - UL | 44A | UL电压 | 600V |
| 电流 - IEC | 57A | IEC电压 | 800V |
| 额定电压 | 800 V | 最大额定电流 | 57A |
机械参数
| 颜色 | Blue | 间距 | :8.1mm |
| 重量 | 0.016 | 导线线规 | 8-14 AWG |
| 端接方式 | Push In | 外壳颜色 | Blue |
| 安装类型 | Straight | 连接器类型 | :Terminal Block, DIN Rail |
| 接触镀层 | :- | 排数 | 2 |
| 触头材料 | :- | 剥线长度（范围） | 14mm |
| 端子宽度 | 8.1mm | 端接样式 | Push In, Spring |
| 连接器颜色 | Blue | 触点数 | :2 |
| 位数 | 2 | 绝缘材料 - 材质 | Thermoplastic, Wemid |
| 线规或范围 - AWG | 8-16 AWG | 线规或范围 - mm² | 1.5-10mm² |
| 第一连接器安装类型 | :DIN Rail | ||
产品信息
| 类型 | Feed-Thru | 系列 | PDU |
| 层数 | 1 | 电路数 | 1 |
环境参数
| 工作温度 | +120°C | ||
