点击放大查看

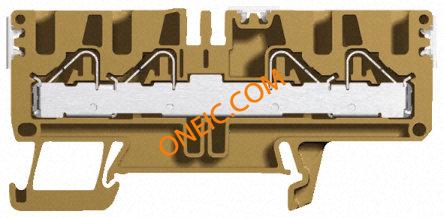

1896250000

制造商	Weidmüller Holding AG & Co. KG
描述	Conn Feed-Thru 4 POS ST 30A TERMINAL PDU 2.5/4/4AN BL Non-Fuse DIN Rail Terminal, 32A, 800V, Blue ,Push In Termination TERMINAL, PUSH-IN, PDU2.5/4, 4 WAY
分类	连接器解决方案接线端子DIN导轨接线端子

商业参数

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85369010	材料阻燃等级	UL94 V-0

电气参数

电流 - UL	30A	UL电压	600V
电流 - IEC	32A	IEC电压	800V
额定电压	800 V	最大额定电流	32A

机械参数

颜色	Blue	间距	:5.1mm
重量	0.012	导线线规	10-26 AWG
端接方式	Push In	外壳颜色	Blue
安装类型	Straight	连接器类型	:Terminal Block, DIN Rail
接触镀层	:-	排数	4
触头材料	:-	剥线长度（范围）	12mm
端子宽度	5.1mm	端接样式	Push In, Spring
连接器颜色	Blue	触点数	:4
位数	4	绝缘材料 - 材质	Thermoplastic, Wemid
线规或范围 - AWG	10-26 AWG	线规或范围 - mm²	0.5-6mm²
第一连接器安装类型	:DIN Rail

产品信息

类型	Feed-Thru	系列	PDU
层数	1	电路数	1

环境参数

工作温度

+120°C

文档与媒体

Modular Terminal Blocks Catalog

578410.pdf

相关型号

1635000000

weidmuller

WS 10/5 MC NEUTRAL -BX = 720 EA TAG MARKER 10X5MM WHT 720/BX Inkjet Printer Multi Card Markers TERMINAL MARKER, W/I/Z SERIES CONNECTORS, 5MM

¥81.5400

详情

1896320000

weidmuller

Connector Accessories End Plate Wemid Dark Beige TERMINAL END PLATE 2.5MM DRK BGE END PLATE, PAP 2.5/4/4AN P-series, End plate,PAP 2.5/4/4AN

¥4.0320

详情

FSD81-12-C

panduit

Ferrules Terminal 12AWG 20mm 5.4mm Tin Terminals INS FERRLE SNGL WIRE 12 AWG .47 FERRULE INS VNL AWG12 GY 5/8" InsulatedFerrule,singlewire,12AWG,.47"pinlength,grayDINendsleeve Insulated Ferrule, Single Wire, 12 AWG (4.0mm), .47"(12.0mm) Pin Length, Gray DIN End Sleeve, Pack of 100

¥1.4918

详情

1908960000

weidmuller

Conn Pluggable Jumper M 20 POS TERMINAL CROSS CONN ZQV 2.5/20

¥63.4200

详情

9540000000

weidmuller

Connector Accessories End Bracket Dark Beige BRACKET END FOR TS35 TERMINAL Weidmuller 9540000000 End Bracket Terminal Block, Series: Z END BRACKET, TS 35 DIN MOUNTING RAIL

¥5.6880

详情

9037530000

weidmuller

Connector Accessories Wire End Ferrule With Plastic Collars Gray FERRULE H 4.0/22D ZH GREY FERRULE, TWIN ENTRY, 4MM Bootlace ferrule; insulated, double; copper; 4mm2; 12mm; tinned

¥99.6600

详情

暂无图片

1916190000

weidmuller

Conn Test Adapter 1 POS Screw ST 1 Port TERMINAL TEST ADAPTER PDU 2.5/4

¥27.2160

详情

1608860000

weidmuller

Conn Pluggable Jumper M 2 POS 5.1mm ST JUMPER 25A 2POS WTR 2.5/ZZ Weidmuller 1608860000 Cross Connector Terminal Block, Series: ZQV Acce Comb bridge; Application: ZDU2.5

¥2.3976

详情

1608870000

weidmuller

Conn Pluggable Jumper M 3 POS 5.1mm ST JUMPER 25A 3POS WTR 2.5/ZZ Weidmuller 1608870000 Cross Connector Terminal Block, Series: ZQV TERMINAL BLOCK JUMPER, 3WAY, 5.1MM Comb bridge; Application: ZDU2.5

¥4.1040

详情

1608940000

weidmuller

Conn Pluggable Jumper M 10 POS 5.1mm ST JUMPER 25A 10POS WTR 2.5/ZZ Weidmuller 1608940000 Cross Connector Terminal Block, Series: ZQV TERMINAL BLOCK JUMPER, 10WAY, 5.1MM Comb bridge; Application: ZDU2.5

¥22.3920

详情

1609801044

weidmuller

Fuse Terminal Block 15A 500V Screw DIN Rail DEK 5/5 MULTI CARD 1000/BX TERMINAL BLOCK MARKER, 5MM, WHT, MULTICARD 1000

¥280.8000

详情

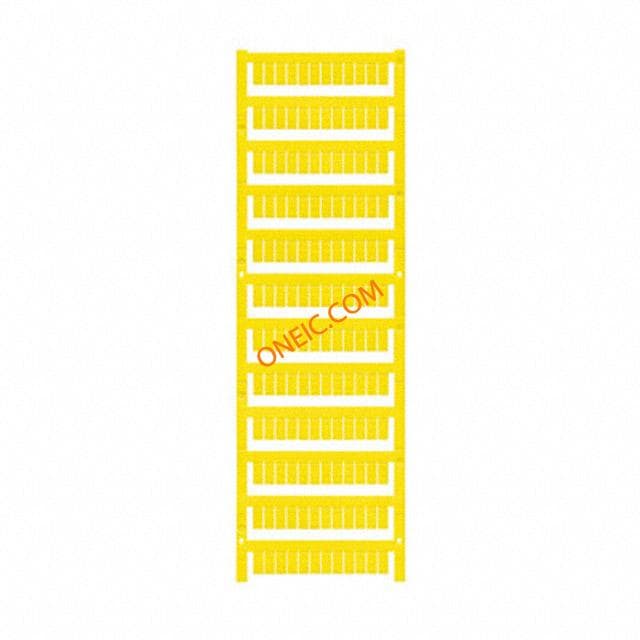

1773531687

weidmuller

Connector Accessories Connector Marker Polyamide Yellow TERMINAL MARKER WS 10/5 BLANK

¥530.7120

详情

1792000000

weidmuller

WS 10/5 MC MIDDLE NEUTRAL -BX = 720 EA TERMINAL MARKER WS 10/5 MC Inkjet Printer Multi Card Markers

¥454.8960

详情

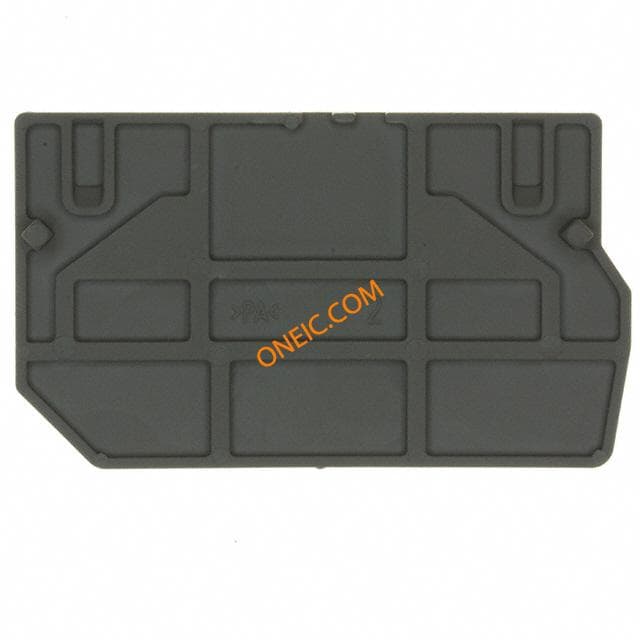

1896300000
