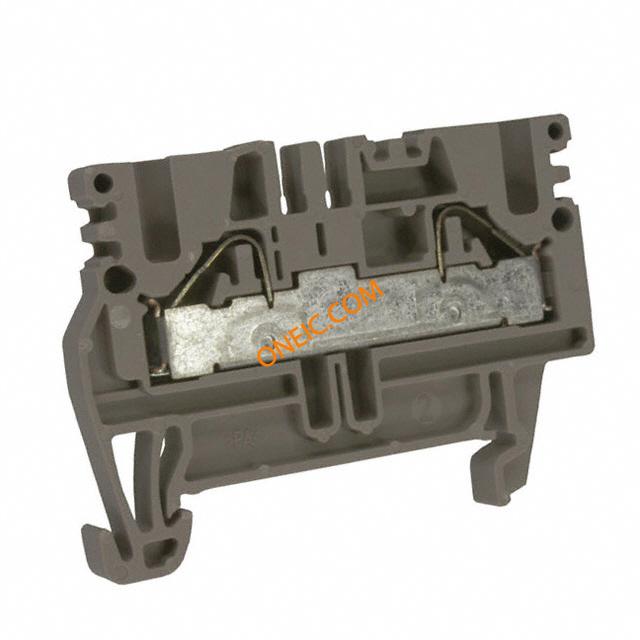

点击放大查看
1896140000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | Conn Feed-Thru 2 POS ST 44A TERM BLOCK PDU 6/10 PUSH IN TERMINAL, PUSH-IN, PDU6/10, 2 WAY |
| 分类 |
商业参数
| 其他名称 | 281-2570 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | 材料阻燃等级 | UL94 V-0 |
电气参数
| 电流 - UL | 44A | UL电压 | 600V |
| 电流 - IEC | 57A | IEC电压 | 800V |
| 最大额定电流 | :44A | ||
机械参数
| 颜色 | Beige | 深度 | :8.1mm |
| 间距 | :8.1mm | 宽度 | :40mm |
| 长度 | :64mm | 重量 | 0.016 |
| 导线线规 | 8-14 AWG | 外壳颜色 | Dark Beige |
| 安装类型 | Straight | 连接器类型 | :Terminal Block, DIN Rail |
| 接触镀层 | :- | 排数 | 2 |
| 触头材料 | :- | 剥线长度（范围） | 14mm |
| 端子宽度 | 8.1mm | 端接样式 | Push In, Spring |
| 连接器颜色 | :Dark Beige | 触点数 | :2 |
| 位数 | 2 | 绝缘材料 - 材质 | Thermoplastic, Wemid |
| 线规或范围 - AWG | 8-16 AWG | 线规或范围 - mm² | 1.5-10mm² |
| 第一连接器安装类型 | :DIN Rail | ||
产品信息
| 类型 | Feed-Thru | 系列 | :- |
| 层数 | 1 | ||
