点击放大查看
1838340000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | Conn Shrouded Header M 15 POS 5.08mm Solder ST Thru-Hole Box TERM BLOCK HDR 15POS VERT 5.08MM HEADER, 5.08MM, TOP, SMT, 15WAY |
| 分类 |
商业参数
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85366990 | ||
电气参数
| 电流 | 10A | 电压 | 300V |
| 量程（°/s） | :WEIDMULLER - SL-SMT 5.08 Series | ||
机械参数
| 颜色 | Black | 间距 | 5.08 mm |
| 重量 | 0.0068 | 包装方式 | Bulk |
| 端接方式 | Solder | 安装类型 | Through Hole |
| 接触镀层 | Tin | 排数 | 1 |
| 触头材料 | :Copper, Tin | 排针方向 | Vertical |
| 触点数 | 15 | 接触件端接 | :Through Hole Vertical |
| 位数 | 15 | 接线端子类型 | Header, Male Pins, Shrouded (4 Side) |
| 第一连接器安装类型 | :Straight | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | M |
| 层数 | 1 | 每层位数 | 15 |
文档与媒体
相关型号
1610620000
weidmuller
Conn Terminal Block SKT 15 POS 5.08mm Crimp ST Cable Mount 10A Box TERM BLOCK PLUG 15POS STR 5.08MM
1500860000
weidmuller
Conn Terminal Block SKT 15 POS 5.08mm Screw ST Cable Mount 10A Box TERM BLOCK PLUG 15POS STR 5.08MM
1649500000
weidmuller
Conn Terminal Block SKT 15 POS 5.08mm Crimp ST Cable Mount 10A Box TERM BLOCK PLUG 15POS STR 5.08MM
1943710000
Weidmuller
CONN PLUG TERM BLCK 5.08MM 15POS TERM BLOCK PLUG 15POS STR 5.08MM
1943940000
Weidmuller
CONN PLUG TERM BLCK 5.08MM 15POS TERM BLOCK PLUG 15POS STR 5.08MM
1945880000
Weidmuller
CONN PLUG TERM BLCK 5.08MM 15POS TERM BLOCK PLUG 15POS 5.08MM
1946110000
Weidmuller
CONN PLUG TERM BLCK 5.08MM 15POS TERM BLOCK PLUG 15POS 5.08MM
1946380000
Weidmuller
CONN PLUG TERM BLCK 5.08MM 15POS TERM BLOCK PLUG 15POS 5.08MM
1946690000
Weidmuller
CONN PLUG TERM BLCK 5.08MM 15POS TERM BLOCK PLUG 15POS 5.08MM

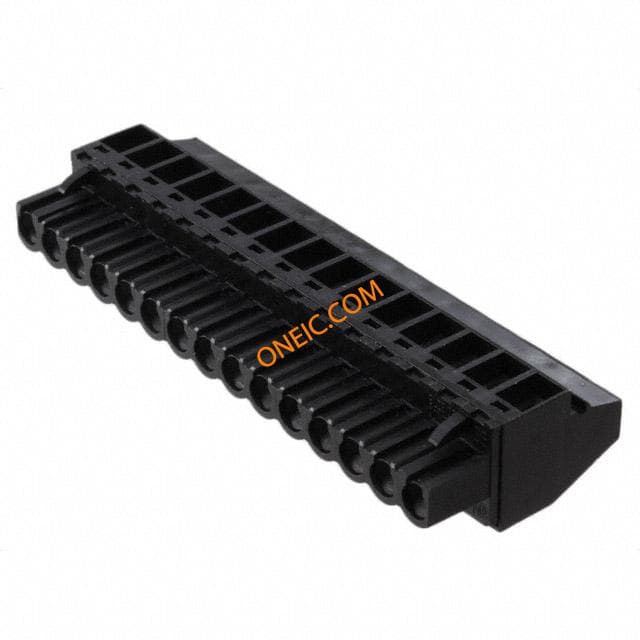

1948370000
