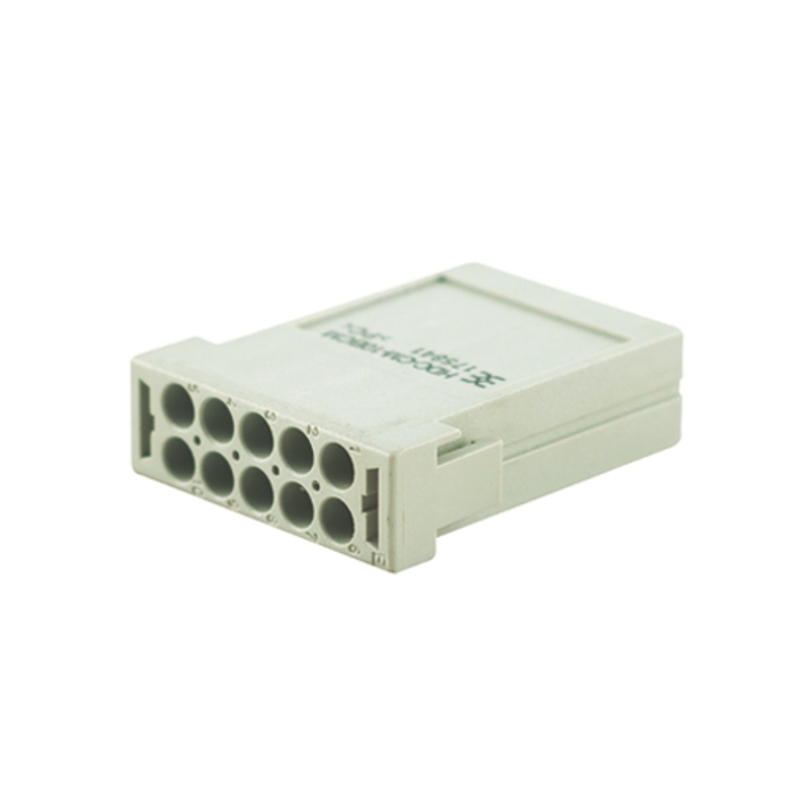

1758410000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | Conn Housing PL 10 POS Crimp ST Panel Mount HDC-CM-10BCM GREY |
| 分类 |
商业参数
| 其他名称 | HDC-CM-10BCM GREY | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准编号 | 30-21-18-01 |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 频率 | 27-44-02-05 | 电流比 | 10 A |
| 额定电压 | 250V | 极数 | 10 |
| 体积电阻 | ≤ 4mΩ | 额定直流电压 | 4 kV |
| 最大额定电流 | 10A | 绝缘电阻 | 1011 Ω |
| 最小磁芯截面积 (Amin) mm² | 0.14 mm² | ||
机械参数
| 宽度 | 11.4 mm | 高度 | 40.4 mm |
| 长度 | 34 mm | 重量 | 12.6 g |
| 材料（通用） | Polycarbonate, glass fibre reinforced | 包装方式 | Bulk |
| 导线线规 | 14-26 AWG | 触头类型 | ConCept HD |
| 安装类型 | Straight | 电缆直径 | 2.5 mm² |
| 连接器类型 | Module without Contacts | 排数 | 2 |
| 宽度（英寸） | 0.449 inch | 高度（英寸） | 1.591 inch |
| 长度（英寸） | 1.339 inch | 剥线长度（范围） | 8 mm |
| 端接样式 | Crimp | 触点数 | 10 |
| 绝缘材料 - 类型 | PC glass-fibre reinforced (UL-listed and railway-certified) | 位数 | 10 |
| 总供货长度 | 34 mm | 线规或范围 - mm² | AWG 26 |
产品信息
| 类型 | Housing | 连接器性别 | PL |
| 系列 | ConCept module | ETIM 6*0 | EC000438 |
| GTIN（EAN） | 4032248019632 | 描述 | Accessories, see chapter J - Tools, see chapter K |
| 图例（文字） | Combine this module with the HD crimp contacts. Crimp contacts should be ordered separately. | 连接类型 | Screw connection via module frame |
| 固件版本 | Heavy Duty Connectors, HDC insert, ConCept module | 其他规格 | III |
| 技术数据描述文本 | Rated voltage 320 V / 4 kV at pollution degree 2. For conductor cross-sections ≤ 0.75 mm², you must use wire-end ferrules at the connection to the PE conductor.When used properly and as designated, the listed connectors may not be connected or disconnected if there is a live voltage or load! | ||
环境参数
| ET（伏秒积） | EC001121 | 防护等级 | 3 |
文档与媒体
相关型号

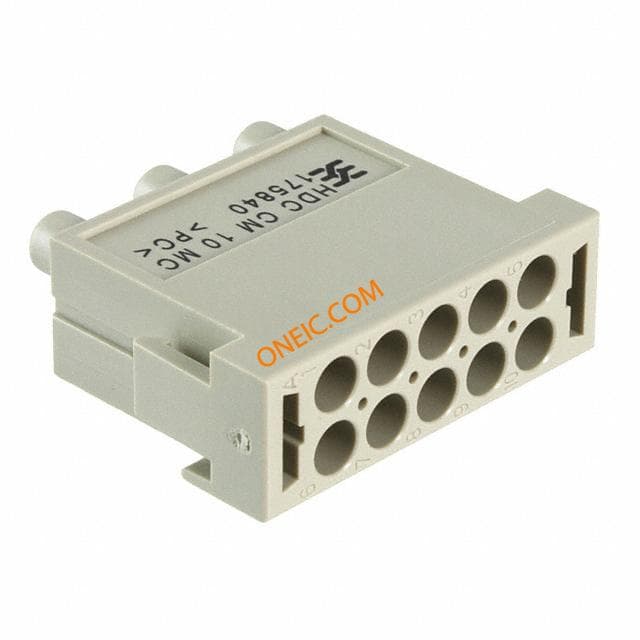

1758400000
