点击放大查看

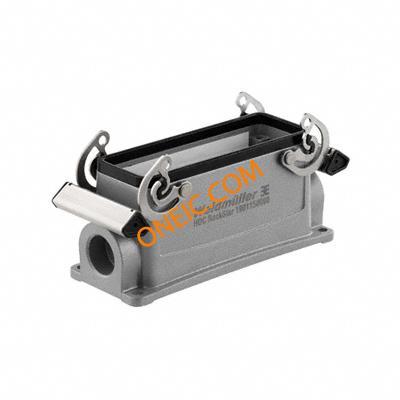

1661510000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | HDC 24B SBU 1PG21G -EA CONN BASE HOUSING HE SIZE8 HOUSING, BULKHEAD, PG21 |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| SVHC | :No SVHC (20-Jun-2013) | 海关税号 | 76169910 |
机械参数
| 尺寸 | 8 | 重量 | 0.425 |
| 材料（通用） | :Aluminium Die-cast | 包装方式 | Bulk |
| 出线方向 | :90° | 螺纹尺寸 | PG21 |
| 外壳颜色 | Gray | 连接器类型 | Base - Box Mount |
| 外壳涂层 | Powder Coated | 本体材料 | :Aluminium |
| 壳体材料 | Aluminum, Die Cast | 尺寸/外形 | 5.669" L x 2.264" W x 2.520" H (144.00mm x 57.50mm x 64.00mm) |
| 连接器颜色 | :Grey | 外壳尺寸-插件 | :8 |
产品信息
| 样式 | Side Entry | 系列 | :RockStar |
| 锁定位置 | Locking Clip on Base Bottom | 附件类型 | :Housing |
| 适用产品/相关产品 | :RockStar Heavy Duty Connectors | ||
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | ||
