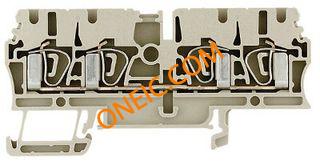

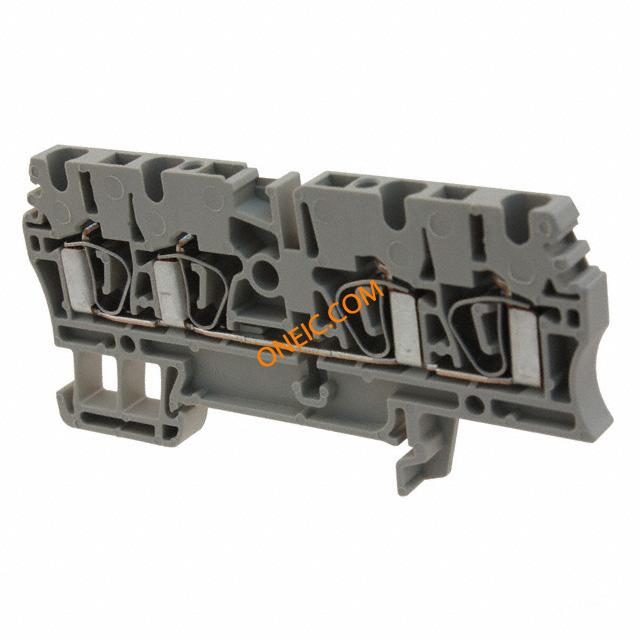

1608570000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | Conn Feed-Thru 4 POS ST 25A TERM BLOCK 600V 25A WM BEIGE Non-Fuse DIN Rail Terminal, 27A, 800V, Beige ,Clamp Termination TERMINAL BLOCK, DIN RAIL, 4POS, 30-12AWG Splice terminal: rail; ways:1; terminals:4; beige; 2.5mm2; wemid |
| 分类 |
商业参数
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 25A | UL电压 | 600V |
| 电流 - IEC | 24A | IEC电压 | 800V |
| 额定电压 | 800 V | 极数 | 1 |
| 连接器阻抗 | rail | 最大额定电流 | 27A |
机械参数
| 颜色 | Beige | 间距 | :3.5mm |
| 宽度 | 5.1mm | 高度 | 39.5mm |
| 重量 | 0.009 | 导线线规 | 12-26 AWG |
| 端接方式 | Clamp | 基体材料 | wemid |
| 外壳颜色 | Dark Beige | 安装类型 | Straight |
| 连接器类型 | :DIN Terminal Block | 接触镀层 | :- |
| 安装导轨 | TS35 | 排数 | 4 |
| 包装数量 | 100 | 剥线长度（范围） | 10mm |
| 端子宽度 | 5.1mm | 端接样式 | Push In, Spring |
| 连接器颜色 | Beige | 触点数 | :4 |
| 位数 | 4 | 最大电缆长度 | 2.5mm2 |
| 绝缘材料 - 材质 | Thermoplastic, Wemid | 线规或范围 - AWG | 12-30 AWG |
| 线规或范围 - mm² | 0.5-4mm² | 第一连接器安装类型 | :DIN Rail |
产品信息
| SPG | 100 | 类型 | Feed-Thru |
| 系列 | ZDU | 单元数量 | 1 |
| 层数 | 1 | 电路数 | 1 |
环境参数
| 工作温度 | +120°C | ||
文档与媒体
相关型号
1683870000
weidmuller
Connector Accessories End Plate Polyamide Gray TERMINAL END PLATE 2MM GREY
1683840000
weidmuller
Connector Accessories End Plate Polyamide Green TERMINAL END PLATE 2MM GREEN
1792000000
weidmuller
WS 10/5 MC MIDDLE NEUTRAL -BX = 720 EA TERMINAL MARKER WS 10/5 MC Inkjet Printer Multi Card Markers
TMS-SCE-3/16-2.0-9
TE Connectivity / Raychem
Wire Identification HS-SLEEVE 3/16 WH PRICE PER PC Wire & Harness ID Products White hi-spec military marker,4.8mm i/d Cable Markers Cross Linked Polyolefin White Cable Markers Cross Linked Polyolefin White Product Highlights:TMS-SCE SeriesMarker SleeveMilitary GradeRadiation Cross-Linked Polyolefin MaterialShrink Ratio = 3:1 MARKER, HEATSHRINK, HIGH SPEC GRADE Label;HeatShrinkableWireIDSleeve-White Shrink markers white, TMS-SCE-3/16-2.0-9, TE Connectivity

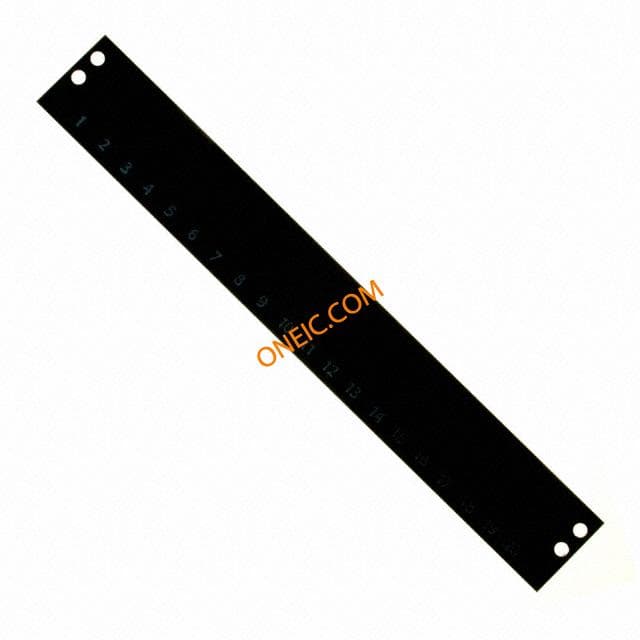

MS-20-140
