点击放大查看

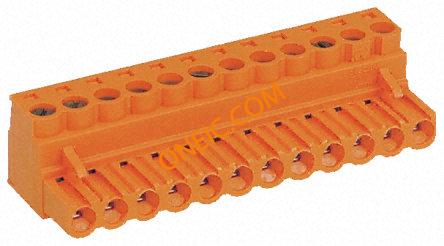

1527760000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | Conn Terminal Block SKT 15 POS 5.08mm Screw RA Cable Mount 15A Box TERM BLOCK PLUG 15POS STR 5.08MM 15way rising clamp PCB plug,5.08mm pitch |
| 分类 |
商业参数
| 其他名称 | BLZ 5.08/15 OG | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 V | 最大额定电流 | 15A |
机械参数
| 颜色 | Orange | 深度 | 20mm |
| 间距 | 5.08 mm | 宽度 | 15.2mm |
| 长度 | 76.2mm | 包装方式 | Bulk |
| 导线线规 | 12-22 AWG | 端接方式 | Screw |
| 外壳颜色 | Orange | 安装类型 | Cable Mount |
| 排数 | 1 | 插头进线方向 | 180° |
| 连接器颜色 | Orange | 触点数 | 15 |
| 位数 | 15 | 接线端子类型 | Plug, Female Sockets |
产品信息
| 类型 | Terminal Block | 连接器性别 | SKT |
| 产品特性 | Retention Latches (Non-Wire Side) | 层数 | 1 |
| 每层位数 | 15 | ||
