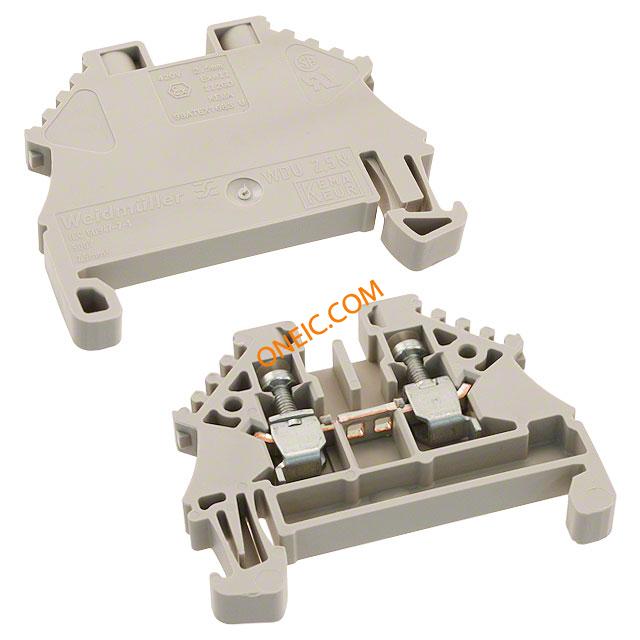

1040800000

制造商	Weidmüller Holding AG & Co. KG
描述	Conn Feed-Thru 2 POS Screw Cable Mount 25A CONN TERM BLOCK FEED THRU 5MM TERMINAL BLOCK, DIN RAIL, 2POS, 22-12AWG
分类	连接器解决方案接线端子DIN导轨接线端子

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Bag

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	00000000
材料阻燃等级	UL94 V-0

电气参数

电流 - UL	20A	UL电压	300V
电流 - IEC	24A	IEC电压	500V

机械参数

颜色	Beige	重量	0.005
导线线规	12-22 AWG	端接方式	Screw
外壳颜色	Beige	安装类型	Cable Mount
连接器类型	:DIN Terminal Block	接触镀层	:-
排数	2	触头材料	:-
剥线长度（范围）	10mm	端子宽度	5.1mm
端接样式	Screw	触点数	:2
位数	2	绝缘材料 - 材质	Thermoplastic, Wemid
线规或范围 - AWG	12-30 AWG	线规或范围 - mm²	0.5-4mm²
第一连接器安装类型	:DIN Rail

产品信息

类型	Feed-Thru	系列	:W
层数	1

文档与媒体

PDF 文档

1040800000

PDF 文档

1676823.pdf

相关型号

1072100000

weidmuller

Connector Accessories Cover White TERMINAL COVER WAD 4 WHITE

¥4.4744

详情

1693880000

weidmuller

Conn Cross Jumper M 10 POS ST CONN JUMPER TERM BLOCK 5.0MM Weidmuller 1693880000 Cross Connector Terminal Block, Series: ZQV TERMINAL BLOCK JUMPER, 10WAY, 5.1MM Comb bridge; Application: WDU2.5

¥27.1800

详情

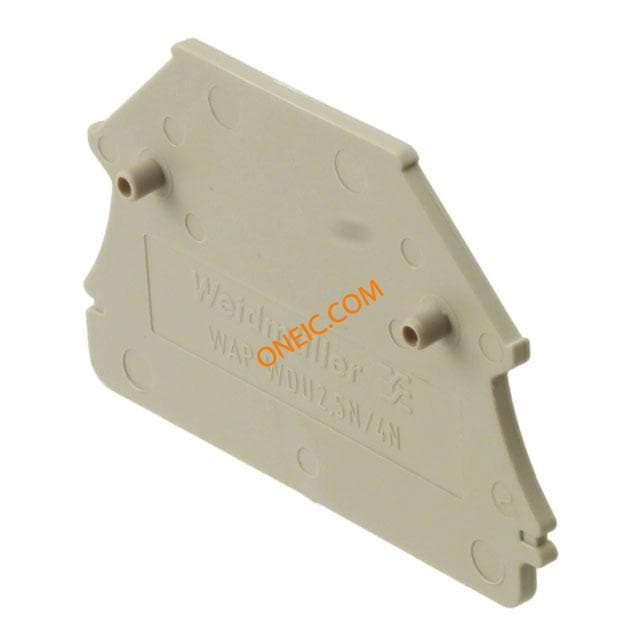

1060000000
