点击放大查看

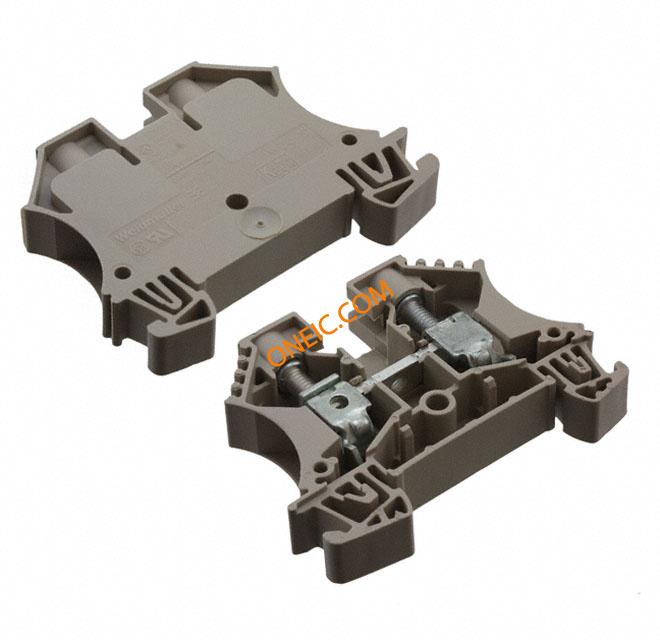

1020300000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | Conn Feed-Thru 2 POS Screw ST 65A CONN TERM BLOCK FEED THRU 10MM Non-Fuse DIN Rail Terminal, 76A, 1000V, Beige ,Screw Down Termination TERMINAL BLOCK, DIN RAIL, 2POS, 16-6AWG |
| 分类 |
商业参数
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 65A | UL电压 | 600V |
| 电流 - IEC | 57A | IEC电压 | 1000V |
| 额定电压 | 1000 V | 最大额定电流 | 76A |
机械参数
| 颜色 | Beige | 重量 | 0.054 |
| 导线线规 | 6-18 AWG | 端接方式 | Screw |
| 外壳颜色 | Dark Beige | 安装类型 | Straight |
| 连接器类型 | :DIN Terminal Block | 接触镀层 | :- |
| 触头材料 | :- | 剥线长度（范围） | 12mm |
| 端子宽度 | 9.9mm | 端接样式 | Screw |
| 连接器颜色 | Beige | 触点数 | 2 |
| 位数 | 2 | 绝缘材料 - 材质 | Thermoplastic, Wemid |
| 线规或范围 - AWG | 6-16 AWG | 线规或范围 - mm² | 1.5-16mm² |
| 第一连接器安装类型 | :DIN Rail | ||
产品信息
| 类型 | Feed-Thru | 系列 | WDU |
| 层数 | 1 | 电路数 | 1 |
环境参数
| 工作温度 | +120°C | ||
相关型号
0299600000
weidmuller
Conn Test Plug PL 1 POS ST 1 Port PLUG TEST PS4 4.0MM SOCKET
1072200000
weidmuller
WAP 2.5-10,WM,GREEN -EA ENDPLATE 1.5MM WDU 2.5-10 WM GN
1609900000
weidmuller
Connector Accessories White Marker Tag Polyamide 66 TAG MARKER 12X6MM WHT 600/BX

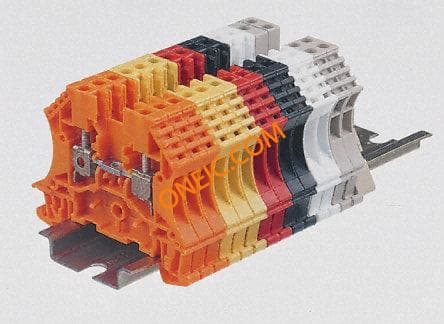

1050040000
weidmuller
Connector Accessories End Plate/Intermediate Plate Polyamide Red ENDPLATE 1.5MM WDU 2.5-10 PA RD Weidmuller 1050040000 End Plate Terminal Block, Series: W Weidmuller W 系列 端板
1050180000
weidmuller
Connector Accessories End Plate Wemid Blue/Light Blue ENDPLATE WTW 2.5-10 WM BLUE End/partition plate; Application: WDU; blue; max.125°C
1053560000
weidmuller
Connector Accessories Connector Marker Polyamide 66 Yellow CVR LIGHTNING SYMBOL WAD 8 50/PK
0280600000
weidmuller
Conn Test Jack SKT 1 POS ST 1 Port SOCKET SAK 2.5 WDU 4/6/10
1050020000
weidmuller
Connector Accessories End Plate/Intermediate Plate Wemid Yellow ENDPLATE 1.5MM WDU 2.5-10 WM YL Weidmuller 1050020000 End Plate Terminal Block, Series: W Weidmuller W 系列 端板
0169900000
weidmuller
Conn Test Socket SKT 1 POS ST 1 Port SOCKET STB 14 SAK 6N/10/16 SAKT
1050050000
weidmuller
Connector Accessories End Plate/Intermediate Plate Wemid Gray ENDPLATE 1.5MM WDU 2.5-10 WM GY
1050960000
weidmuller
Connector Accessories Connector Marker Polyamide 66 beige TAG CARRIER FOR W-SERIES 50/PK

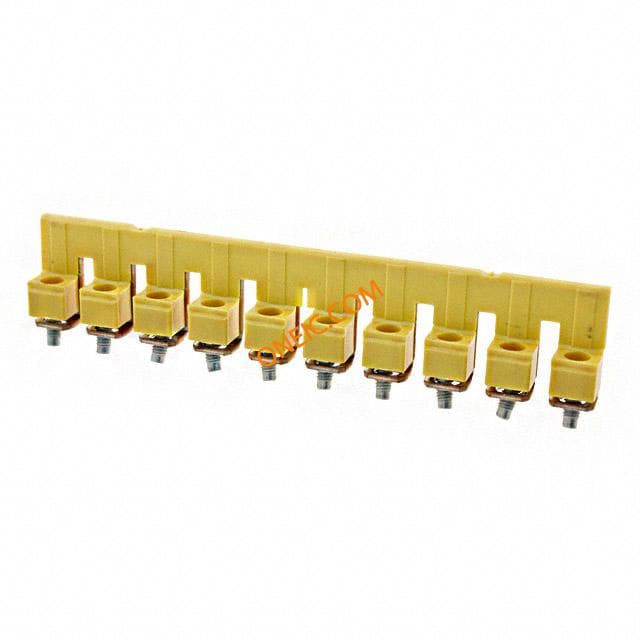

1052460000
weidmuller
Conn Jumper 10 POS ST CONN JUMPER TERM BLOCK 10.0MM Weidmuller 1052460000 Cross Connector Terminal Block, Series: WQV
1609920000
weidmuller
Connector Accessories Connector Marker Polyamide White TAG MARKER 12X6.5MM WHT 540/BX WS 12/6,5 MULTICARD TERMINAL MARKER, 540 PC(S)

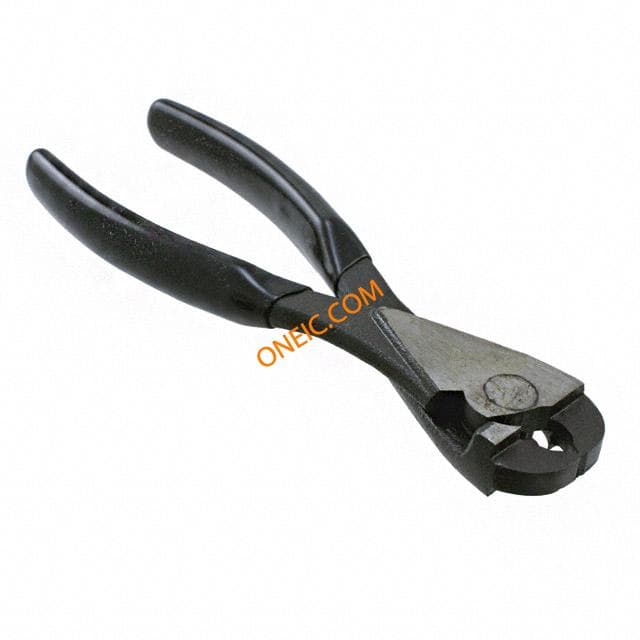

9004500000
