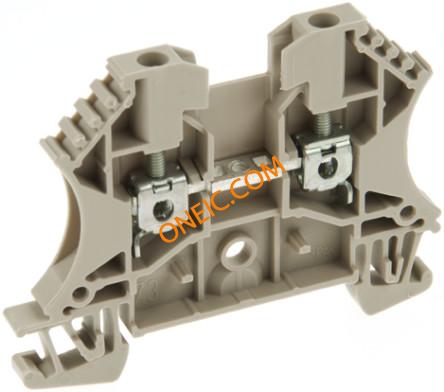

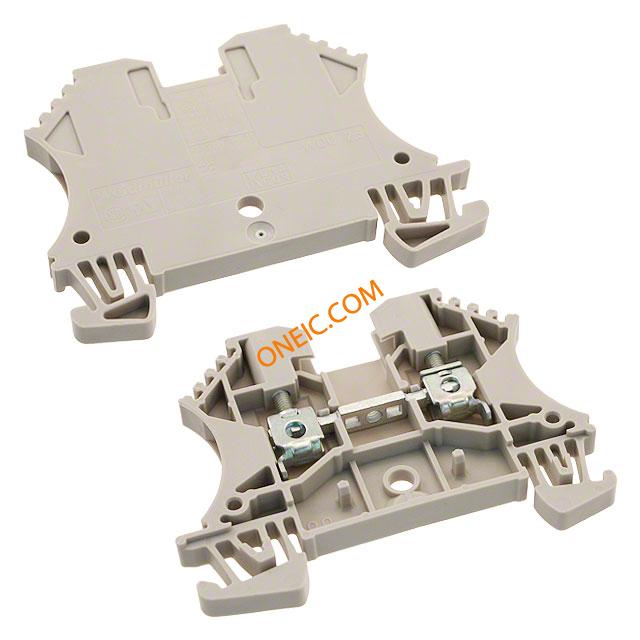

1020000000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | WDU 2.5,WM,BG CONN TERM BLOCK FEED THRU 5MM WDU 2.5 standard terminal,24A Non-Fuse DIN Rail Terminal, 32A, 800V, Beige ,Screw Down Termination Standard Terminal Block Klemmen WDU 2.5 TERMINAL BLOCK, DIN RAIL, 2POS, 30-12AWG Splice terminal: rail; ways:1; terminals:2; beige; 2.5mm2; wemid |
| 分类 |
商业参数
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85366910 |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 25A | UL电压 | 600V |
| 电流 - IEC | 24A | IEC电压 | 800V |
| 额定电压 | 800 V | 极数 | 1 |
| 连接器阻抗 | rail | 最大额定电流 | 32A |
机械参数
| 颜色 | Beige | 间距 | :2.5mm |
| 宽度 | 5.1mm | 重量 | 0.005 |
| 导线线规 | 30 → 12 AWG | 端接方式 | Screw Down |
| 基体材料 | wemid | 安装类型 | screw terminal |
| 连接器类型 | :DIN Terminal Block | 接触镀层 | :- |
| 安装导轨 | TS35 | 包装数量 | 100 |
| 剥线长度（范围） | 10mm | 端子宽度 | 5.1mm |
| 端接样式 | Screw | 连接器颜色 | Beige |
| 触点数 | :2 | 位数 | 2 |
| 最大电缆长度 | 2.5mm2 | 绝缘材料 - 材质 | Thermoplastic, Wemid |
| 线规或范围 - AWG | 12-30 AWG | 线规或范围 - mm² | 0.5-4mm² |
| 第一连接器安装类型 | :DIN Rail | ||
产品信息
| SPG | 100 | 类型 | Feed Through |
| 系列 | WDU | 单元数量 | 1 |
| 层数 | 1 | ||
环境参数
| 工作温度 | +120°C | ||
