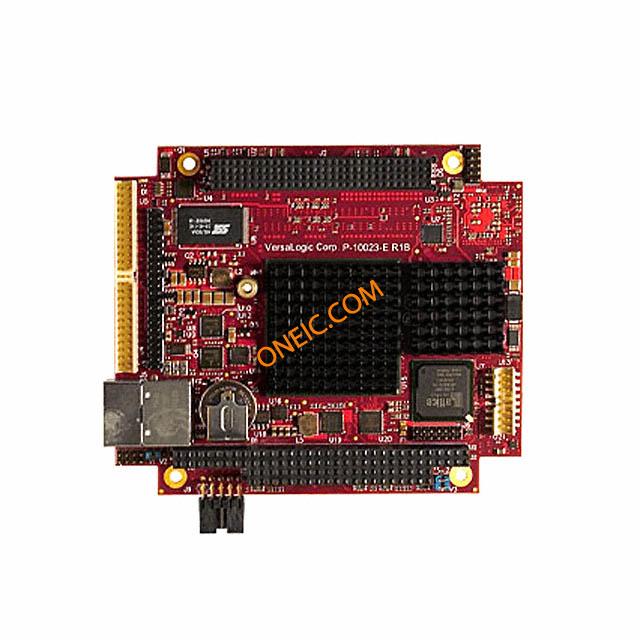

VL-EPM-24SU
| 制造商 | VersaLogic Corporation |
| 描述 | SBC ATOM Z530P 1.6 GHZ MAX 2GB |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
电气参数
| 转速 | 1.6GHz | 以太网 | 10/100 |
| 功率（瓦） | 5W | 视频输出接口 | LVDS |
| 看门狗定时器 | Yes | 数字I/O线数 | 0 |
| RS-232（422、485） | 4 | 模拟输入/输出 | 0:0 |
机械参数
| 尺寸/外形 | 3.6" x 3.8" (90mm x 96mm) | ||
产品信息
| USB | USB 2.0 (7) | 外形规格 | PC/104 |
| 核心处理器 | Atom Z530P | 核心数 | 1 |
| 扩展接口/总线 | PC/104-Plus noPassThru | RAM容量/已安装 | 2GB/0GB |
环境参数
| 冷却类型 | Heat Sink | 存储接口 | ATA100, IDE DOM |
| 工作温度 | 0°C ~ 60°C | ||
文档与媒体
相关型号
VL-CBR-2014
VersaLogic Corporation
LVDS TO VGA ADAPTER
VL-MM8-2EBN
VersaLogic Corporation
2GB, DDR2 EX TEMP ROHS
VL-CBR-1008
VersaLogic Corporation
ATX TO EPM POWER ADAPTER
VL-CBR-2012
VersaLogic Corporation
20" 24-BIT LVDS CABLE
VL-MM8-1EBN
VersaLogic Corporation
1GB, DDR2 EX TEMP ROHS
VL-HDW-108
VersaLogic Corporation
10 PACK NYLON SCREWS
VL-CBR-2010
VersaLogic Corporation
20" LVDS CABLE; HIROSE CONNECTOR

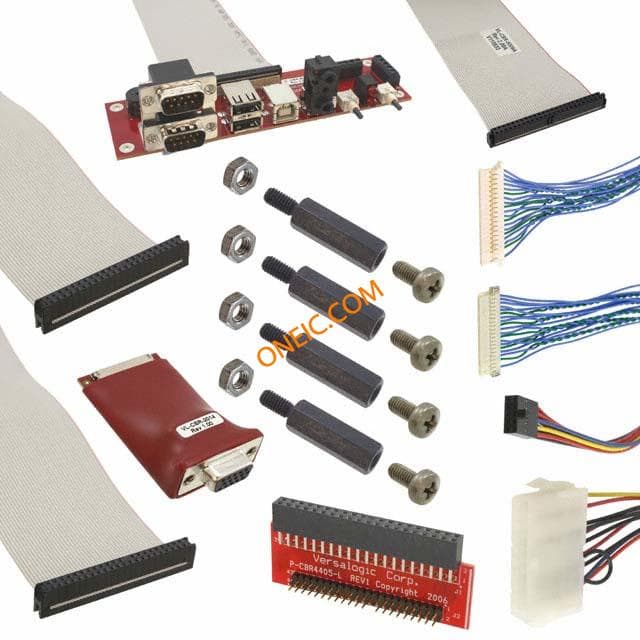

VL-CKR-TIGER
