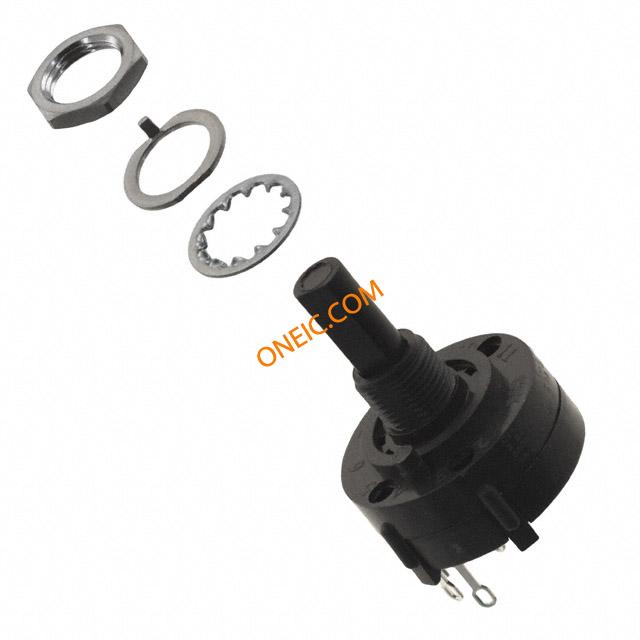

A10305RNZQ
| 制造商 | Toshiba Corporation |
| 描述 | Switch Rotary SP3T 3 Flatted Shaft Solder Lug 2.5A 125VAC 125VDC Switch Rotary N.O./N.C. SP3T 3 Flatted Shaft Solder Lug 2.5A 125VAC 125VDC Rotary SW ROTARY SP SLD LUG 3POS 125V Rotary Switches Switch Rotary Sp Sld Lug 3Pos |
| 分类 |
商业参数
| 最小起订量 | 50 | 单位包装 | 1 |
| 产品类别 | Rotary Switches | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 125@(CSA/UL) V | 最大额定电流 | 2.5@125VAC A |
| 最小输入电压 | 125 V | 开关功能/额定值 | N.O./N.C. |
| 触点额定值 @ 电压 | 2.5A @ 125VAC | ||

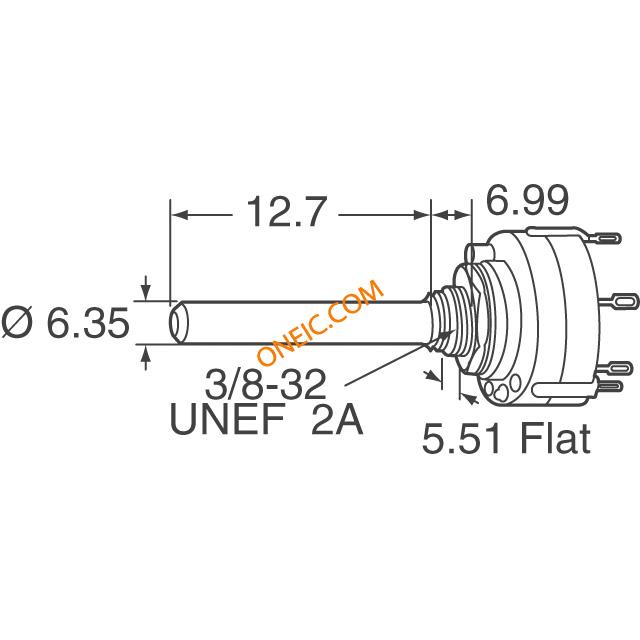

机械参数
| 深度 | 26.19 | 高度 | 41.54 |
| 方向 | Vertical | 触头类型 | Non Shorting |
| 致动器类型 | Flatted (6.35mm dia) | 触点形状 | 30 deg |
| 安装类型 | Panel Mount | 端子类型 | Solder Lug |
| 行程角度 | 30° | 接触镀层 | Silver |
| 触头材料 | Coin Silver | 总长度 | 26.19 |
| 执行器材料 | Glass/Nylon 6/6 | 端接样式 | Solder Lug |
| 按钮样式/尺寸 | Flatted Shaft | 位数 | 3 |
| 开关驱动电平 | SP3T | 每层极数 | 1 |
| 外壳与棱镜材料 | N/A/(Glass/Nylon 6/6) | ||
产品信息
| 系列 | A | 电气寿命 | 300000 |
| 叠数 | 1 | 每层电路数 | SP3T |
环境参数
| 工作温度 | -30 to 85 °C | ||
