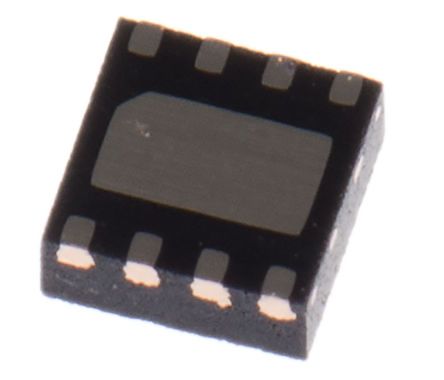

XTR117AIDRBT
| 制造商 | Texas Instruments Incorporated |
| 描述 | Current-Loop Transmitter 8-Pin VSON EP T/R Current Sense Amplifiers XTR117 4-20mA Crnt Loop Transmitter IC TX 4-20MA CURR-LOOP 8SON CURRENT TRANSMITTER 4-20MA, SON-8 XTR117 4-20mA Current Loop Transmitter 电流回路发送器, 8针 SON封装 Sensor Interface XTR117 4-20mA Crnt Loop Transmitter |
| 分类 |
商业参数
| 其他名称 | 296-19487-2 | 产品类别 | Current Sense Amplifiers |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 250 |
| 标准封装名称 | SON | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 增益 | :100dB | 输出端 | 50 |
| 接口 | 2-Wire | 输入类型 | Voltage |
| 输入范围 | 250uA | 输出类型 | Voltage |
| 传感器类型 | :Current | 输出范围 | 0.2 to 25 |
| 负载电压 | 7.5 to 40 | 额定电压 | 5 V |
| 输出电流 | 20mA | 供电电压 | 40 V |
| 失真额定值（如THD） | 0.02 | 测量误差 | 0.4 |
| 辅助电压 | 5 | 输入偏置电流 | :-35nA |
| 失调电压漂移 | 6 | ADC/DAC 数量 | :1 |
| 最小输入电压 | 100 uV | 输出电流/通道 | :25mA |
| 供电电压 (Vcc/Vdd) | 40 | 共模瞬态抗扰度（最小） | Extended Industrial |
机械参数
| 宽度 | 3.15(Max) | 重量 | 0.000847 oz |
| 带宽 | :380kHz | 包装方式 | Reel |
| 引脚样式 | No Lead | 端接方式 | :SMD |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :8 | 封装形式 | 8VSON EP |
| 冷却的封装 | VSON EP | 材料表面处理 | :MSL 3 - 168 hours |
| 总长度 | 3.15(Max) | 包装数量 | VSON EP |
| 位数 | 8 | 外壳尺寸-插件 | 0.95(Max) |
| 供应商器件封装 | 8-SON Exposed Pad (3x3) | ||
产品信息
| 类型 | Current Transmitter | 系列 | XTR117 |
| 功能 | XTR117 4-20MA CURRENT LOOP TRANSMITTER | 软件 | SBOS344C |
| 基本单元 | :117 | 图案编号 | Y |
| 射频系列/标准 | XTR117 | 使用的IC/零件 | View |
| 印刷电路板数量 | 8 | ||
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40 to 125 °C |
| 结工作温度 | 125C | ||
文档与媒体
