点击放大查看

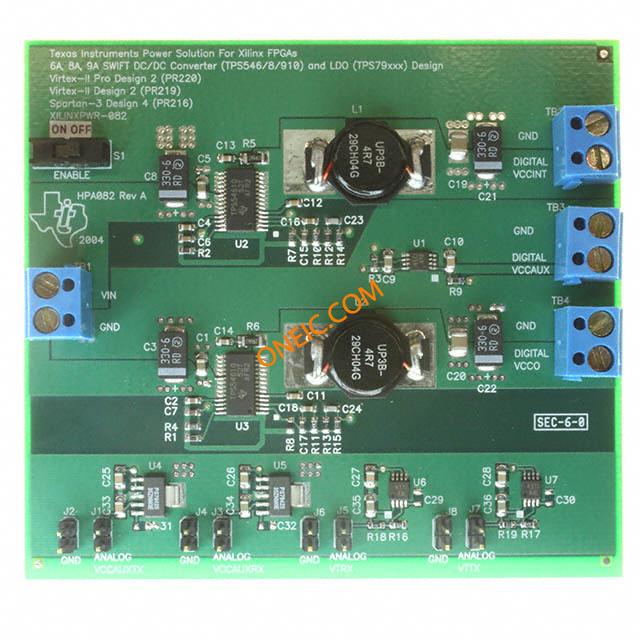

XILINXPWR-082
| 制造商 | Texas Instruments Incorporated |
| 描述 | Power Management Evaluation Module For Xilinx FPGAs Power Management IC Development Tools Pow Mgt Eval Mod for Xilinx FPGAs EVAL MODULE FOR XILINX FPGA |
| 分类 |
商业参数
| 产品 | Power Management Modules | 其他名称 | 296-17304 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Boxed |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | No | ||
电气参数
| 额定电压 | 5 V | 输出电流 | 6A, 6A, 250mA, 60mA, 35mA, 30mA, 15mA |
| 稳压器拓扑 | Buck | 最小输入电压 | 1.5V, 3.3V, 2.5V, 2.5V, 2.5V, 1.8 ~ 2.625V, 1.8 ~ 2.625V |
机械参数
| 电路板厚度 | Fully Populated | 尺寸/外形 | 91.4 mm x 82.6 mm |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 主要用途 | DC/DC, Step Down with LDO | 输出及类型 | 7, Non-Isolated |
| 工具类型/特性 | TPS54x | 使用的IC/零件 | Xilinx FPGAs |
