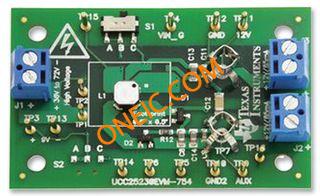

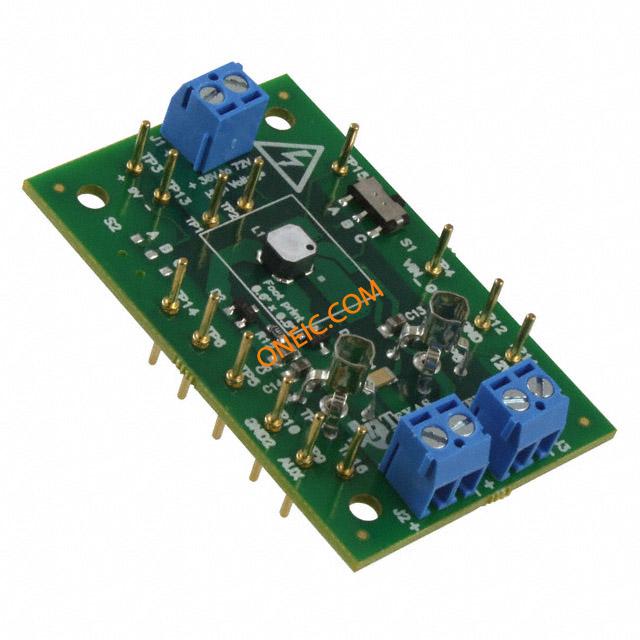

UCC25230EVM-754
| 制造商 | Texas Instruments Incorporated |
| 描述 | Power Management IC Development Tools UCC25230 Eval Mod EVAL MODULE FOR UCC25230-754 UCC25230, DC/DC, BUCK, EVAL MODULE |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Evaluation Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 额定输出功率 | 1.5W | 额定电压 | 36 V to 72 V |
| 输出电流 | 65mA | 元件数量 | :UCC25230 |
| 稳压器拓扑 | Buck | 开关频率 | 380kHz |
| 最小输入电压 | 12V, 12V | ||
机械参数
| 重量 | 0.5 | 电路板厚度 | Fully Populated |
产品信息
| 类型 | Voltage Regulators - Switching Regulators | 内容 | Board |
| 产品特性 | :Evaluate the PWM Converter in Flyback DC / DC Converter Topology | 套件类型 | :Power Management |
| 套件内容 | :- | 主要用途 | DC/DC, Step Down |
| 输出及类型 | 1, Isolated; 1, Non-Isolated | 工具类型/特性 | UCC25230 |
| 使用的IC/零件 | UCC25230 | 芯片组制造商 | :Texas Instruments |
| 应用细节 | :Step Down DC / DC Converter | ||
