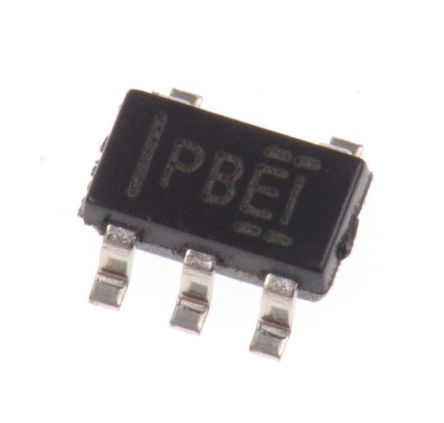

TPS76333DBVT
| 制造商 | Texas Instruments Incorporated |
| 描述 | LDO Regulator Pos 3.3V 0.15A 5-Pin SOT-23 T/R IC REG LDO 3.3V 0.15A SOT23-5 TPS76333DBVT, Low Dropout Voltage Regulator, 0.15A, 3.3V ±3%, 2.7 to 10Vin, 0.555W, 5-Pin SOT-23 LDO Voltage Regulators 3.3V 150mA LDO V REG LDO 0.15A 3.3V, SMD, 76333 Low Iq, 150-mA, Low-Dropout Linear Regulators LDO voltage regulator 3.3 V SOT-23-5, TPS76333, TPS76333DBVT, Texas Instruments Texas Instruments , LDO 调节器, 150mA, 3.3 V输出 ±3%, 2.7 → 10 V输入, 0.555W, 5针 SOT-23封装 |
| 分类 |
商业参数
| 其他名称 | 296-2705-2 | 产品类别 | LDO Voltage Regulators |
| 标准包装数量 | Cut Tape, Tape & Reel | 工厂包装数量 | 250 |
| 标准封装名称 | SOT-23 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | :76333 | 抗辐射加固 | No |
电气参数
| 电源抑制比 | 41 | 输出端 | 1 |
| 精度 | ±3 % | 输出类型 | Fixed |
| 额定功率 | 555 W | 稳压器类型 | Linear |
| 额定电压 | 2.7 V | 电源调整率 | 0.07 %/V |
| 输出电流 | 0.15 A | 供电电压 | 0.0002@0mA|0.003@1mA|0.1@50mA|0.15@75mA|0.2@100mA|0.3@150mA V |
| 输出数量 | 1 | 稳压器拓扑 | Positive Fixed |
| 电容 @ Vr, F | Non-Ceramic | 最大额定电流 | Catalog |
| 稳压器数量 | 1 | 最小输入电压 | 3.3V |
| 最小供电电压 | :3% | 输出电压精度 | �3 % |
| 最大功耗 | 555 mW | 静态电流 (Iq) | 0.08 |
| 直流输入电压（最小） | 2.7 V | 静态电流（最大） | 0.1 mA |
| 电压负载调整率 | 3 % | 输入偏置电流（最大） | 0.085 mA |
| 共模瞬态抗扰度（最小） | Extended | 最大持续工作电压（MCOV） | :10V |
机械参数
| 宽度 | 1.75(Max) | 重量 | 0.000013 |
| 包装方式 | Tape and Reel | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :5 |
| 封装形式 | 5SOT-23 | 冷却的封装 | SOT-23 |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 3.05(Max) |
| 包装数量 | SOT-23 | 位数 | 5 |
| 外壳尺寸-插件 | 1.3(Max) | 供应商器件封装 | SOT-23-5 |
产品信息
| 类型 | LDO | 系列 | TPS76333 |
| 产品特性 | Current Limit|Thermal Protection | 极性 | Positive |
| 软件 | SGLS247A | 拓扑 | LDO |
| 基本单元 | :76333 | 图案编号 | Y |
| 输出及类型 | Adjustable Output Fixed Output | 使用的IC/零件 | View |
| 输出配置 | 1.6 1.8 2.5 2.7 2.8 3 3.3 3.8 5 | 印刷电路板数量 | 5 |
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40 to 125 °C |
