点击放大查看

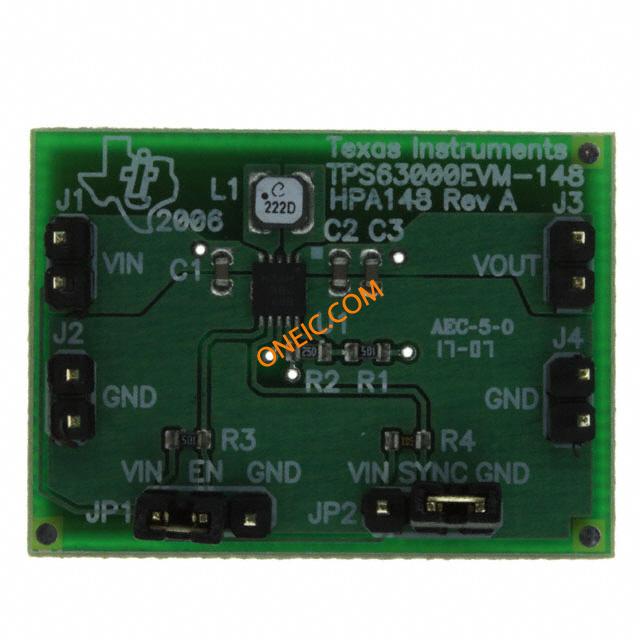

TPS63000EVM-148
| 制造商 | Texas Instruments Incorporated |
| 描述 | Evaluation Module For TPS63000148 Power Management IC Development Tools TPS63000-148 Eval Mod EVALUATION MODULE FOR TPS63000 TPS63000, DC-DC CONV, EVAL BOARD TPS63000, BUCK BOOST CONVERTER, EVAL MODULE |
| 分类 |
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 84733020 | ||
电气参数
| 额定电压 | 3.6 V | 输出电流 | 1A |
| 元件数量 | :TPS63000 | 稳压器拓扑 | Buck-Boost |
| 开关频率 | 1MHz | 最小输入电压 | 3.3V |
机械参数
| 重量 | 0.25 | 包装方式 | Reel |
| 电路板厚度 | Fully Populated | 尺寸/外形 | 33 mm x 24.1 mm |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 产品特性 | :(Not Applicable) | 套件类型 | :Power Management |
| 套件内容 | :Eval Board TPS63000 | 主要用途 | DC/DC, Step Up or Down |
| 输出及类型 | 1, Non-Isolated | 工具类型/特性 | TPS63000 |
| 射频系列/标准 | TPS63000 | 使用的IC/零件 | TPS63000 |
| 芯片组制造商 | :Texas Instruments | 应用细节 | :Buck/Boost DC-DC Converter |
文档与媒体
相关型号
TPS63000DRCT
texas instruments
Conv DC-DC Single Non-Inv/Inv/Step Up/Step Down 1.8V to 5.5V 10-Pin VSON EP T/R IC REG BUCK BOOST SYNC ADJ 10SON TPS63000DRCT, Buck/Boost Converter, 1.2A, Adjustable, 1.2 to 5.5V, 1500kHz, 10-Pin SON EP Voltage Regulators - Switching Regulators 96% Buck Boost Converter IC, BUCK-BOOST CONVERTER, SON-10 96% Buck-Boost Converter with 1.8A Current Switches in 3x3 QFN , 降压/升压稳压器, 1.2A, 可调输出, 1.2 → 5.5 V, 1500 kHz, 10针 SON封装 Switching Voltage Regulators 96% Buck Boost Converter
TPS63000DRCR
texas instruments
Conv DC-DC Single Non-Inv/Inv/Step Up/Step Down 1.8V to 5.5V 10-Pin VSON EP T/R IC REG BUCK BOOST SYNC ADJ 10SON Voltage Regulators - Switching Regulators 96% Buck Boost Converter 96% Buck-Boost Converter with 1.8A Current Switches in 3x3 QFN Switching Voltage Regulators 96% Buck Boost Converter
TPS63000DRCTG4
texas instruments
Conv DC-DC Single Non-Inv/Inv/Step Up/Step Down 1.8V to 5.5V 10-Pin VSON EP T/R IC REG BUCK BOOST SYNC ADJ 10SON Voltage Regulators - Switching Regulators 96% Buck Boost Converter 96% Buck-Boost Converter with 1.8A Current Switches in 3x3 QFN Switching Voltage Regulators 96% Buck Boost Converter
TPS63000DRCRG4
texas instruments
Conv DC-DC Single Non-Inv/Inv/Step Up/Step Down 1.8V to 5.5V 10-Pin VSON EP T/R IC REG BUCK BOOST SYNC ADJ 10SON Voltage Regulators - Switching Regulators 96% Buck Boost Converter BUCK-BOOST CONVERTER, ADJ, SON-10 96% Buck-Boost Converter with 1.8A Current Switches in 3x3 QFN Switching Voltage Regulators 96% Buck Boost Converter
TPS63000IDRCRQ1
texas instruments
Conv DC-DC Single Non-Inv/Inv/Step Up/Step Down 1.8V to 5.5V 10-Pin VSON EP T/R DC/DC Switching Regulators Auto Cat 96% Buck- Boost Converter IC REG BUCK BOOST SYNC ADJ 10SON Voltage Regulators - Switching Regulators Auto Cat 96% Buck- Boost Converter Automotive Catalog 96% Buck-Boost Converter with 1.8A Current Switches in 3x3 QFN Switching Voltage Regulators Auto Cat 96% Buck- Boost Converter
