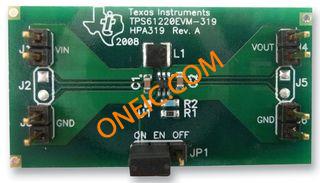

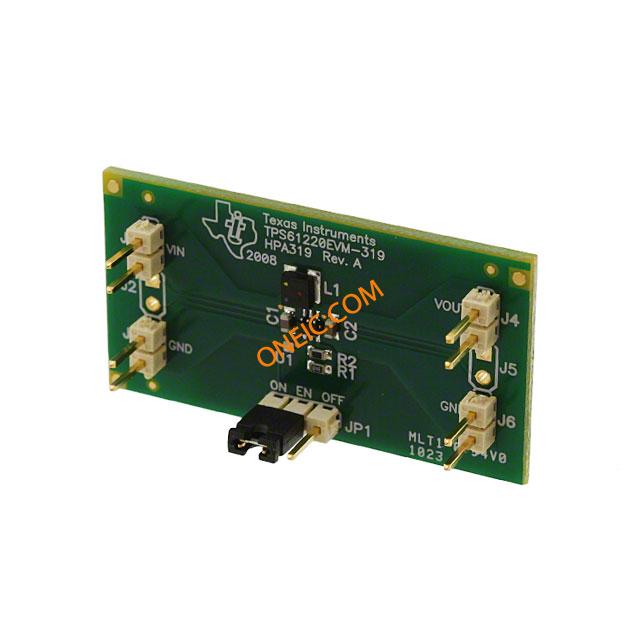

TPS61220EVM-319
| 制造商 | Texas Instruments Incorporated |
| 描述 | Evaluation Module For TPS61220 Power Management IC Development Tools TPS61220EVM-319 Eval Mod EVAL MODULE FOR TPS61220-319 TPS61220, BOOST CONVERTER, EVAL MODULE TPS61220, BOOST CONVERTER, EVALUATION MODULE |
| 分类 |
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | RoHS Not Applicable | 海关税号 | 84733020 |
电气参数
| 额定电压 | 2.5 V to 5.5 V | 元件数量 | :TPS61220 |
| 稳压器拓扑 | Boost | 最小输入电压 | 3.3V |
机械参数
| 重量 | 0.25 | 电路板厚度 | Fully Populated |
| 尺寸/外形 | 22.9 mm x 43.2 mm | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 产品特性 | :(Not Applicable) | 套件类型 | :Power Management |
| 技术 | DC to DC Converter and Switching Regulator Chip | 套件内容 | :Eval Module TPS61220 |
| 主要用途 | DC/DC, Step Up | 输出及类型 | 1, Non-Isolated |
| 工具类型/特性 | TPS61220 | 使用的IC/零件 | TPS61220 |
| 芯片组制造商 | :Texas Instruments | 应用细节 | :Synchronous Boost Converter |
文档与媒体
相关型号
TPS61220DCKT
texas instruments
Conv DC-DC Single Step Up 0.7V to 5.5V 6-Pin SC-70 T/R DC/DC Switching Regulators Tiny Low Inp Vltg Boost Cnvrtr IC REG BOOST SYNC ADJ SC70-6 TPS61220DCKT, Boost Converter, Step Up 0.5A Adjustable, 1.8 to 5.5V, 2000kHz, 6-Pin SC-70 Voltage Regulators - Switching Regulators Tiny Low Inp Vltg Boost Cnvrtr IC, DC DC BOOST CONVERTER, 6SC70 Low Input Voltage, 0.7V Boost Converter with 5.5μA Quiescent Current DC/DC Converter IC 1.8...5.5 V SC-70-6, TPS61220, TPS61220DCKT, Texas Instruments Texas Instruments 升压转换器, 500mA, 可调输出, 1.8 → 5.5 V, 2000 kHz, 6针 SC-70封装 Switching Voltage Regulators Tiny Low Inp Vltg Boost Cnvrtr
TPS61221DCKT
texas instruments
Conv DC-DC Single Step Up 0.7V to 5.5V 6-Pin SC-70 T/R IC REG BOOST SYNC 3.3V SC70-6 Voltage Regulators - Switching Regulators Tiny Low Inp Vltg Boost Cnvrtr IC, VIN BOOST CONV TINY LV 6-SC70 Tiny Low Input Voltage Boost Converter Texas Instruments 升压转换器, 400mA, 3.2 至 3.41 V输出, 2000 kHz, 6针 SC-70封装 Switching Voltage Regulators Tiny Low Inp Vltg Boost Cnvrtr
TPS61220DCKR
texas instruments
Conv DC-DC Single Step Up 0.7V to 5.5V 6-Pin SC-70 T/R IC REG BOOST SYNC ADJ SC70-6 Voltage Regulators - Switching Regulators Tiny Low Inp Vltg Boost Cnvrtr MSL:MSL 1 - Unlimited Low Input Voltage, 0.7V Boost Converter with 5.5μA Quiescent Current Switching Voltage Regulators Tiny Low Inp Vltg Boost Cnvrtr
