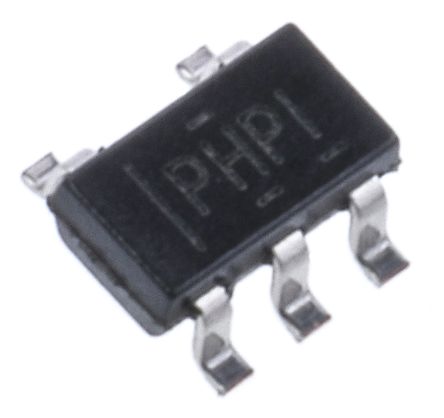

TPS61041DBVR
| 制造商 | Texas Instruments Incorporated |
| 描述 | Conv DC-DC Single Step Up 1.8V to 6V 5-Pin SOT-23 T/R LED Lighting Drivers 28-V 250-mA Switch Boost Converter IC LED DRVR WHITE BCKLGT SOT23-5 IC, DC DC BOOST CONVERTER, 357MW 28-V, 250-mA Switch Boost Converter in SOT-23 for LCD and White LED Applications DC/DC Converter IC ≤ 28 VDC SOT-23-5, TPS61041, TPS61041DBVR, Texas Instruments Texas Instruments 升压转换器, 250mA, 可调输出, 1.8 → 28 V, 1000 kHz, 5针 SOT-23封装 Switching Voltage Regulators 28-V 250-mA Switch Boost Converter |
| 分类 |
商业参数
| 其他名称 | 296-12686-2 | 产品类别 | LED Lighting Drivers |
| 标准包装数量 | Cut Tape, Tape & Reel | 工厂包装数量 | 3000 |
| 标准封装名称 | SOT-23 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85359000 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 频率 | 1MHz | 占空比 | 88 |
| 效率 | 85 % | 输出类型 | Adjustable |
| 稳压器类型 | :Adjustable | 额定电压 | 1.8 to 28 V |
| 电源调整率 | 0.05(Typ) %/V | 负载调整率 | 0.15(Typ) %/mA |
| 输出电流 | 0.25 A | 供电电流 | 250 mA |
| 供电电压 | 1.8 to 6 V | 输出数量 | 1 |
| 供电类型 | :4 Series LED | 稳压器拓扑 | Step Up |
| 开关电流 | 0.2 | 开关稳压器 | Yes |
| 最大额定电流 | Catalog | 释放电压 | 1.5 |
| 开关频率 | 1000(Max) kHz | 最小输入电压 | 28V |
| 静态电流 (Iq) | 0.028 | 直流输入电压（最小） | 1.8 V |
| 关态电流（最大） | 0.1 | 输出高/低电流 | 0.05 A |
| 最大持续工作电压（MCOV） | :6V | ||
机械参数
| 宽度 | 1.75(Max) | 重量 | 0.000459 oz |
| 包装方式 | Reel | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :5 |
| 封装形式 | 5SOT-23 | 冷却的封装 | SOT-23 |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 3.05(Max) |
| 包装数量 | SOT-23 | 位数 | 5 |
| 外壳尺寸-插件 | 1.3(Max) | 供应商器件封装 | SOT-23-5 |
产品信息
| 类型 | Step Up | 系列 | TPS61041 |
| 产品特性 | Enable | 软件 | SLVS413G |
| 拓扑 | PWM, Step-Up (Boost) | 基本单元 | :61041 |
| 图案编号 | Y | 功能框图 | fbd_slvs413g.gif |
| 使用的IC/零件 | View | 内部连接 | Yes |
| 印刷电路板数量 | 5 | ||
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
