点击放大查看

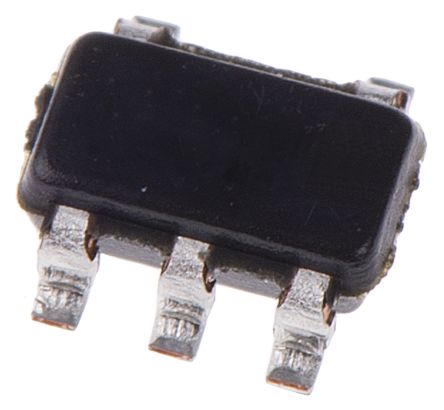

TPS60403DBVT
| 制造商 | Texas Instruments Incorporated |
| 描述 | Charge Pump INV/STPUP/STPDN -1.6V to -5.25V 60mA 5-Pin SOT-23 T/R IC REG SWITCHED CAP INV SOT23-5 TPS60403DBVT, Charge Pump Inverting, Step Down, Step Up, -5.25 to -1.6V, 5-Pin, SOT-23 Voltage Regulators - Switching Regulators Unreg 60mA Chrg PmpV CHARGE PUMP INVERTER, SMD, 60403 DC-DC converter; Uin:1.6÷5.5V; Uout: -1.6÷-5.25V; 60mA; SOT23-5 60mA Charge Pump Voltage Inverter with Fixed 250kHz Operation DC/DC Converter IC -1.6...-5.25 VDC SOT-23-5, TPS60403, TPS60403DBVT, Texas Instruments Texas Instruments 反相，降压，升压 电荷泵, -5.25 → -1.6 V, 5针 SOT-23封装 Switching Voltage Regulators Unreg 60mA Chrg PmpV |
| 分类 |
商业参数
| 其他名称 | 296-13418-2 | 产品类别 | Voltage Regulators - Switching Regulators |
| 标准包装数量 | Cut Tape, Tape & Reel | 工厂包装数量 | 250 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423990 | 零件状态 | :60403 |
| 抗辐射加固 | No | ||
电气参数
| 频率 | :250kHz | 效率 | 99 |
| 输出类型 | Adjustable | 额定功率 | 435mW |
| 转换器类型 | Inverting, Step Down, Step Up | 稳压器类型 | :Inverting |
| 额定电压 | -1.6 to -5.25 V | 输出电流 | 60(Max) mA |
| 供电电压 | :1.8V | 输出数量 | 1 |
| 最大额定电流 | Catalog | 开关频率 | 250kHz |
| 同步整流 | No | 最小输入电压 | -1.6 V ~ -5.25 V |
| 输出电压（最大） | -1.6 V | 最小供电电压 | 5.25 V |
| 静态电流 (Iq) | 0.4 | 输出电压（最小/固定） | -5.25 V |
| 电压输出差（典型值）@ 距离 | :-1.8V | ||
机械参数
| 宽度 | 1.6mm | 高度 | 1.15mm |
| 长度 | 2.9mm | 重量 | 0.000459 oz |
| 包装方式 | Tape & Reel (TR) | 端接方式 | :SMD |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :5 | 封装形式 | 5SOT-23 |
| 冷却的封装 | SOT-23 | 材料表面处理 | :MSL 1 - Unlimited |
| 包装数量 | 250 | 尺寸/外形 | 2.9 x 1.6 x 1.15mm |
| 位数 | 5 | 供应商器件封装 | SOT-23-5 |
产品信息
| SPG | 250 | 类型 | Switched Capacitor (Charge Pump), Inverting |
| 系列 | TPS60403 | 功能 | Inverting/Step Up/Step Down |
| 软件 | SLVS324B | 拓扑 | Inverting Buck-Boost |
| 基本单元 | :60403 | 图案编号 | Y |
| 单元数量 | 1 | 功能框图 | fbd_slvs324b.gif |
| 使用的IC/零件 | View | ||
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 125 °C |
文档与媒体
相关型号
TPS73230DBVT
texas instruments
LDO Regulator Pos 3V 0.25A 5-Pin SOT-23 T/R IC REG LDO 3V 0.25A SOT23-5 TPS73230DBVT, Low Dropout Voltage Regulator, 0.25A, 3V ±0.5%, 1.7 to 5.5Vin, 5-Pin SOT-23 LDO Voltage Regulators Cap-Free NMOS 250mA REGULATOR, LDO, FIXED, 3V, SOT-23-5 Cap-Free, NMOS, 250mA Low Dropout Regulator with Reverse Current Protection Texas Instruments , LDO 调节器, 250mA, 3 V输出 ±0.5%, 1.7 → 5.5 V输入, 5针 SOT-23封装
744728
Wurth Electronics
Inductor Kits & Accessories TI Design Kit DESIGN KIT INDUCTORS FOR TI Wurth Elektronik Power Inductor Inductor Design Kit, 176 Pieces DESIGN-KIT SMD-POWER CHOKES FOR TI Wurth Elektronik 176件 电感器套件, 套件包含功率电感器
TS5A3166DBVR
texas instruments
Analog Switch Single SPST 5-Pin SOT-23 T/R Analog Switch ICs 1-Ohm SPST 5-V/3.3-V Sng-Ch Analog Switch IC SWITCH SPST SOT23-5 IC, SWITCH, SPST, SOT23-5 1-Ohm SPST Analog Switch 5-V/3.3-V Single-Channel Analog Switch Texas Instruments 模拟单刀单掷开关, 单-单刀单掷, 3 V 5 V电源电压, 5针 SOT-23封装

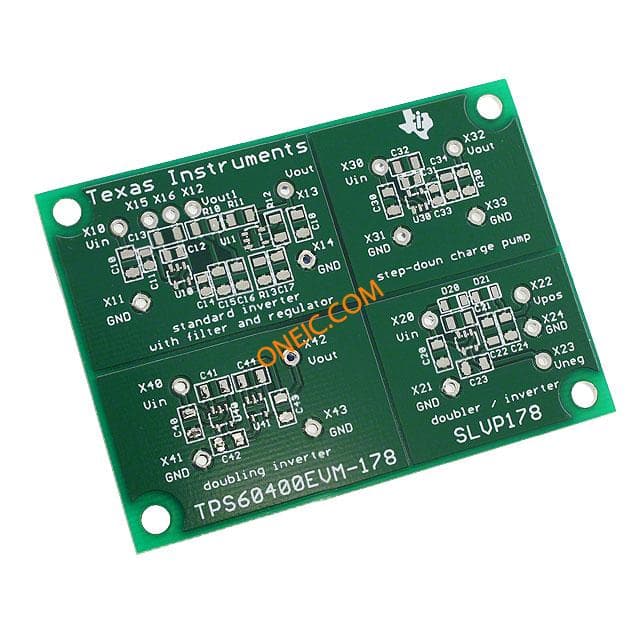

TPS60400EVM-178
