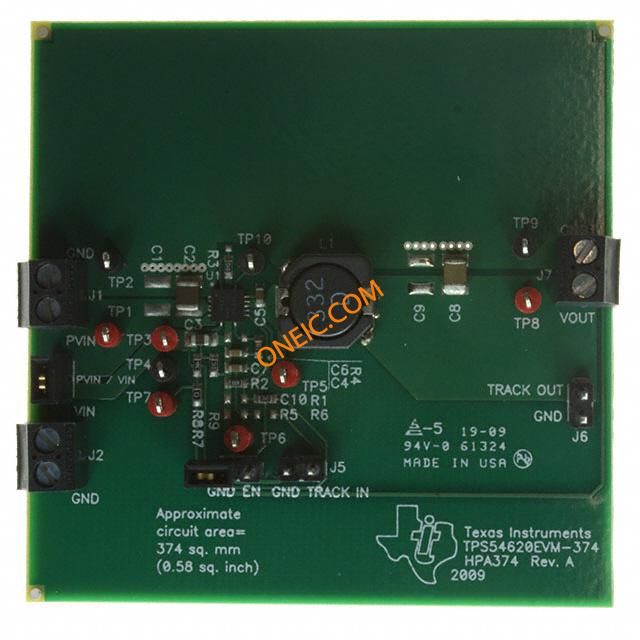

TPS54620EVM-374
| 制造商 | Texas Instruments Incorporated |
| 描述 | Regulator Evaluation Module Designed To Demonstrate The Small Printed-Circuit-Board Areas That May Be Achieved When Designing With The TPS54620 Regulator Power Management IC Development Tools 8-17V 6A SWIFT Converter Eval Mod EVAL MOD FOR TPS54620 TPS54620EVM-374 SWIFT Converter EVM TPS54620, STEP DOWN CONVERTER, EVAL MOD |
| 分类 |
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | RoHS Not Applicable | 海关税号 | 84733020 |
电气参数
| 额定电压 | 12 V | 输出电流 | 6A |
| 元件数量 | :TPS54620 | 稳压器拓扑 | Buck |
| 开关频率 | 480kHz | 最小输入电压 | 3.3V |
机械参数
| 重量 | 0.25 | 供货尺寸 | Texas Instruments |
| 电路板厚度 | Fully Populated | 尺寸/外形 | 63.5 mm x 63.5 mm |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 产品特性 | :(Not Applicable) | 套件类型 | :Power Management |
| 架构 | Analog | 套件内容 | :Eval Module TPS54620, User Guide |
| 主要用途 | DC/DC, Step Down | 输出及类型 | 1, Non-Isolated |
| 工具类型/特性 | TPS54620 | 使用的IC/零件 | TPS54620 |
| 芯片组制造商 | :Texas Instruments | 应用细节 | :Synchronous Step Down Converter |
文档与媒体
相关型号
TPS54620RGYR
texas instruments
Conv DC-DC Single Step Down 1.6V to 17V 14-Pin VQFN EP T/R IC REG BUCK SYNC ADJ 6A 14VQFN Voltage Regulators - Switching Regulators 4.5-17Vin 6A Synch St Down SWIFT Cnvtr DC-DC CONVERTER, BUCK, 1.6MHZ, VQFN-14 DC-DC CONVERTER, BUCK, 1.6MHZ, VQFN-14, FULL REEL 4.5V to 17V Input, 6A Synchronous Step-Down SWIFT™ Converter Switching Voltage Regulators 4.5-17Vin 6A Synch St Down SWIFT Cnvtr
TPS54620RGYT
texas instruments
Conv DC-DC Single Step Down 1.6V to 17V 14-Pin VQFN EP T/R IC REG BUCK SYNC ADJ 6A 14VQFN Voltage Regulators - Switching Regulators 4.5-17Vin 6A Synch St Down SWIFT Cnvtr STEP DOWN CONV, 4.5 TO 17V, 14QFN 4.5V to 17V Input, 6A Synchronous Step-Down SWIFT™ Converter Logic IC Synchronous / Step-Down / Converter VQFN-14, TPS54620, TPS54620RGYT, Texas Instruments Texas Instruments 降压 开关稳压器, 6A, 可调输出, 0.8 → 15 V, 1760 kHz, 14针 VQFN封装 Switching Voltage Regulators 4.5-17Vin 6A Synch St Down SWIFT Cnvtr
TPS54620RHLT
texas instruments
Conv DC-DC Single Step Down 1.6V to 17V 14-Pin VQFN EP IC REG BUCK SYNC ADJ 6A 14QFN Voltage Regulators - Switching Regulators 4.5-17Vin,6A Syn Step Down Cnvrtr DC-DC CONV, BUCK, 1.6MHZ, QFN-14 4.5V to 17V Input, 6A Synchronous Step-Down SWIFT™ Converter Texas Instruments 直流-直流转换器, 降压，同步, 6A, 4.5 → 17 V输入, 0.8 → 15 V输出, 1.6 MHz, 14针 QFN封装 Switching Voltage Regulators 4.5-17Vin,6A Syn Step Down Cnvrtr
TPS54620RHLR
texas instruments
Conv DC-DC Single Step Down 1.6V to 17V 14-Pin VQFN EP IC REG BUCK SYNC ADJ 6A 14QFN Voltage Regulators - Switching Regulators 4.5-17Vin,6A Syn Step Down Cnvrtr DC-DC CONVERTER, BUCK, 1.6MHZ, VQFN-14 4.5V to 17V Input, 6A Synchronous Step-Down SWIFT™ Converter Texas Instruments 降压 开关稳压器, 6A, 可调输出, 0.8 → 15 V, 1.6 MHz, 14针 QFN封装 Switching Voltage Regulators 4.5-17Vin,6A Syn Step Down Cnvrtr
