点击放大查看

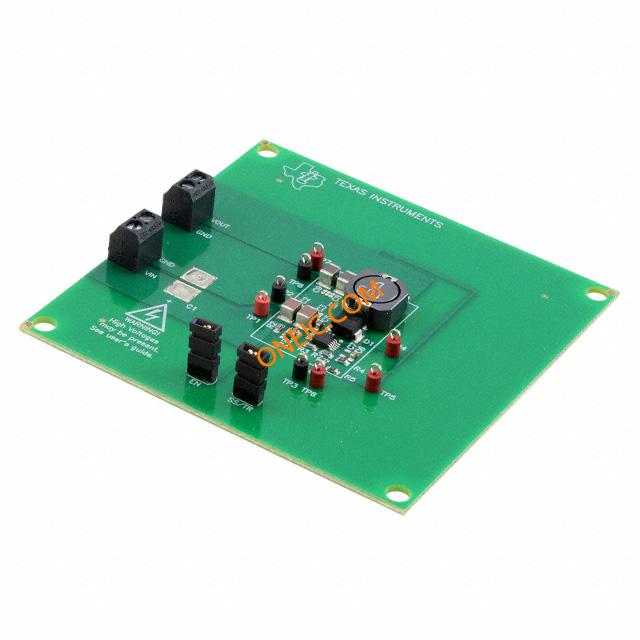

TPS54260EVM-597
| 制造商 | Texas Instruments Incorporated |
| 描述 | Swift Regulator Evaluation Module, 2.5A Power Management IC Development Tools 2.5A,10.8-13.2Vin SWIFT Conv Eval Mod EVAL MODULE FOR TPS54260 TPS54260, DC/DC, BUCK, EVAL MODULE |
| 分类 |
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | RoHS Not Applicable | 海关税号 | 85423190 |
电气参数
| 额定电压 | 10.8 V to 13.2 V | 输出电流 | 2.5A |
| 元件数量 | :TPS54260 | 稳压器拓扑 | Buck |
| 开关频率 | 300kHz | 最小输入电压 | 3.3V |
机械参数
| 重量 | 0.25 | 电路板厚度 | Fully Populated |
| 尺寸/外形 | 76.2 mm x 76.2 mm | ||
产品信息
| 类型 | Development Kit | 已删除 | Not Compliant |
| 内容 | Board | 产品特性 | :Evaluation Module for TPS54260 Swift Regulator |
| 套件类型 | :Power Management | 套件内容 | :- |
| 主要用途 | DC/DC, Step Down | 输出及类型 | 1, Non-Isolated |
| 工具类型/特性 | TPS54260 | 使用的IC/零件 | TPS54260 |
| 芯片组制造商 | :Texas Instruments | 应用细节 | :Step Down DC / DC Converter |
文档与媒体
相关型号
TPS54260DGQ
texas instruments
Conv DC-DC Single Step Down 3.5V to 60V 10-Pin HTSSOP EP Tube DC/DC Switching Regulators 3.5-60V 2.5A 2.5MHz Step Down Converter Conv DC-DC Single Step Down 3.5V to 60V 10-Pin HVSSOP EP Tube IC REG BUCK ADJ 2.5A 10MSOP Voltage Regulators - Switching Regulators 3.5-60V 2.5A 2.5MHz Step Down Converter IC, STEP-DOWN CONVERTER, 100KHZ TO 2.5MHZ, MSOP-10 IC, BUCK, REG, 2.5A, 10MSOP 3.5V to 60V Input, 2.5A Step-Down Converter with Eco-Mode DC/DC Converter IC 0.8...58 V MSOP-10 Power PAD, TPS54260DGQ, Texas Instruments Texas Instruments 降压 开关稳压器, 2.5A, 可调输出, 0.8 → 58 V, 720 kHz, 10针 MSOP封装 Switching Voltage Regulators 3.5-60V 2.5A 2.5MHz Step Down Converter
TPS54260DGQR
texas instruments
Conv DC-DC Single Step Down 3.5V to 60V 10-Pin HTSSOP EP T/R DC/DC Switching Converters 3.5-60V 2.5A 2.5MHz Step Down Converter Conv DC-DC Single Step Down 3.5V to 60V 10-Pin HVSSOP EP T/R IC REG BUCK ADJ 2.5A 10MSOP Voltage Regulators - Switching Regulators 3.5-60V 2.5A 2.5MHz Step Down Converter 3.5V to 60V Input, 2.5A Step-Down Converter with Eco-Mode Texas Instruments 降压 开关稳压器, 2.5A, 可调输出, 0.8 → 58 V, 2500 kHz, 10针 MSOP封装 Switching Voltage Regulators 3.5-60V 2.5A 2.5MHz Step Down Converter
TPS54260DRCR
texas instruments
Conv DC-DC Single Step Down 3.5V to 60V 10-Pin VSON EP T/R IC REG BUCK ADJ 2.5A 10SON Voltage Regulators - Switching Regulators 3.5V-60Vin,2.5A,2.5 MHz Step Down SWIFT 3.5V to 60V Input, 2.5A Step-Down Converter with Eco-Mode Switching Voltage Regulators 3.5V-60Vin,2.5A,2.5 MHz Step Down SWIFT
TPS54260DRCT
texas instruments
Conv DC-DC Single Step Down 3.5V to 60V 10-Pin VSON EP T/R IC REG BUCK ADJ 2.5A 10SON Voltage Regulators - Switching Regulators 3.5V-60Vin,2.5A,2.5 MHz Step Down SWIFT BUCK, 60VIN, 2.5MHZ, 2.5A, ADJ, 10SON 3.5V to 60V Input, 2.5A Step-Down Converter with Eco-Mode Texas Instruments 降压 开关稳压器, 2.5A, 可调输出, 0.8 → 58 V, 2.5 MHz, 10针 SON封装 Switching Voltage Regulators 3.5V-60Vin,2.5A,2.5 MHz Step Down SWIFT
TPS54260QDGQRQ1
texas instruments
Conv DC-DC Single Step Down 3.5V to 60V 10-Pin HTSSOP EP T/R Conv DC-DC Single Step Down 3.5V to 60V 10-Pin HVSSOP EP T/R IC REG BUCK ADJ 2.5A 10MSOP Voltage Regulators - Switching Regulators 3.5-42Vin,2.5A,2.5 MHz Step-Down Cnvrtr Automotive Catalog 3.5V to 60V Input, 2.5A, 2.5MHz Step Down SWIFT™ Converter with Eco-Mode™ Switching Voltage Regulators 3.5-42Vin,2.5A,2.5 MHz Step-Down Cnvrtr
