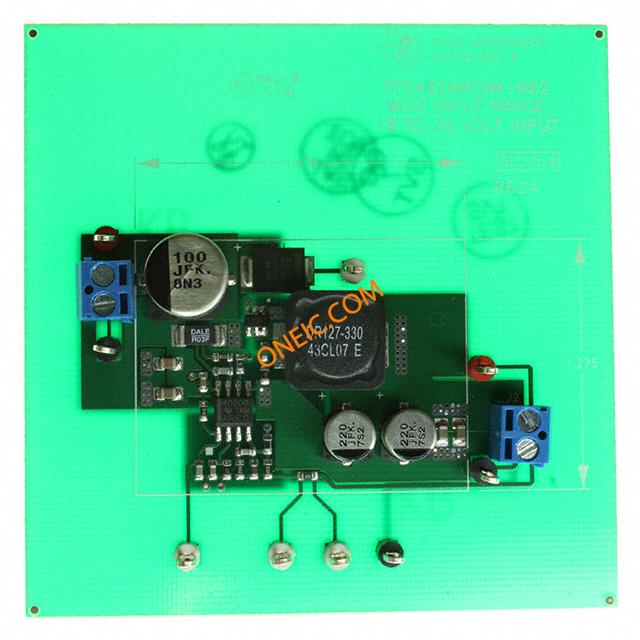

TPS40200EVM-002
| 制造商 | Texas Instruments Incorporated |
| 描述 | Evaluation Module For TPS40200002 Power Management IC Development Tools BUCK CONTROLLER MODULE EVAL FOR TPS40200 TPS40200, BUCK DC/DC CONVERTER, EVAL MOD TPS40200, BUCK CONTROLLER, EVALUATION MODULE |
| 分类 |
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 84733020 | ||
电气参数
| 额定电压 | 24 V | 输出电流 | 2.5A |
| 元件数量 | :TPS40200 | 稳压器拓扑 | Buck |
| 开关频率 | 200kHz | 最小输入电压 | 3.3V |
机械参数
| 重量 | 0.25 | 电路板厚度 | Fully Populated |
| 尺寸/外形 | 76.2 mm x 76.2 mm | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 产品特性 | :(Not Applicable) | 套件类型 | :Power Management |
| 套件内容 | :Eval Module TPS40200, User Guide | 主要用途 | DC/DC, Step Down |
| 输出及类型 | 1, Non-Isolated | 工具类型/特性 | TPS40200 |
| 射频系列/标准 | TPS40200 | 使用的IC/零件 | TPS40200 |
| 芯片组制造商 | :Texas Instruments | 应用细节 | :Step Down DC / DC Converter |
文档与媒体
相关型号
TPS40200D
texas instruments
DC DC Cntrlr Single-OUT Step Down 4.5V to 52V Input 8-Pin SOIC Tube IC REG CTRLR BUCK PWM VM 8-SOIC Switching Controllers Wide Inp Non-Sync Buck DC/DC Cntrlr IC, BUCK DC/DC CONTROLLER, 8-SOIC Wide Input Non-Synchronous Buck DC/DC Controller Texas Instruments 直流-直流降压控制器, 52 V 降压, 8针 SOIC封装
TPS40200QDRQ1
texas instruments
DC DC Cntrlr Single-OUT Step Down 4.5V to 52V Input 8-Pin SOIC T/R IC REG CTRLR BUCK PWM VM 8-SOIC Switching Controllers Wide-Inp-Rng Nonsync Vltg-Mode Cntrlr PWM CONTROLLER, VOLTAGE MODE, SOIC-8 Automotive Wide-Input-Range Non-Synchronous Voltage-Mode Controller
TPS40200DRG4
texas instruments
DC DC Cntrlr Single-OUT Step Down 4.5V to 52V Input 8-Pin SOIC T/R DC/DC Switching Controllers Wide Inp Non-Sync Buck DC/DC Cntrlr IC REG CTRLR BUCK PWM VM 8-SOIC Switching Controllers Wide Inp Non-Sync Buck DC/DC Cntrlr IC, BUCK DC/DC CONTROLLER, SOIC-8 Wide Input Non-Synchronous Buck DC/DC Controller
TPS40200DR
texas instruments
DC DC Cntrlr Single-OUT Step Down 4.5V to 52V Input 8-Pin SOIC T/R IC REG CTRLR BUCK PWM VM 8-SOIC Switching Controllers Wide Inp Non-Sync Buck DC/DC Cntrlr Wide Input Non-Synchronous Buck DC/DC Controller DC/DC Converter IC 0.7...46 V SO-8, TPS40200, TPS40200DR, Texas Instruments
TPS40200MDREP
texas instruments
DC DC Cntrlr Single-OUT Step Down 4.5V to 52V Input 8-Pin SOIC T/R IC REG CTRLR BUCK PWM VM 8-SOIC Switching Controllers Mil Enhanced Nonsync Vltg-Mode Cntrlr Enhanced Product Wide-Input-Range Non-Synchronous Voltage-Mode Controller
TPS40200DRBR
texas instruments
DC DC Cntrlr Single-OUT Step Down 4.5V to 52V Input 8-Pin VSON EP T/R Voltage Mode PWM Controllers Wide Inp Non-Synch Buck DC/DC Cntrlr IC REG CTRLR BUCK PWM VM 8SON Switching Controllers Wide Inp Non-Synch Buck DC/DC Cntrlr Wide Input Non-Synchronous Buck DC/DC Controller
TPS40200GDR
Texas Instruments
Switching Controllers Wide In Non-Sync Buck DC/DC Cntrlr DC DC Cntrlr Single-OUT Step Down 4.5V to 52V Input 8-Pin SOIC T/R IC REG CTRLR BUCK PWM VM 8-SOIC CONTROLLER, VOLTAGE MODE, 0.2A, 8SO Wide Input Non-Synchronous Buck DC/DC Controller
TPS40200DG4
texas instruments
DC DC Cntrlr Single-OUT Step Down 4.5V to 52V Input 8-Pin SOIC Tube IC REG CTRLR BUCK PWM VM 8-SOIC TPS40200DG4, DC-DC Controller, 52V Step-Down, 8-Pin, SOIC Switching Controllers Wide Inp Non-Sync Buck DC/DC Cntrlr VOLT MODE CONTROLLER, SMD, SOIC8 Wide Input Non-Synchronous Buck DC/DC Controller
