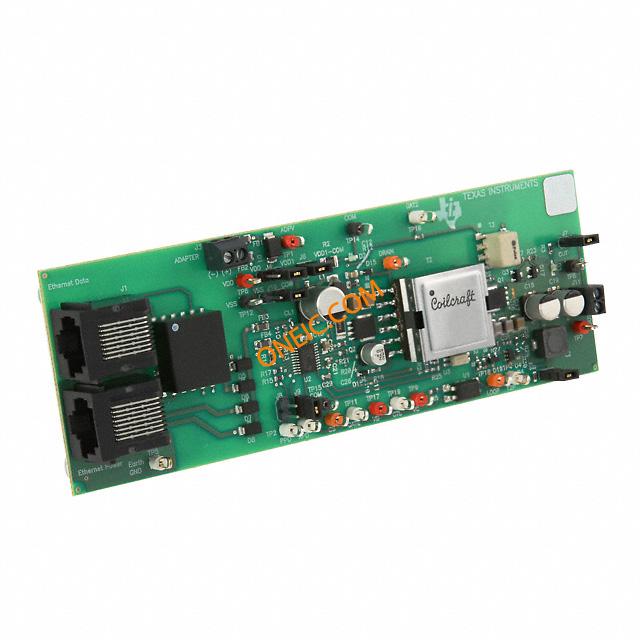

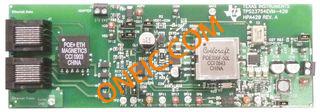

TPS23754EVM-420
| 制造商 | Texas Instruments Incorporated |
| 描述 | Evaluation Module For TPS23754 Power Management IC Development Tools TPS23754 Eval Mod EVAL MODULE FOR TPS23754-420 TPS23754, POWER OVER ETHERNET, EVALUATION MODULE |
| 分类 |
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | No | 欧盟RoHS | RoHS Not Applicable |
| 海关税号 | 85423190 | ||
电气参数
| 接口 | Ethernet | 额定输出功率 | 25W |
| 额定电压 | 0 V to 57 V | 输出电流 | 5A |
| 元件数量 | :TPS23754 | 稳压器拓扑 | Buck |
| 开关频率 | 250kHz | 最小输入电压 | 5V |
机械参数
| 重量 | 0 | 电路板厚度 | Fully Populated |
| 尺寸/外形 | 149.9 mm x 51.6 mm | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 产品特性 | Technical Documenthttp://www.ti.com/lit/ds/slvs885f/slvs885f.pdf | 套件类型 | :Power Management |
| 技术 | Power Over Ethernet Controller | 套件内容 | :Board |
| 主要用途 | Special Purpose DC/DC, Power Over Ethernet | 输出及类型 | 1, Isolated |
| 工具类型/特性 | TPS23754 | 使用的IC/零件 | TPS23754 |
| 芯片组制造商 | :Texas Instruments | 应用细节 | :Power Over Ethernet (POE) |
