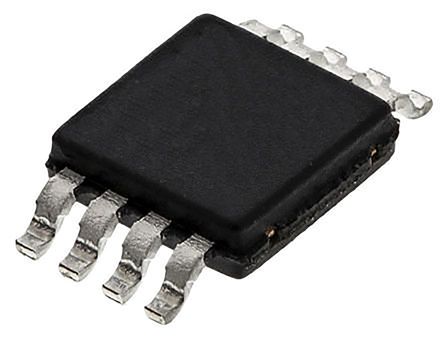

点击放大查看
TPS2068DGN
| 制造商 | Texas Instruments Incorporated |
| 描述 | USB Power SW Hi Side/DIST Single 5.5V 2.1A 8-Pin HTSSOP EP Tube Power Switch ICs - USB Current-Ltd Pwr- Distr Switch USB Power SW Hi Side/DIST Single 5.5V 2.1A 8-Pin HVSSOP EP Tube IC POWER-DIST SWITCH 8-MSOP IC, POWER-DIST SWITCH 8-MSOP Current-Limited, Power-Distribution Switch Texas Instruments , 单输出 数字电源开关 IC, 1.5A, 2.7 → 5.5V, 1.37W, 8针 MSOP封装 Power Switch ICs - Power Distribution Current-Ltd Pwr- Distr Switch |
| 分类 |
商业参数
| 其他名称 | 296-21891-5 | 产品类别 | Power Switch ICs - USB |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 80 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 测试电流 | 1.5 | 额定电压 | :5.5V |
| 输出电流 | :1.5A | 供电电压 | 2.7 V |
| 输出数量 | 1 | 稳压器拓扑 | Constant-Current |
| 最大额定电流 | Catalog | 最小输入电压 | 2.7 to 5.5 V |
| 导通电阻 Rds(on) (最大) @ Id, Vgs | 115 mOhm | 最大功耗 | :1.37W |
| 输入逻辑高电平 | :Active Low | 导通电阻（最大） | :0.07ohm |
| 短路电流 | 2.1 A | 共模瞬态抗扰度（最小） | Industrial |
| 驱动电压（最大Rds On，最小Rds On） | 70 | ||
机械参数
| 宽度 | 3.1(Max) | 重量 | 0.0002 |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8HTSSOP EP | 冷却的封装 | MSOP-PowerPAD |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 3.1(Max) |
| 包装数量 | HVSSOP EP | 位数 | 8 |
| 外壳尺寸-插件 | 0.95(Max) | 供应商器件封装 | 8-MSOP-PowerPad |
产品信息
| 类型 | High Side Switch|USB Power Distribution Switch | 系列 | TPS2068 |
| 已删除 | Compliant | 软件 | SLVS553K |
| 基本单元 | :2068 | 开关类型 | :High Side |
| 可编程性 | Active Low | 功能框图 | fbd_slvs553k.gif |
| 内部开关 | Yes | 开关数量 | 1 |
| 使用的IC/零件 | View | 印刷电路板数量 | 8 |
环境参数
| 测试温度 | -40 to 85 | 热阻 | :Yes |
| 工作温度 | -40 to 85 °C | ||
