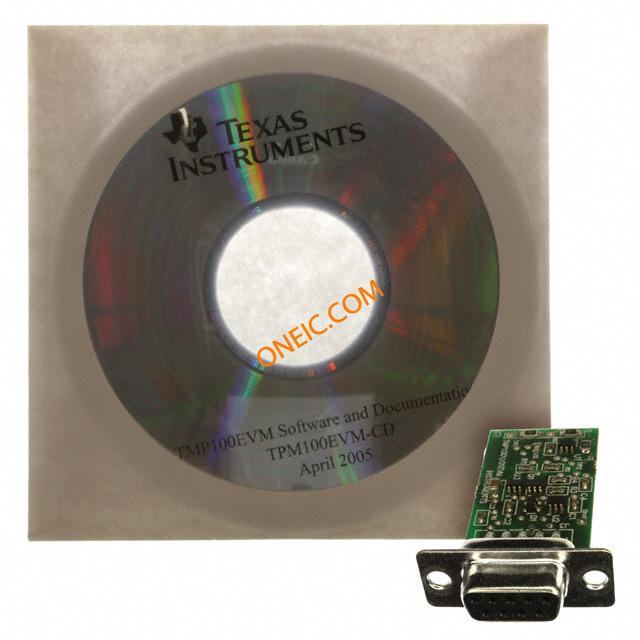

TMP100EVM
| 制造商 | Texas Instruments Incorporated |
| 描述 | Evaluation Module For TMP100 Temperature Sensor Development Tools TMP100 Eval Mod EVALUATION MODULE FOR TMP100 |
| 分类 |
商业参数
| 其他名称 | 296-21135 | 产品类别 | Temperature Sensor Development Tools |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | No | ||
电气参数
| 接口 | I²C, SMBus | 灵敏度 | ±0.5°C |
| 传感器类型 | Temperature | 感应范围 | -55°C ~ 125°C |
| 供电电压 | 2.7 V ~ 5.5 V | ||
机械参数
| 连接器用途 | I²C, SMBus | ||
产品信息
| 类型 | Development Kit | 内容 | Board, Software |
| 嵌入式 | No | 射频系列/标准 | TMP100 |
| 使用的IC/零件 | TMP100 | ||
环境参数
| 机械寿命 | Obsolete | ||
文档与媒体
相关型号
TMP100NA/250
texas instruments
Temp Sensor Digital Serial (2-Wire, I2C) 6-Pin SOT-23 T/R IC TEMP SENSOR DIGITAL SOT-23-6 Board Mount Temperature Sensors Digital Temp Sensor w/I2C Ser Interface IC, TEMPERATURE SENSOR Temperature Sensor with I2C/SMBus Interface in SOT-23 Temperature sensor SOT-23-6, TMP100, TMP100NA/250, Texas Instruments Texas Instruments , 12 位 温度传感器, ±1°C 串行 - I2C, 6针 SOT-23封装
TMP100NA/3K
texas instruments
Temp Sensor Digital Serial (2-Wire, I2C) 6-Pin SOT-23 T/R IC DIGITAL TEMP SENSOR SOT23-6 Board Mount Temperature Sensors Digital Temp Sensor w/I2C Ser Interface Temperature Sensor with I2C/SMBus Interface in SOT-23
TMP100MDBVREP
texas instruments
Temp Sensor Digital Serial (2-Wire, I2C) 6-Pin SOT-23 T/R IC DGTL TEMP SENSOR SOT23-6 Board Mount Temperature Sensors Mil Enhance Dig Temp Sensor IC, TEMP SENSOR, 12BIT, 0.5°C, SOT23-6 Enhanced Product, Temperature Sensor with I2C/SMBus Interface in SOT-23
TMP100NA/3KG4
texas instruments
Temp Sensor Digital Serial (2-Wire, I2C) 6-Pin SOT-23 T/R IC DIGITAL TEMP SENSOR SOT23-6 Board Mount Temperature Sensors Digital Temp Sensor w/I2C Ser Interface TEMPERATURE SENSOR, SOT-23-6, 100 Temperature Sensor with I2C/SMBus Interface in SOT-23
TMP100NA/250G4
texas instruments
Temp Sensor Digital Serial (2-Wire, I2C) 6-Pin SOT-23 T/R IC DIGITAL TEMP SENSOR SOT23-6 TMP100NA/250G4, 12bit Temperature Sensor ±1°C Serial-I2C 2.7 to 5.5V 6-Pin SOT-23 Board Mount Temperature Sensors Digital Temp Sensor w/I2C Ser Interface TEMP SENSOR DIGITAL, SOT-23-6, 100 Temperature Sensor with I2C/SMBus Interface in SOT-23
SN0312100DBVR
texas instruments
Temp Sensor Digital Serial (2-Wire, I2C) 6-Pin SOT-23 T/R SN0312100DBVR Board Mount Temperature Sensors Dig Temp Sensor Temperature Sensor with I2C/SMBus Interface in SOT-23
