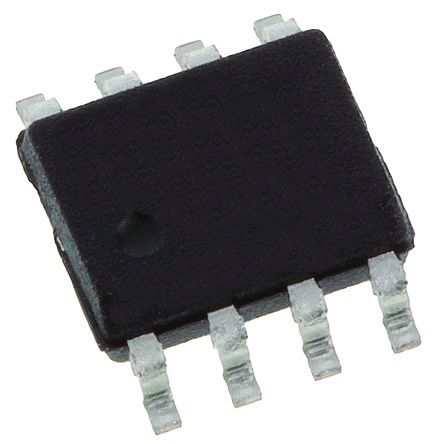

TLC272ID
| 制造商 | Texas Instruments Incorporated |
| 描述 | OP Amp Dual GP 16V 8-Pin SOIC Tube IC OPAMP GP 2.2MHZ 8SOIC TLC272ID, Dual Operational Amplifier 1.7MHz CMOS 5 to 15V, 8-Pin SOIC Operational Amplifiers - Op Amps LiNCMOS High Bias OP AMP, DUAL CMOS, SMD, SOIC8, 272 Dual Single Supply Operational Amplifier Operational Amplifier Dual 1.7 MHz SO-8, TLC272, TLC272ID, Texas Instruments Texas Instruments 双 运算放大器, 1.7MHz CMOS, 5 → 15 V, 8针 SOIC Precision Amplifiers LiNCMOS High Bias |
| 分类 |
商业参数
| 其他名称 | 296-1311-5 | 产品类别 | Operational Amplifiers - Op Amps |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 75 |
| 标准封装名称 | SOIC | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423300 |
| 零件状态 | :272 | 抗辐射加固 | No |
| 高可靠性 | Y | ||
电气参数
| 增益 | 87.23 dB | 压摆率 | 3.6@5V V/us |
| 1kHz噪声电压 | 25 | 输出类型 | CMOS |
| 失调漂移 | 1.8 | 输入功率 | Single |
| 额定功率 | 0.725 W | 晶体管类型 | :Precision |
| 共模抑制比、电源抑制比（典型） | 65 dB | 输出电流 | 1.4mA |
| 供电电流 | 3.2@5V mA | 供电电压 | 4 V |
| 供电类型 | Single | 通道数量 | 2 |
| 元件数量 | 2 | 输入偏置电流 | 0.7pA |
| 最大额定电流 | Military | ADC/DAC 数量 | :2 |
| 最小输入电压 | 1.1mV | 增益带宽积 | 1.7 MHz |
| 轨到轨工作 | No | 最大功耗 | 725 |
| 静态电流 (Iq) | 1.6 | 输入偏置电流（最大） | 0.00006@5V uA |
| 输出电流/通道 | 30mA | 输入失调电流（最大） | 0.00006@5V |
| 25°C失调电压 | 10 | 输入噪声电压密度 | 25@5V nV/rtHz |
| 电源电压范围（典型） | Not Required V | 输入失调电压（最大） | 10@5V mV |
| 电压输出差（典型值）@ 距离 | 87.23 dB | ||
机械参数
| 宽度 | 4(Max) | 重量 | 0.002561 oz |
| 带宽 | :2.6MHz | 包装方式 | Tube |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8SOIC | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 5(Max) |
| 包装数量 | SOIC | 位数 | 8 |
| 外壳尺寸-插件 | 1.5(Max) | 供应商器件封装 | 8-SOIC |
产品信息
| 类型 | General Purpose Amplifier | 系列 | TLC272 |
| 关断 | No | 软件 | SLOS091E |
| 基本单元 | :272 | 技术 | LinCMOS |
| 制造商全称 | Low Offset Voltage Amplifier | 放大器类型 | General Purpose |
| 图案编号 | Y | 电路数 | 2 |
| 使用的IC/零件 | View | 印刷电路板数量 | 8 |
环境参数
| 温度范围 | :Commercial | 测试温度 | -40 to 85 |
| 工作温度 | -40 to 85 °C | ||
