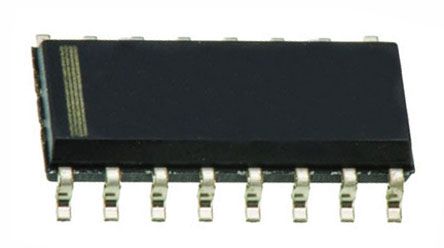

SN75LBC173D
| 制造商 | Texas Instruments Incorporated |
| 描述 | Quad Receiver RS-422/RS-423/RS-485 16-Pin SOIC Tube IC QUAD DIFF LINE RCVR 16-SOIC RS-422/RS-485 Interface IC Quad Diff Line Rec LINE RECEIVER, RS422/RS423/RS485, SOIC16 Quadruple Low-Power Differential Line Receiver , 四 EIA/TIA-422-B/ EIA/TIA-423-B/ RS-422/ RS-423/ RS-485/ V.10/ V.11 线路接收器, 10MBps, 差分信号, 5 V电源, 16针 SOIC封装 |
| 分类 |
商业参数
| 其他名称 | 296-6867-5 | 产品类别 | RS-422/RS-485 Interface IC |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 40 |
| 标准封装名称 | SOIC | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
| ESD保护 | No | 故障保护 | -10 to 15 |
电气参数
| 数据速率 | 10 Mbps | 接口 | EIA/TIA-422-B|EIA/TIA-423-B|RS-485|V.10|V.11 |
| 波特率 | 10 | 驱动类型 | 3-State |
| 短路失效 | Open | 输入信号 | Differential |
| 信号类型 | Not Required | 输入功率 | Single |
| 隔离电源 | No | 数据速率（最大） | Multidrop|Multipoint |
| 输出电流 | 20 mA | 供电电流 | 20 |
| 输入数量 | 4 | 供电电压 | 5 V |
| 输出数量 | 0 | 供电类型 | Single |
| 接收器迟滞 | RS-422|RS-423|RS-485 | 输入偏置电流 | 20 |
| 最大额定电流 | Catalog | 电源电压范围（典型） | Not Required V |
| 共模瞬态抗扰度（最小） | Commercial | ||
机械参数
| 宽度 | 4(Max) | 重量 | 0.004998 oz |
| 包装方式 | Tube | 封装体颜色 | :SOIC |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :16 |
| 封装形式 | 16SOIC | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 10(Max) |
| 包装数量 | SOIC | 位数 | 16 |
| 外壳尺寸-插件 | 1.5(Max) | 供应商器件封装 | 16-SOIC N |
产品信息
| 类型 | Receiver | 双工模式 | N/A |
| 系列 | SN75LBC173 | 已删除 | Compliant |
| 功能 | Line Receiver | 协议 | RS422, RS423, RS485 |
| 软件 | SLLS170E | 节点数 | 32 |
| 使用的IC/零件 | View | 接收器数量 | 4 |
| 印刷电路板数量 | 16 | 发射器数量 | Not Required |
| 驱动器/接收器数量 | 0/4 | 发射器/接收器数量 | Not Required |
环境参数
| 测试温度 | 0 to 70 | 工作温度 | 0°C ~ 70°C |
文档与媒体
相关型号
