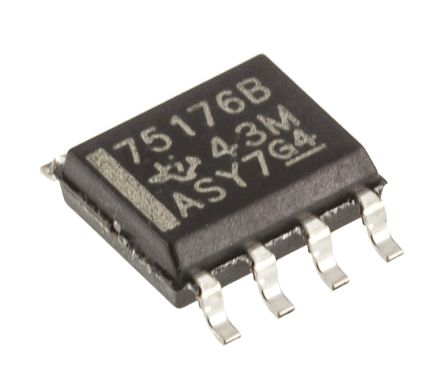

SN75176BD
| 制造商 | Texas Instruments Incorporated |
| 描述 | Single Transmitter/Receiver RS-422/RS-485 8-Pin SOIC Tube IC DIFF BUS TXCVR 8-SOIC SN75176BD, Line Transceiver Differential, 5V, 8-Pin SOIC RS-485 Interface IC Diff Bus Trans BUS TRANSCEIVER, RS422 / RS485, SOIC8 Line transmitter-receiver; RS485; 5VDC; SO8 Integrated circuit: transceiver; RS422 / RS485; SO8 Differential Bus Transceiver Logic IC 3-State / Differential / Transceiver SO-8, SN75176, SN75176BD, Texas Instruments Texas Instruments 线路收发器, 差分接收器信号, 5 V, 8针 SOIC封装 RS-422/RS-485 Interface IC Diff Bus Trans |
| 分类 |
商业参数
| 产品类别 | RS-485 Interface IC | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 75 | 标准封装名称 | SOIC |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | :75176 | 抗辐射加固 | No |
| ESD保护 | No | 故障保护 | -10 to 15 |
电气参数
| 数据速率 | 10 Mbps | 接口 | EIA/TIA-422-B|EIA/TIA-485-A|V.11|X.27 |
| 波特率 | 10 | 驱动类型 | 3-State |
| 短路失效 | None | 输入信号 | Differential |
| 信号类型 | Differential | 传输速率 | 1 |
| 输入功率 | Single | 隔离电源 | No |
| 数据速率（最大） | Multidrop|Multipoint | 输出电流 | 42 mA |
| 供电电流 | 70 | 驱动电路 | :Differential |
| 输入数量 | 1 | 供电电压 | 5 V |
| 输出数量 | 1 | 供电类型 | Single |
| 接收器迟滞 | RS-422|RS-485 | 输入偏置电流 | 70 |
| 最大额定电流 | Catalog | 电源电压范围（典型） | Not Required V |
| 每线接收器数量 | 32 | 共模瞬态抗扰度（最小） | Commercial |
机械参数
| 宽度 | 3.91mm | 高度 | 1.58mm |
| 长度 | 4.9mm | 重量 | 0.002561 oz |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8SOIC | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 5(Max) |
| 包装数量 | SOIC | 尺寸/外形 | 4.9 x 3.91 x 1.58mm |
| 变压器类型 | :Differential | 位数 | 8 |
| 外壳尺寸-插件 | 1.5(Max) | 供应商器件封装 | 8-SOIC |
产品信息
| SPG | 2500 | 类型 | Transceiver |
| 双工模式 | Half | 系列 | SN75176B |
| 已删除 | Compliant | 功能 | Line Transceiver |
| 协议 | RS422, RS485 | 关断 | Yes |
| 软件 | SLLS101F | 基本单元 | :75176 |
| 通信接口 | RS-422|RS-485 | 节点数 | 32 |
| 单元数量 | 1 | 驱动器数量 | 1 |
| 使用的IC/零件 | :SN75176BD | 接收器数量 | 1 |
| 印刷电路板数量 | 8 | 发射器数量 | 1 |
| 驱动器/接收器数量 | 1/1 | 发射器/接收器数量 | 1 |
环境参数
| 温度范围 | :Commercial | 测试温度 | 0 to 70 |
| 工作温度 | 0°C ~ 70°C | ||
